MXGA10L-GHXGH (2021)
Toyota Corolla Cross
(2103- )M20AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-24010 |
M20AFKS..MXGA10 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-24010 |
M20AFKS..MXGA10 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-24060 |
M20AFKS..MXGA10 |
1 | ||
| 23214A - PROTECTOR, FUEL PUMP | ||||
| 23214-F2010 |
M20AFKS..MXGA10 |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-25010 |
M20AFKS..MXGA10 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
M20AFKS..MXGA10 |
4 | ||
| 23250E - INJECTOR ASSY, FUEL(FOR DIRECT) | ||||
| 23209-2401001 |
M20AFKS..MXGA10..BZ MARK 1,REFER REPAIR MANUAL |
4 | ||
| 23209-2401004 |
M20AFKS..MXGA10..BZ MARK 4,REFER REPAIR MANUAL |
4 | ||
| 23209-2401003 |
M20AFKS..MXGA10..BZ MARK 3,REFER REPAIR MANUAL |
4 | ||
| 23209-2401008 |
M20AFKS..MXGA10..BZ MARK 8,REFER REPAIR MANUAL |
4 | ||
| 23209-2401009 |
M20AFKS..MXGA10..BZ MARK 9,REFER REPAIR MANUAL |
4 | ||
| 23209-2401002 |
M20AFKS..MXGA10..AGT,GEN MARK 2,REFER REPAIR MANUAL |
4 | ||
| 23209-2401003 |
M20AFKS..MXGA10..AGT,GEN MARK 3,REFER REPAIR MANUAL |
4 | ||
| 23209-2401006 |
M20AFKS..MXGA10..BZ MARK 6,REFER REPAIR MANUAL |
4 | ||
| 23209-2401008 |
M20AFKS..MXGA10..AGT,GEN MARK 8,REFER REPAIR MANUAL |
4 | ||
| 23209-2401007 |
M20AFKS..MXGA10..AGT,GEN MARK 7,REFER REPAIR MANUAL |
4 | ||
| 23209-2401004 |
M20AFKS..MXGA10..AGT,GEN MARK 4,REFER REPAIR MANUAL |
4 | ||
| 23209-2401009 |
M20AFKS..MXGA10..AGT,GEN MARK 9,REFER REPAIR MANUAL |
4 | ||
| 23209-2401007 |
M20AFKS..MXGA10..BZ MARK 7,REFER REPAIR MANUAL |
4 | ||
| 23209-2401005 |
M20AFKS..MXGA10..AGT,GEN MARK 5,REFER REPAIR MANUAL |
4 | ||
| 23209-2404001 |
M20AFKS..MXGA10..BZ MARK 1,REFER REPAIR MANUAL |
4 | ||
| 23209-2401001 |
M20AFKS..MXGA10..AGT,GEN MARK 1,REFER REPAIR MANUAL |
4 | ||
| 23209-2404003 |
M20AFKS..MXGA10..BZ MARK 3,REFER REPAIR MANUAL |
4 | ||
| 23209-2401006 |
M20AFKS..MXGA10..AGT,GEN MARK 6,REFER REPAIR MANUAL |
4 | ||
| 23209-2404002 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 2,REFER REPAIR MANUAL |
4 | ||
| 23209-2401002 |
M20AFKS..MXGA10..BZ MARK 2,REFER REPAIR MANUAL |
4 | ||
| 23209-2404003 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 3,REFER REPAIR MANUAL |
4 | ||
| 23209-2404004 |
M20AFKS..MXGA10..BZ MARK 4,REFER REPAIR MANUAL |
4 | ||
| 23209-2404004 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 4,REFER REPAIR MANUAL |
4 | ||
| 23209-2404005 |
M20AFKS..MXGA10..BZ MARK 5,REFER REPAIR MANUAL |
4 | ||
| 23209-2404007 |
M20AFKS..MXGA10..BZ MARK 7,REFER REPAIR MANUAL |
4 | ||
| 23209-2401005 |
M20AFKS..MXGA10..BZ MARK 5,REFER REPAIR MANUAL |
4 | ||
| 23209-2404002 |
M20AFKS..MXGA10..BZ MARK 2,REFER REPAIR MANUAL |
4 | ||
| 23209-2404008 |
M20AFKS..MXGA10..BZ MARK 8,REFER REPAIR MANUAL |
4 | ||
| 23209-2404001 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 1,REFER REPAIR MANUAL |
4 | ||
| 23209-2404006 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 6,REFER REPAIR MANUAL |
4 | ||
| 23209-2404005 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 5,REFER REPAIR MANUAL |
4 | ||
| 23209-2404009 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 9,REFER REPAIR MANUAL |
4 | ||
| 23209-2404006 |
M20AFKS..MXGA10..BZ MARK 6,REFER REPAIR MANUAL |
4 | ||
| 23209-2404008 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 8,REFER REPAIR MANUAL |
4 | ||
| 23209-2404009 |
M20AFKS..MXGA10..BZ MARK 9,REFER REPAIR MANUAL |
4 | ||
| 23209-2404007 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC,MARK 7,REFER REPAIR MANUAL |
4 | ||
| 23250F - INJECTOR ASSY, FUEL(FOR PORT) | ||||
| 23209-29155 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
4 | ||
| 23209-29165 |
M20AFKS..MXGA10..AGT,GEN |
4 | ||
| 23209-29155 |
M20AFKS..MXGA10..BZ |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-25010 |
M20AFKS..MXGA10 |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-25010 |
M20AFKS..MXGA10 |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-47010 |
M20AFKS..MXGA10..AGT,GEN |
4 | ||
| 23258-24010 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
4 | ||
| 23258-47010 |
M20AFKS..MXGA10..BZ |
4 | ||
| 23258-24010 |
M20AFKS..MXGA10..BZ |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
M20AFKS..MXGA10 |
4 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
M20AFKS..MXGA10 |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-25010 |
M20AFKS..MXGA10 |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-F2020 |
M20AFKS..MXGA10 |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-24010 |
M20AFKS..MXGA10..AGT,GEN |
4 | ||
| 23695-25010 |
M20AFKS..MXGA10..BZ |
4 | ||
| 23695-24010 |
M20AFKS..MXGA10..BZ |
4 | ||
| 23695-25010 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-24070 |
M20AFKS..MXGA10 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-24020 |
M20AFKS..MXGA10 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-24010 |
M20AFKS..MXGA10 |
1 | ||
| 23825 - GUARD, FUEL DELIVERY | ||||
| 23825-24010 |
M20AFKS..MXGA10 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-24040 |
M20AFKS..MXGA10 |
1 | ||
| 23841K - CLAMP, FUEL PIPE | ||||
| 23841-25040 |
M20AFKS..MXGA10 |
1 | ||
| 23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI) | ||||
| 23847-24010 |
M20AFKS..MXGA10 |
1 | ||
| 23851 - HOLDER, FUEL PRESSURE SENSOR, NO.1 | ||||
| 23851-25020 |
M20AFKS..MXGA10 |
1 | ||
| 23851A - HOLDER, FUEL PRESSURE SENSOR, NO.2 | ||||
| 23851-25030 |
M20AFKS..MXGA10 |
1 | ||
| 23891 - SPACER, FUEL DELIVERY | ||||
| 23891-24010 |
M20AFKS..MXGA10 |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-F2050 |
M20AFKS..MXGA10 |
1 | ||
| 23910A - TUBE SUB-ASSY, FUEL | ||||
| 23901-24071 |
M20AFKS..MXGA10 |
1 | ||
| Common parts | ||||
| 90105-06350 | ||||
| 90105-06351 | ||||
| 90105-06352 | ||||
| 90105-08510 | ||||
| 90301-05013 | ||||
| 90301-31016 | ||||
| 90520-14004 | ||||
| 91551-G0840 | ||||
| 91553-G1040 | ||||

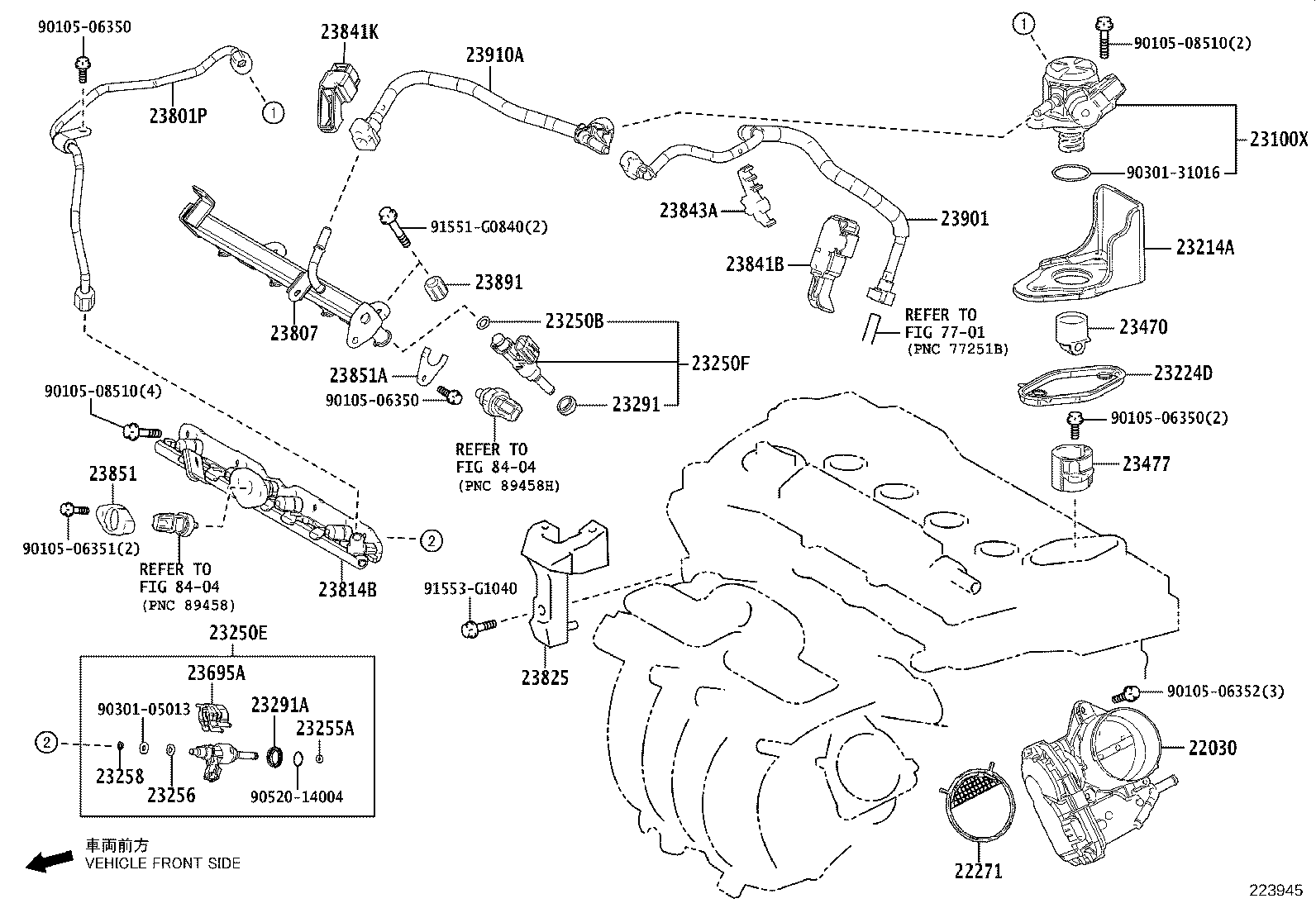

| Linked diagrams | ||||
| 7701 | ||||
| 8404 | ||||
