MXGA10L-GHXGH (2021)
Toyota Corolla Cross

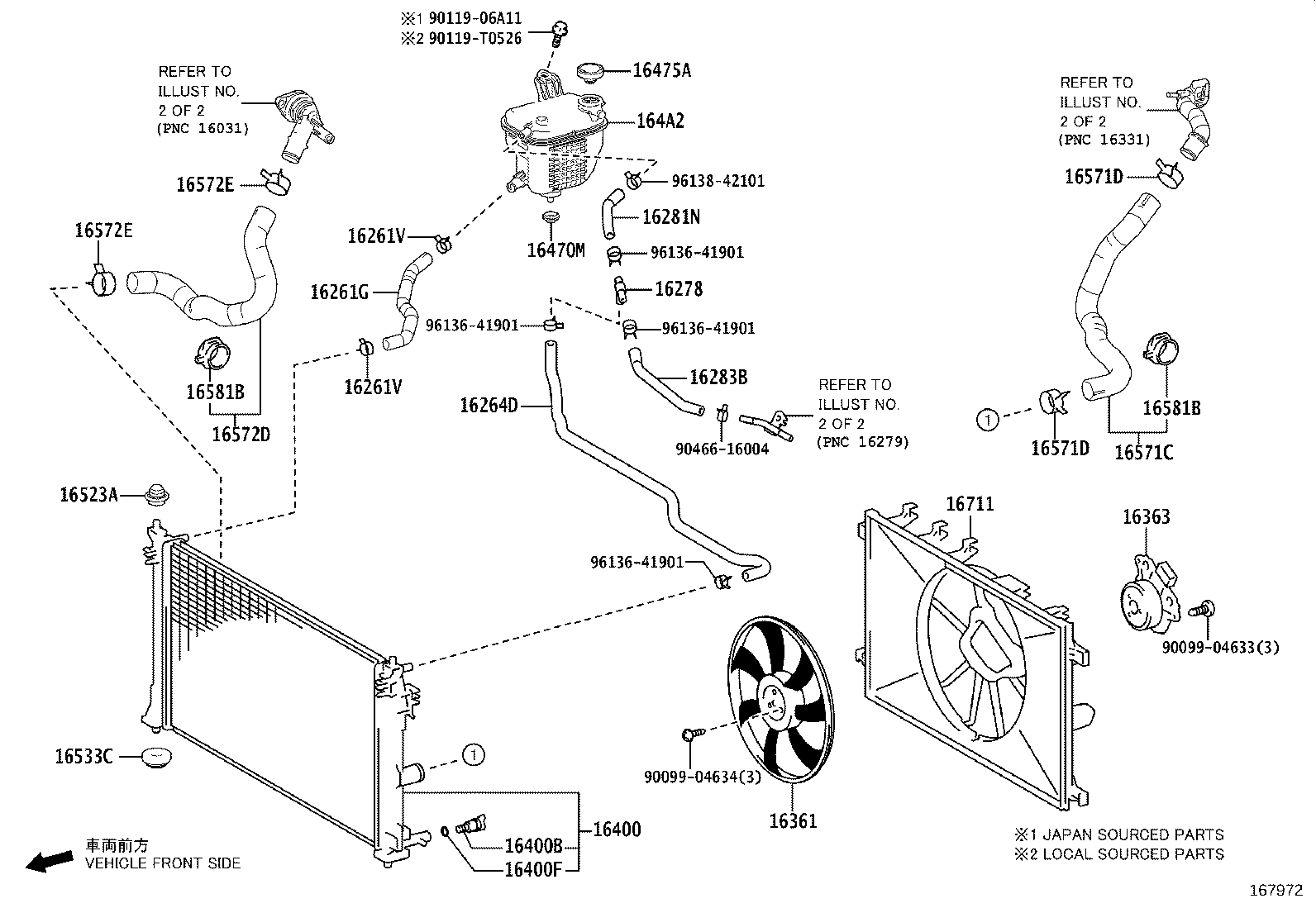

ILLUST NO. 1 OF 2(2103- )M20AFKS
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-F2150 |
M20AFKS..MXGA10 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-F2100 |
M20AFKS..MXGA10 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-37100 |
M20AFKS..MXGA10 |
1 | ||
| 16281N - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-F2070 |
M20AFKS..MXGA10 |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16296-F2070 |
M20AFKS..MXGA10 |
1 | ||
| 16361 - FAN | ||||
| 16361-F2110 |
M20AFKS..MXGA10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-24110 |
M20AFKS..MXGA10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-F2060 |
M20AFKS..MXGA10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
M20AFKS..MXGA10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
M20AFKS..MXGA10 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
M20AFKS..MXGA10 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
M20AFKS..MXGA10 |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-0T090 |
M20AFKS..MXGA10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T140 |
M20AFKS..MXGA10 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
M20AFKS..MXGA10 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-F2070 |
M20AFKS..MXGA10 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0067 |
M20AFKS..MXGA10 (L) |
2 | ||
| 96136-44301 |
M20AFKS..MXGA10 (J) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0067 |
M20AFKS..MXGA10 (L) |
2 | ||
| 96136-44301 |
M20AFKS..MXGA10 (J) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-F2060 |
M20AFKS..MXGA10 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0067 |
M20AFKS..MXGA10 (L) |
2 | ||
| 96136-44301 |
M20AFKS..MXGA10 (J) |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0067 |
M20AFKS..MXGA10 (L) |
2 | ||
| 96136-44301 |
M20AFKS..MXGA10 (J) |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-28070 |
M20AFKS..MXGA10 |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-28070 |
M20AFKS..MXGA10 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-F2100 |
M20AFKS..MXGA10 |
1 | ||
| Common parts | ||||
| 90099-04633 | ||||
| 90099-04634 | ||||
| 90119-06A11 | ||||
| 90119-T0526 | ||||
| 90466-16004 | ||||
| 96136-41901 | ||||
| 96138-42101 | ||||

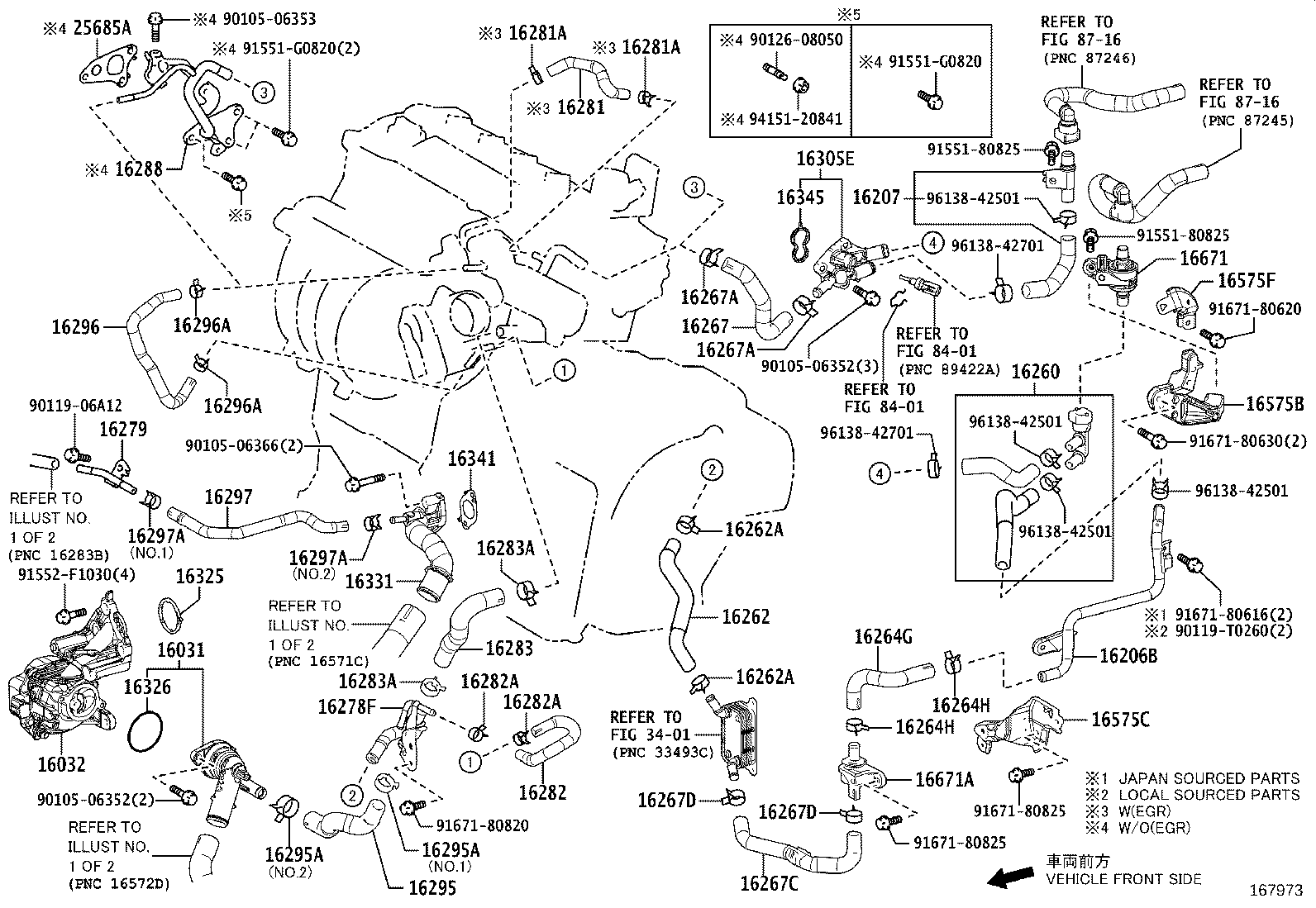

ILLUST NO. 2 OF 2(2103- )M20AFKS
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-24011 |
M20AFKS..MXGA10 |
1 | ||
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16207-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-24020 |
M20AFKS..MXGA10 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-24080 |
M20AFKS..MXGA10 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-F2050 |
M20AFKS..MXGA10 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-F2150 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
1 | ||
| 16267-F2150 |
M20AFKS..MXGA10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
M20AFKS..MXGA10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
M20AFKS..MXGA10 |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16278F - HOSE, WATER BY-PASS, NO.2 | ||||
| 16278-F2020 |
M20AFKS..MXGA10 |
1 | ||
| 16278-F2020 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-F2020 |
M20AFKS..MXGA10 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-F2100 |
M20AFKS..MXGA10..AGT,GEN |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
M20AFKS..MXGA10..AGT,GEN |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
M20AFKS..MXGA10..AGT,GEN |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-F2040 |
M20AFKS..MXGA10 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
M20AFKS..MXGA10 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
M20AFKS..MXGA10 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F2020 |
M20AFKS..MXGA10 |
1 | ||
| 16283-F2020 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
M20AFKS..MXGA10 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-24011 |
M20AFKS..MXGA10..BZ |
1 | ||
| 16288-24011 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-F2020 |
M20AFKS..MXGA10 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96138-42501 |
M20AFKS..MXGA10 NO.1:REFER ILLUST. |
1 | ||
| 96138-42701 |
M20AFKS..MXGA10 NO.2:REFER ILLUST. |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96138-42501 |
M20AFKS..MXGA10 NO.1:REFER ILLUST. |
1 | ||
| 96138-42701 |
M20AFKS..MXGA10 NO.2:REFER ILLUST. |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-F2080 |
M20AFKS..MXGA10 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
M20AFKS..MXGA10 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
M20AFKS..MXGA10 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-F2020 |
M20AFKS..MXGA10 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96138-41501 |
M20AFKS..MXGA10 NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
M20AFKS..MXGA10 NO.1:REFER ILLUST. |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96138-41501 |
M20AFKS..MXGA10 NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
M20AFKS..MXGA10 NO.1:REFER ILLUST. |
1 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-25010 |
M20AFKS..MXGA10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
M20AFKS..MXGA10 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-F2050 |
M20AFKS..MXGA10 (L) |
1 | ||
| 16331-24030 |
M20AFKS..MXGA10 (J) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-24050 |
M20AFKS..MXGA10 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-F2200 |
M20AFKS..MXGA10 |
1 | ||
| 16575F - BRACKET, WATER HOSE CLAMP, NO.3 | ||||
| 16575-24060 |
M20AFKS..MXGA10 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24010 |
M20AFKS..MXGA10 |
1 | ||
| 16671A - VALVE, WATER, NO.2 | ||||
| 16671-24020 |
M20AFKS..MXGA10 |
1 | ||
| 25685A - GASKET, EGR COOLER | ||||
| 25685-25011 |
M20AFKS..MXGA10..BZ |
1 | ||
| 25685-25011 |
M20AFKS..MXGA10..GEN PARAGUAY SPEC |
1 | ||
| Common parts | ||||
| 90105-06352 | ||||
| 90105-06353 | ||||
| 90105-06366 | ||||
| 90119-06A12 | ||||
| 90119-T0260 | ||||
| 90126-08050 | ||||
| 91551-80825 | ||||
| 91551-G0820 | ||||
| 91552-F1030 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80630 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 94151-20841 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||
