MXGA10L-GHXEHH (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine M20AFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )MXGA10..E ; (2103- )ZVG10..BZP

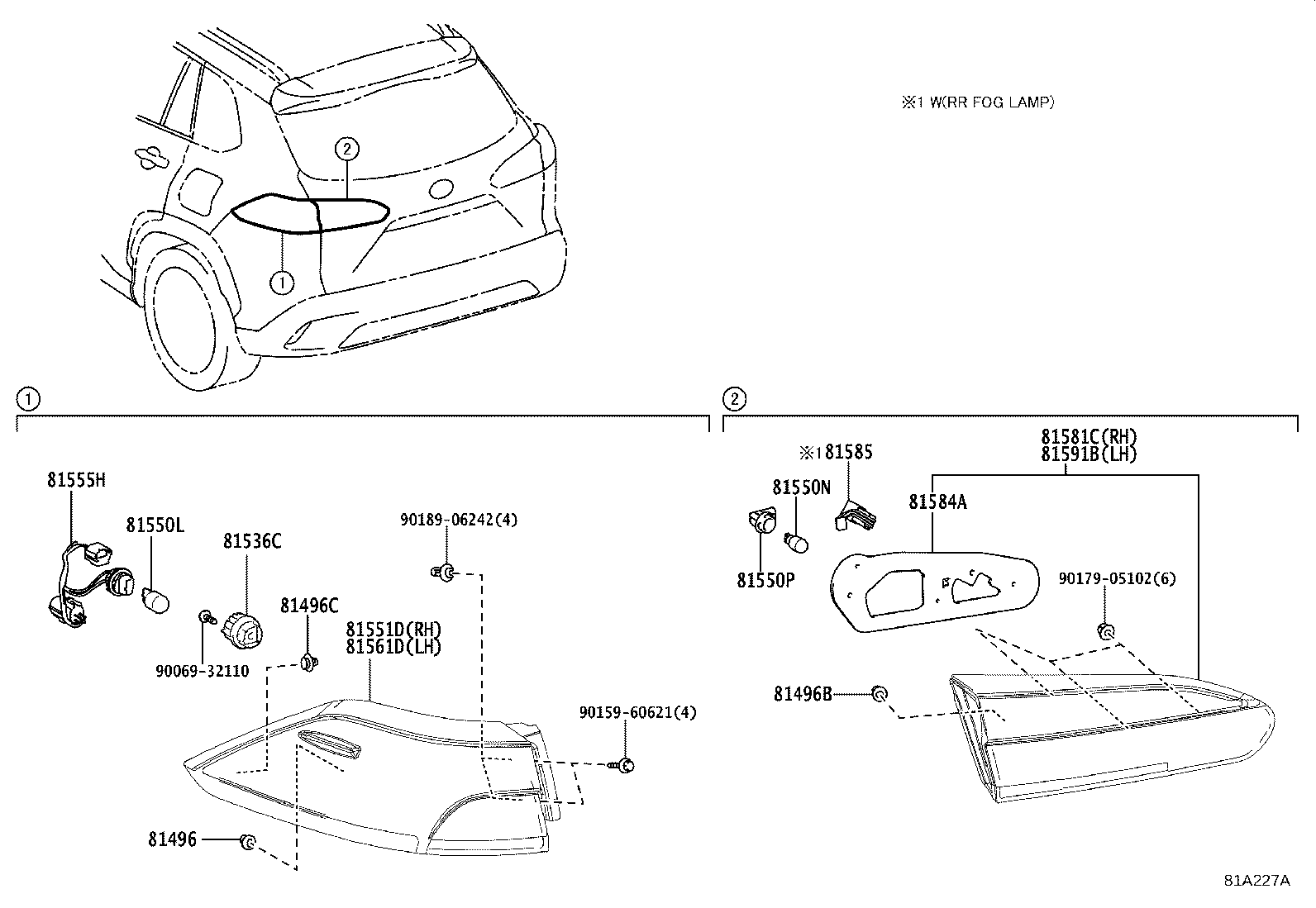

Click highlighted areas on diagram

diagram 81496 81496B 81496C 81536E 81550L 81550N 81550P 81551D 81555H 81561D 81581C 81584A 81585 81591B 9006932110 9015960621 9017905102 9018906242
Part # Description Qty Price
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

MXGA10,ZSG10,ZVG10

 2
81536E - LED, STOP LAMP
81536-52D50

MXGA10..E;ZVG10..BZP

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

MXGA10,ZVG10..BZP

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

MXGA10,ZSG10,ZVG10

12V 16W

 2
81550P - SOCKET, BACK UP LAMP
90980-11159

MXGA10,ZVG10..BZP

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0A110

MXGA10..E;ZVG10..BZP

 1
81551-0A100

MXGA10..G,N

 1
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81585-0A100

MXGA10..G,N

 2
81585-0A110

MXGA10..E;ZVG10..BZP

 2
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0A110

MXGA10..E;ZVG10..BZP

 1
81561-0A100

MXGA10..G,N

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-0A070

MXGA10..G,N

 1
81581-0A090

MXGA10..E;ZVG10..BZP

 1
81584A - GASKET, REAR LAMP RH
81584-0A070

MXGA10,ZVG10..BZP

 2
81591B - LENS AND BODY, REAR LAMP, LH
81591-0A100

ZVG10..AGT,BZ;MXGA10..E..(AGT,BZ)

 1
81591-0A080

MXGA10..G..(AGT,BZ)

 1
Common parts
90069-32110
90159-60621
90179-05102
90189-06242

(2103- )MXGA10..G,N

Click highlighted areas on diagram

diagram 81496 81496B 81496C 81536C 81550L 81550N 81550P 81551D 81555H 81561D 81581C 81584A 81585 81591B 9006932110 9015960621 9017905102 9018906242
Part # Description Qty Price
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

MXGA10,ZSG10,ZVG10

 2
81536C - LED, TAIL & STOP LAMP
81536-52D50

MXGA10..G,N

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

MXGA10,ZVG10..BZP

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

MXGA10,ZSG10,ZVG10

12V 16W

 2
81550P - SOCKET, BACK UP LAMP
90980-11159

MXGA10,ZVG10..BZP

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0A110

MXGA10..E;ZVG10..BZP

 1
81551-0A100

MXGA10..G,N

 1
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81585-0A100

MXGA10..G,N

 2
81585-0A110

MXGA10..E;ZVG10..BZP

 2
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0A110

MXGA10..E;ZVG10..BZP

 1
81561-0A100

MXGA10..G,N

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-0A070

MXGA10..G,N

 1
81581-0A090

MXGA10..E;ZVG10..BZP

 1
81584A - GASKET, REAR LAMP RH
81584-0A070

MXGA10,ZVG10..BZP

 2
81591B - LENS AND BODY, REAR LAMP, LH
81591-0A100

ZVG10..AGT,BZ;MXGA10..E..(AGT,BZ)

 1
81591-0A080

MXGA10..G..(AGT,BZ)

 1
Common parts
90069-32110
90159-60621
90179-05102
90189-06242

(2106- )L,M

Click highlighted areas on diagram

diagram 81496 81496B 81496C 81536C 81550 81550L 81550M 81550N 81550P 81551D 81560 81561D 81581C 81584A 81591B 81594A 9015960621 9017905102 9018906242
Part # Description Qty Price
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

MXGA10,ZSG10,ZVG10

 2
81536C - LED, TAIL & STOP LAMP
81536-52D50

MXGA10..G,N

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

MXGA10,ZVG10..BZP

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

MXGA10,ZSG10,ZVG10

12V 16W

 2
81550P - SOCKET, BACK UP LAMP
90980-11159

MXGA10,ZVG10..BZP

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0A110

MXGA10..E;ZVG10..BZP

 1
81551-0A100

MXGA10..G,N

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0A110

MXGA10..E;ZVG10..BZP

 1
81561-0A100

MXGA10..G,N

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-0A070

MXGA10..G,N

 1
81581-0A090

MXGA10..E;ZVG10..BZP

 1
81584A - GASKET, REAR LAMP RH
81584-0A070

MXGA10,ZVG10..BZP

 2
81591B - LENS AND BODY, REAR LAMP, LH
81591-0A100

ZVG10..AGT,BZ;MXGA10..E..(AGT,BZ)

 1
81591-0A080

MXGA10..G..(AGT,BZ)

 1
Common parts
90159-60621
90179-05102
90189-06242
