MXGA10L-GHXEHH (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine M20AFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )MXGA10

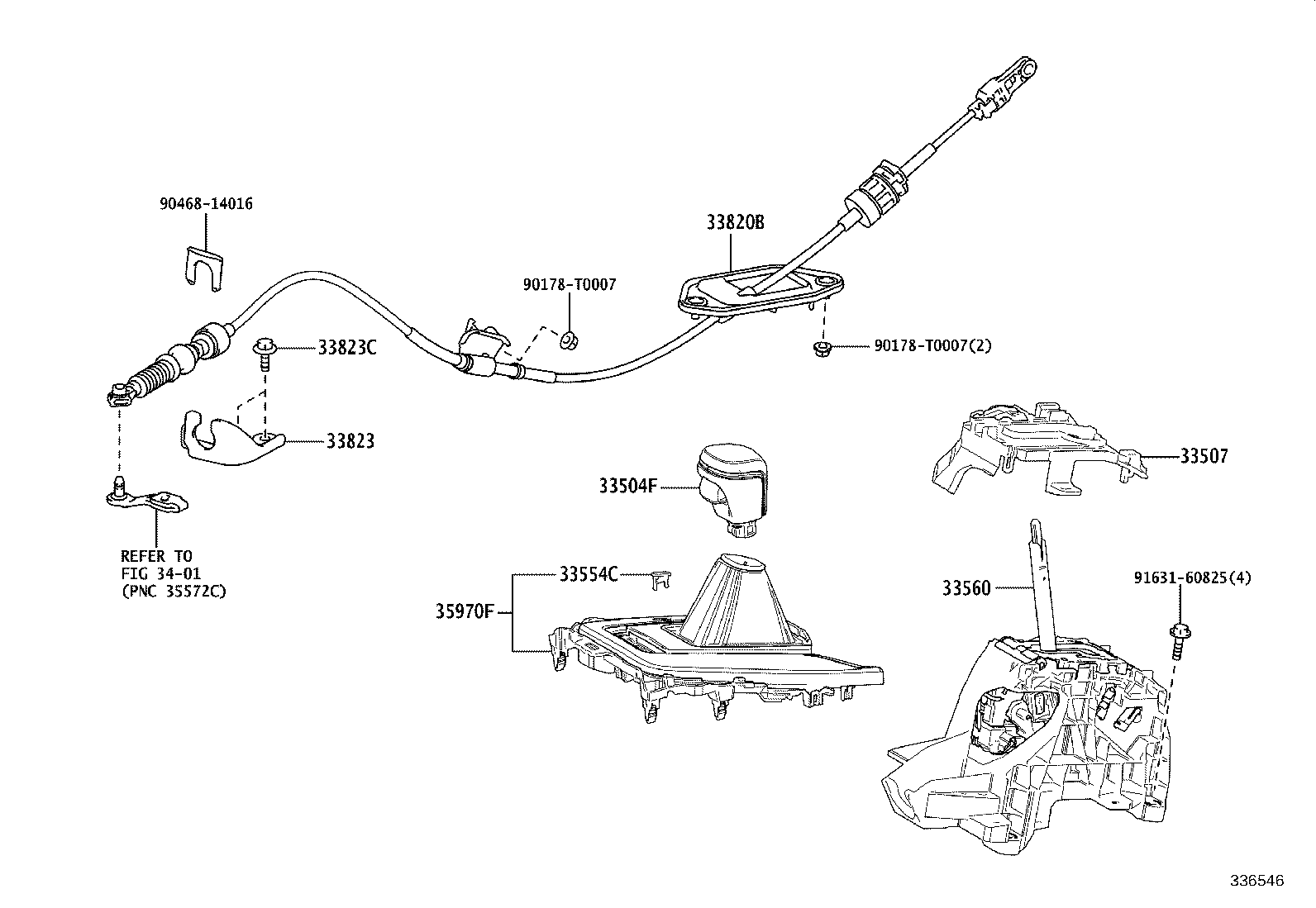

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33823 33823C 3401 35970F 90178T0007 90178T0007 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12800C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
33504-33170C0

MXGA10..N;MXGA10..G..AGT

BLACK,TRIM2#

 1
33504-12800C0

ZVG10..G..AGT;MXGA10..G..(BZ,GEN)

BLACK,TRIM2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02060

MXGA10,ZVG10..BZP

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02260

MXGA10,ZVG10..BZP

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-02580

MXGA10..G,N;MXGA10..E..(AGT,GEN)

 1
33560-02590

MXGA10..E..BZ

 1
33560-02590

MXGA10..E..AGT

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0A060

MXGA10

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12310

MXGA10

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02240C1

MXGA10..E

BLACK,TRIM0#,2#

 1
35970-02240C1

MXGA10..G,N

BLACK,TRIM2#

 1
Common parts
90178-T0007
90468-14016
91631-60825
Linked diagrams
3401
