MXGA10L-GHXEHH (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine M20AFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )M20AFKS

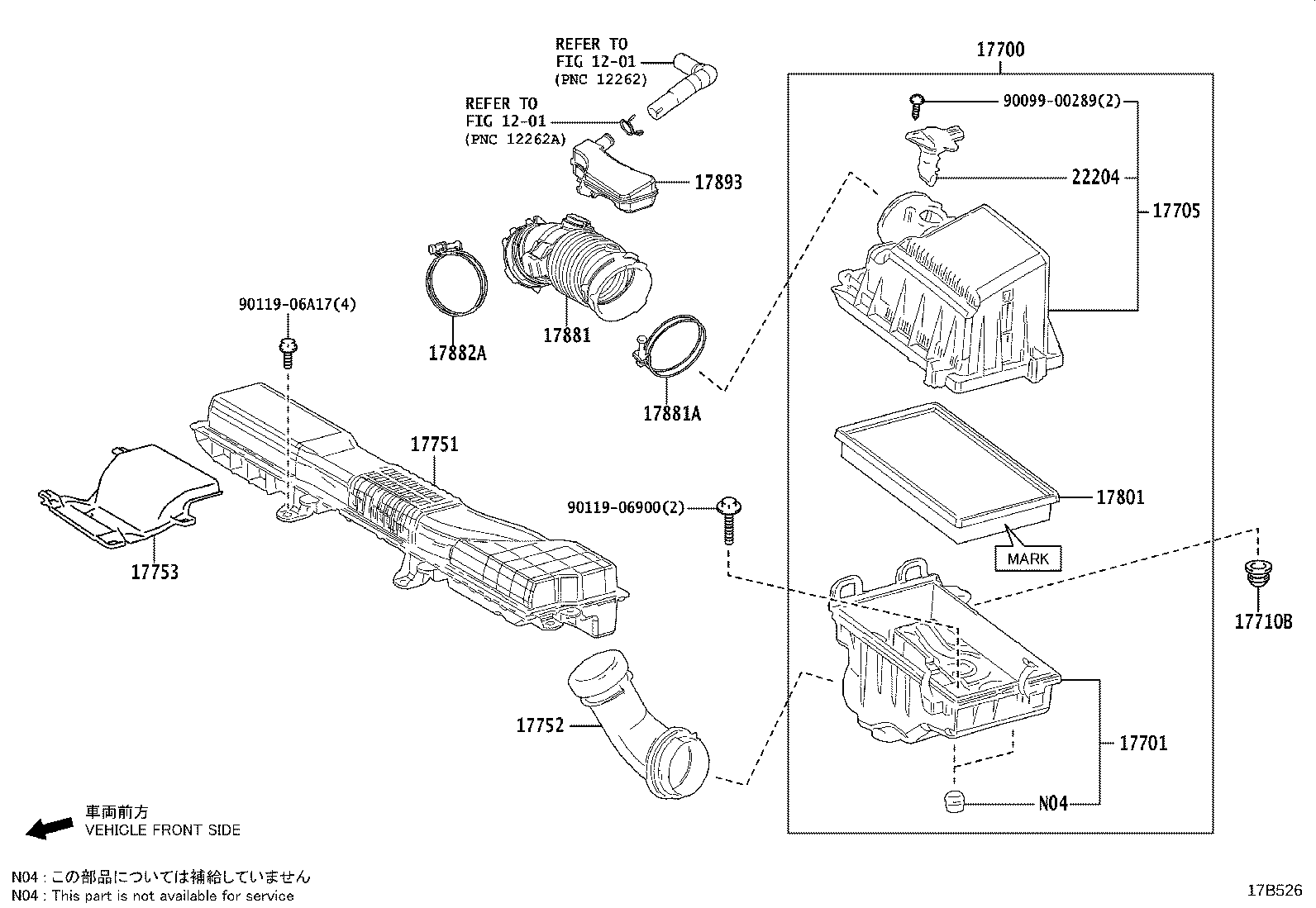

Click highlighted areas on diagram

diagram 1201 1201 17700 17701 17705 17710B 17751 17752 17753 17801 17881 17881A 17882A 17893 22204 9009900289 9011906900 9011906A17
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-F2090

M20AFKS..MXGA10

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-F2060

M20AFKS..MXGA10

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-F2080

M20AFKS..MXGA10

 1
17710B - GROMMET
90480-18006

M20AFKS..MXGA10

 1
17751 - INLET, AIR CLEANER, NO.1
17751-24010

M20AFKS..MXGA10

 1
17752 - INLET, AIR CLEANER, NO.2
17752-24050

M20AFKS..MXGA10

 1
17753 - INLET, AIR CLEANER, NO.3
17753-0T100

M20AFKS..MXGA10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-F0030

M20AFKS..MXGA10

MARK 17801-F0030

 1
17801-77050

M20AFKS..MXGA10

MARK 17801-77050

 1
17801-F0020

M20AFKS..MXGA10

MARK 17801-F0020

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-24050

M20AFKS..MXGA10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

M20AFKS..MXGA10

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

M20AFKS..MXGA10

 1
17893 - RESONATOR, INTAKE AIR
17893-24020

M20AFKS..MXGA10

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

M20AFKS..MXGA10

 1
Common parts
90099-00289
90119-06900
90119-06A17
Linked diagrams
1201
