MXGA10L-GHXEHG (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
M20AFKS
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )M20AFKS

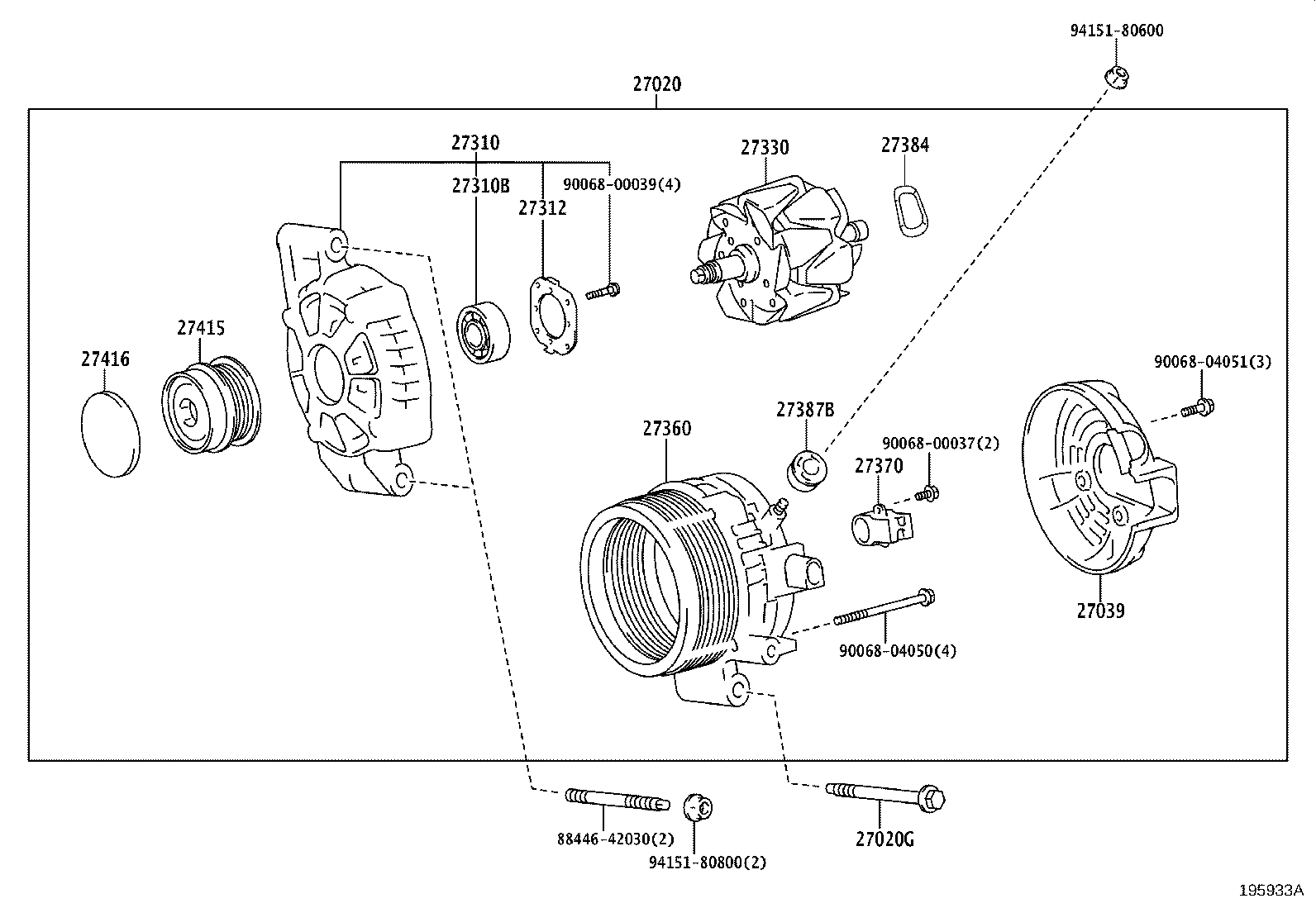

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-F2110 |
M20AFKS..MXGA10 12V 100A |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90119-08C78 |
M20AFKS..MXGA10 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0T300 |
M20AFKS..MXGA10 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-F2050 |
M20AFKS..MXGA10 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10051 |
M20AFKS..MXGA10 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0T300 |
M20AFKS..MXGA10 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-F2050 |
M20AFKS..MXGA10 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-F2050 |
M20AFKS..MXGA10 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0T300 |
M20AFKS..MXGA10 |
1 | ||
| 27384 - WASHER | ||||
| 27384-0V170 |
M20AFKS..MXGA10 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0T300 |
M20AFKS..MXGA10 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-F2050 |
M20AFKS..MXGA10 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
M20AFKS,2ZRFBE,2ZRFE..MXGA10,ZSG10..BZP,THP |
1 | ||
| Common parts | ||||
| 88446-42030 | ||||
| 90068-00037 | ||||
| 90068-00039 | ||||
| 90068-04050 | ||||
| 90068-04051 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
