MXGA10L-GHXEH (2021)
Toyota Corolla Cross
(2103- )BZP

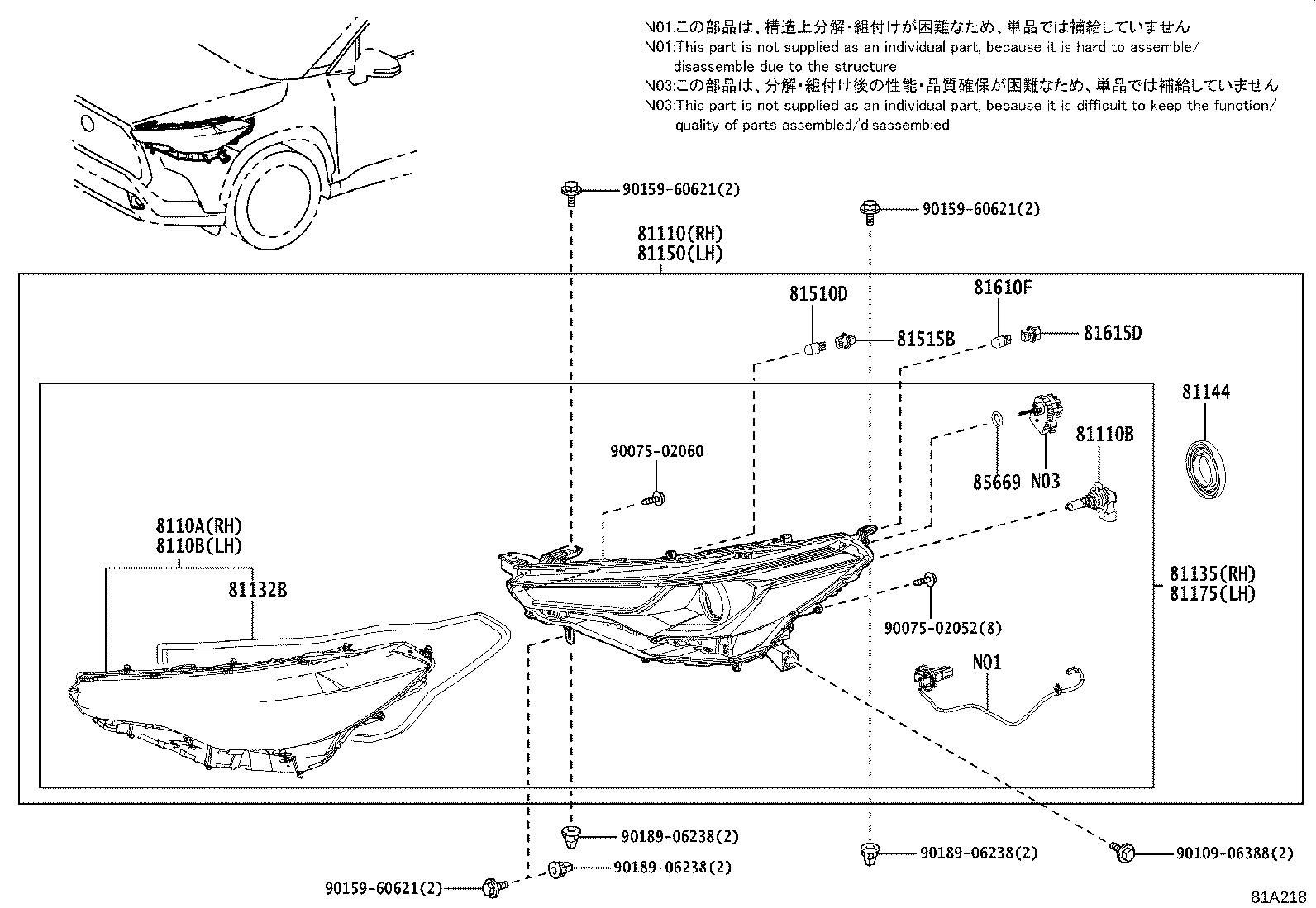

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-0A150 |
MXGA10..G,N |
1 | ||
| 8110A-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 8110B-0A150 |
MXGA10..G,N |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0A160 |
MXGA10..E |
1 | ||
| 81110-0A150 |
MXGA10..G,N |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
ZVG10..G..GCC;ZSG10..TWP..(J,M,N);ZVG10..N..(GCC,GEN,TAIW);MXGA10,ZSG10..(BZP,THP)..(G,N) 12V 55W,HALOGEN |
2 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-0KN10 |
MXGA10,ZVG10..BZP |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0A150 |
MXGA10..G,N |
1 | ||
| 81105-0A160 |
MXGA10..E |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ZVG10..N..GEN;MXGA10,ZSG10..(BZP,THP)..(G,N) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0A150 |
MXGA10..G,N |
1 | ||
| 81150-0A160 |
MXGA10..E |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0A150 |
MXGA10..G,N |
1 | ||
| 81106-0A160 |
MXGA10..E |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZVG10..G..GCC;ZSG10..TWP..(J,M,N);ZVG10..N..(GCC,GEN,TAIW);MXGA10,ZSG10..(BZP,THP)..(G,N) 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZVG10..G..GCC;ZSG10..TWP..(J,M,N);ZVG10..N..(GCC,GEN,TAIW);MXGA10,ZSG10..(BZP,THP)..(G,N) |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-13088 |
ZVG10..G..GCC;ZSG10..TWP..(J,M,N);ZVG10..N..(GCC,GEN,TAIW);MXGA10,ZSG10..(BZP,THP)..(G,N) 12V 21/5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60086 |
ZVG10..G..GCC;ZSG10..TWP..(J,M,N);ZVG10..N..(GCC,GEN,TAIW);MXGA10,ZSG10..(BZP,THP)..(G,N) |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MXGA10,ZSG10,ZVG10..BZP,THP |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(2103- )BZP

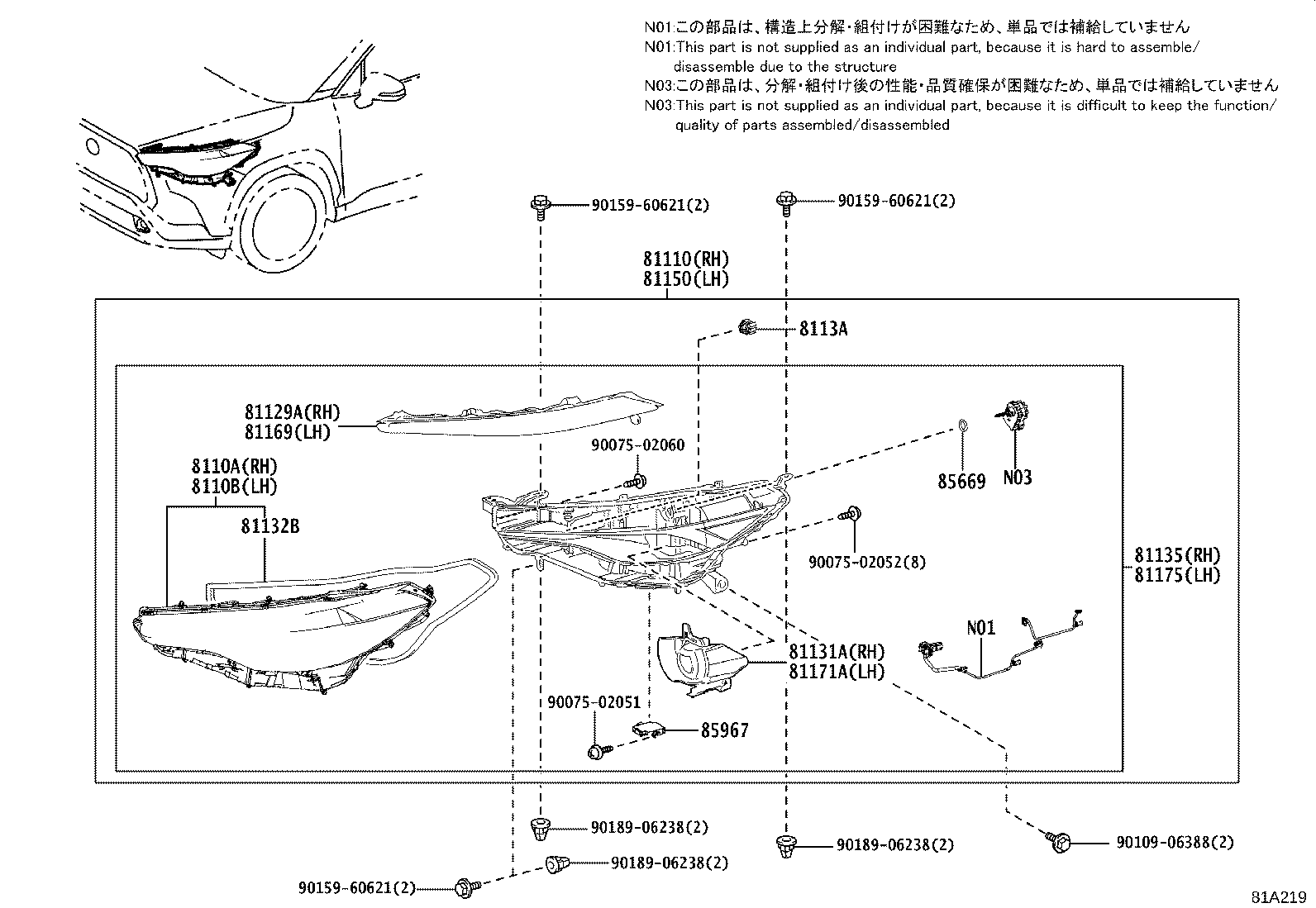

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-0A150 |
MXGA10..G,N |
1 | ||
| 8110A-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 8110B-0A150 |
MXGA10..G,N |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0A160 |
MXGA10..E |
1 | ||
| 81110-0A150 |
MXGA10..G,N |
1 | ||
| 81129A - REFLECTOR, HEADLAMP, RH | ||||
| 81129-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-0KN10 |
MXGA10,ZVG10..BZP |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0A150 |
MXGA10..G,N |
1 | ||
| 81105-0A160 |
MXGA10..E |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 81536-12D30 |
ZVG10..N..TH;ZSG10..TWP..G;ZVG10..E..GCC;MXGA10,ZSG10..E;ZVG10..(E,G,L,M)..(AGT,BZ,GEN,IDN,MA,PH,TAIW,TH,VN) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0A150 |
MXGA10..G,N |
1 | ||
| 81150-0A160 |
MXGA10..E |
1 | ||
| 81169 - REFLECTOR, HEADLAMP, LH | ||||
| 81169-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-0A160 |
MXGA10..E;ZVG10..BZP |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0A150 |
MXGA10..G,N |
1 | ||
| 81106-0A160 |
MXGA10..E |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
MXGA10,ZSG10,ZVG10..BZP,THP |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-12050 |
MXGA10..E;ZVG10..BZP |
2 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
