MXGA10L-GHXEH (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
M20AFKS
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )BZP

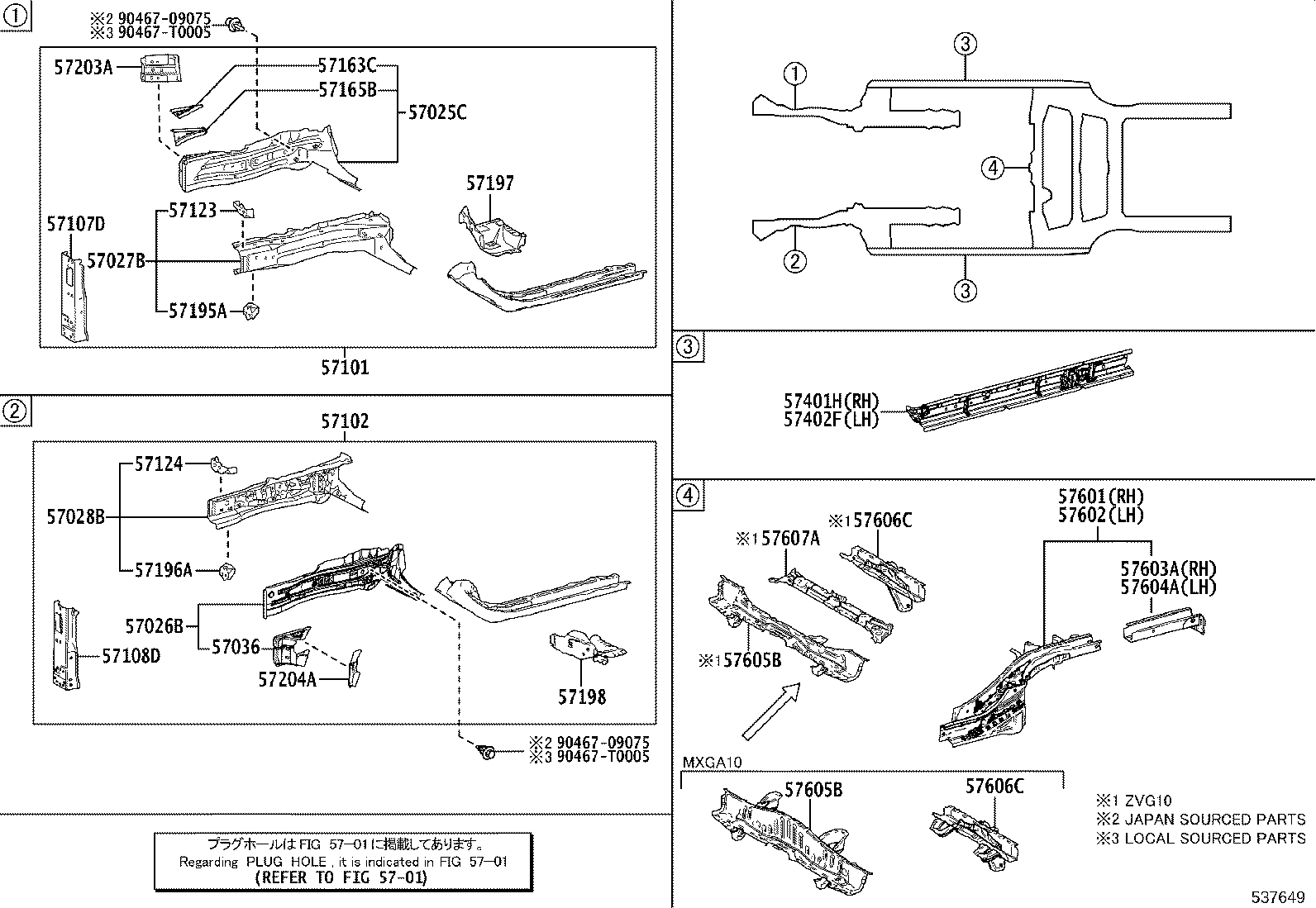

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-02100 |
MXGA10,ZVG10..BZP |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-02120 |
MXGA10,ZVG10..BZP |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-02130 |
MXGA10,ZVG10..BZP |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-02140 |
MXGA10,ZVG10..BZP |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-02600 |
MXGA10,ZVG10..BZP |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-02810 |
MXGA10,ZVG10..BZP |
1 | ||
| 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-02140 |
MXGA10,ZVG10..BZP |
1 | ||
| 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-02140 |
MXGA10,ZVG10..BZP |
1 | ||
| 57123 - SUPPORT, FRONT SIDE MEMBER, RH | ||||
| 57123-02100 |
MXGA10,ZVG10..BZP |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-02100 |
MXGA10,ZVG10..BZP |
1 | ||
| 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-02130 |
MXGA10,ZVG10..BZP |
1 | ||
| 57165B - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH | ||||
| 57165-02170 |
MXGA10,ZVG10..BZP |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-02100 |
MXGA10,ZVG10..BZP |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-02110 |
MXGA10,ZVG10..BZP |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-02170 |
MXGA10,ZVG10..BZP |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02170 |
MXGA10,ZVG10..BZP |
1 | ||
| 57203A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57215-02060 |
MXGA10,ZVG10..BZP |
1 | ||
| 57204A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57204-02080 |
MXGA10,ZVG10..BZP |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0A050 |
MXGA10..BZ |
1 | ||
| 57602-0A050 |
MXGA10..GEN PARAGUAY SPEC&ENGINE-M20A-FKB |
1 | ||
| 57602-0A060 |
ZVG10..BZP;MXGA10..AGT,GEN |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0A050 |
MXGA10 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0A050 |
MXGA10 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0A060 |
MXGA10 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0A060 |
MXGA10 |
1 | ||
| Common parts | ||||
| 90467-09075 | ||||
| 90467-T0005 | ||||
| Linked diagrams | ||||
| 5701 | ||||
