MXGA10L-GHXEH (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine M20AFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )MXGA10

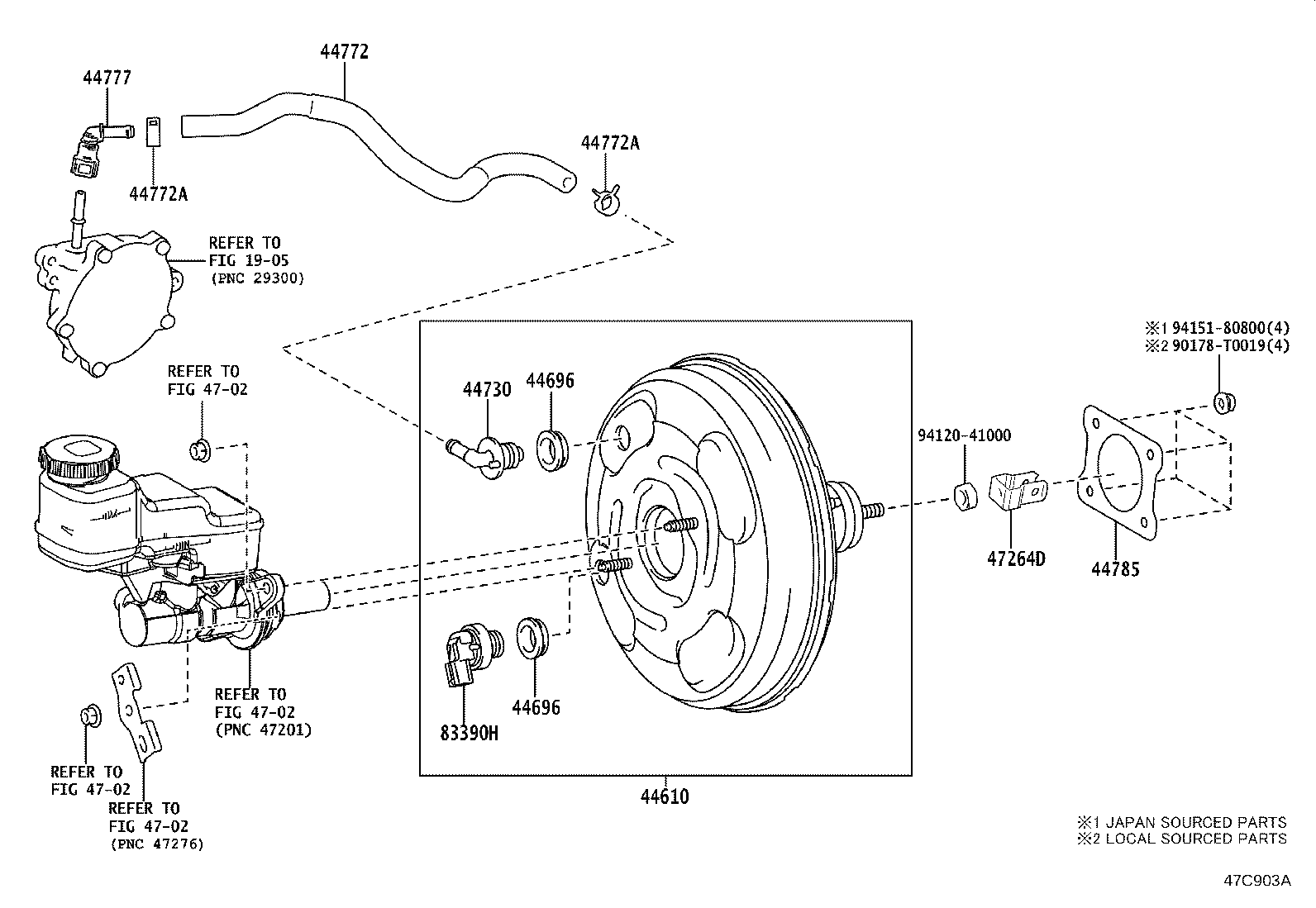

Click highlighted areas on diagram

diagram 1905 44610 44696 44696 44730 44772 44772A 44772A 44777 44785 4702 4702 4702 4702 47264D 83390H 90178T0019 9412041000 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0A050

MXGA10

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MXGA10

 2
44696 - GROMMET, CHECK VALVE
90480-24439

MXGA10

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010

MXGA10

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12780

MXGA10

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

MXGA10

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

MXGA10

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-12010

MXGA10

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

MXGA10,ZSG10

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-12060

MXGA10,ZSG10..BZP,THP

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

MXGA10

 1
Common parts
90178-T0019
94120-41000
94151-80800
Linked diagrams
1905
4702
