EE90R-AHKRS (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Aug 1989
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE90..RHD

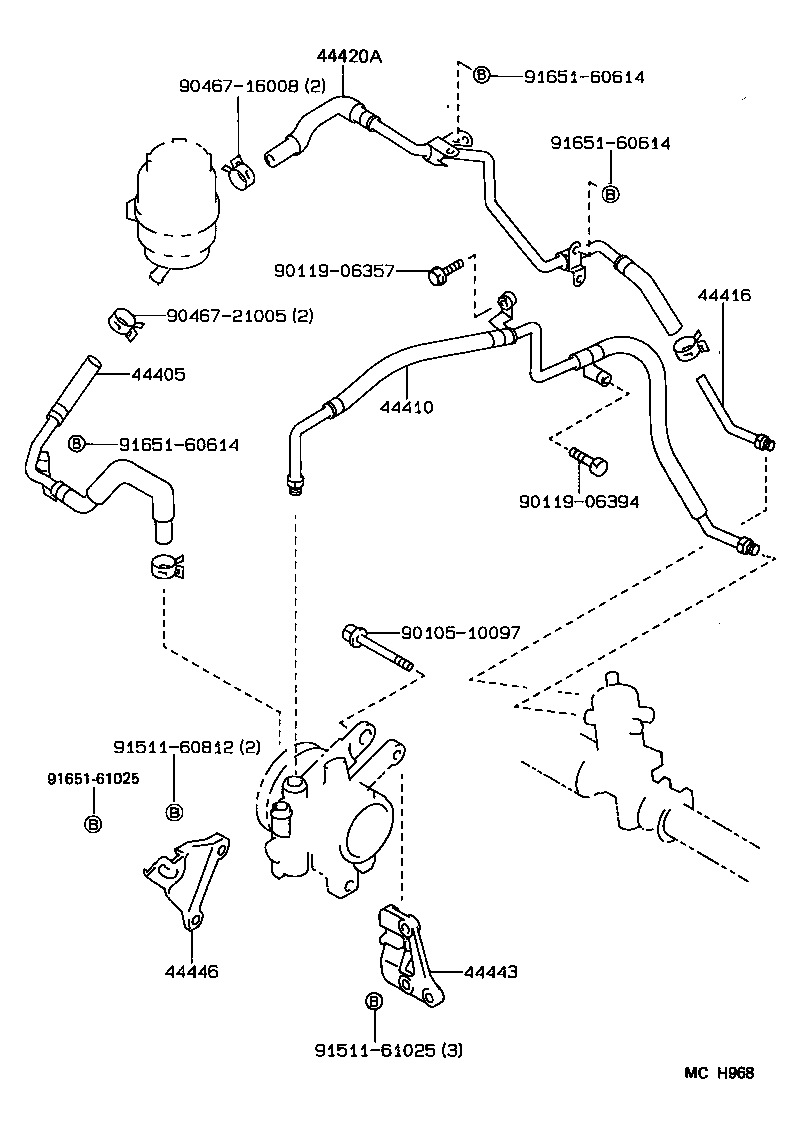

Click highlighted areas on diagram

diagram 44405 44410 44416 44420A 44443 44446 9010510097 9011906357 9011906394 9046716008 9046721005 9151160812 9151161025 9165160614 9165160614 9165160614 9165161025
Part # Description Qty Price
44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1
44405-12031

EE90..GCC,GEN

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-12280

EE90..GCC,GEN

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12170

EE90..RHD..GEN;AE92..RHD..(GT,GTI)

 1
44420A - TUBE ASSY, RETURN
44420-12010

EE90..RHD..GEN

 1
44443 - BRACKET, PUMP
44443-12070

EE90..GCC,GEN

 1
44446 - STRUT, ADJUSTING
44446-12050

EE90..GCC,GEN

 1
Common parts
90105-10097
90119-06357
90119-06394
90467-16008
90467-21005
91511-60812
91511-61025
91651-60614
91651-61025
