EE90R-AGMDS (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Aug 1989
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D

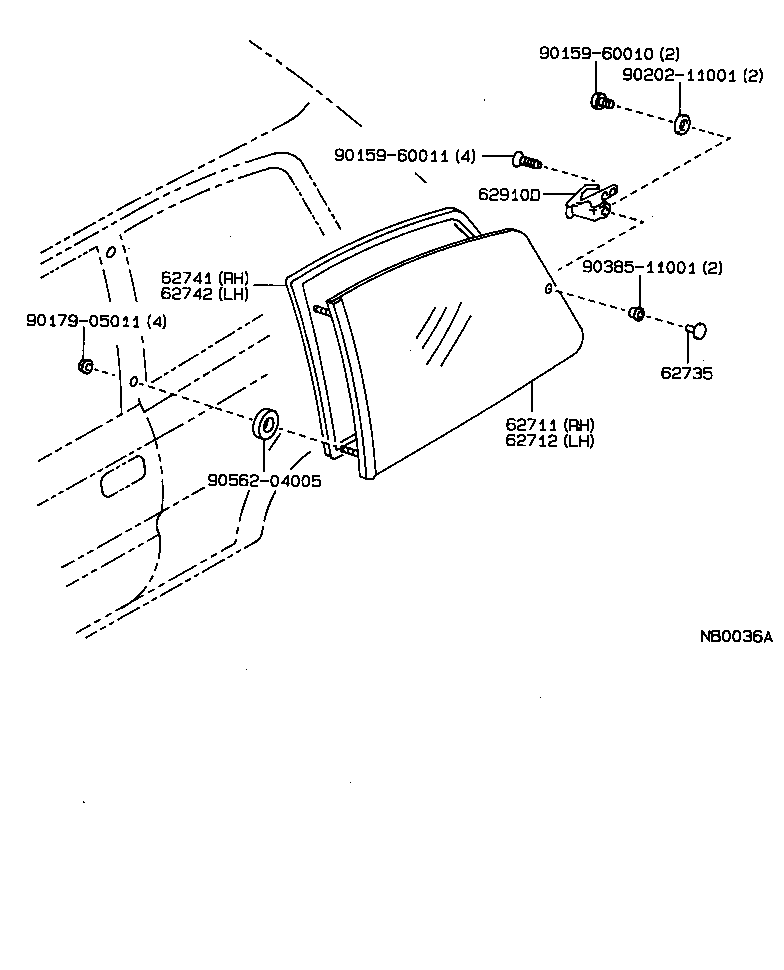

Click highlighted areas on diagram

diagram 62711 62712 62735 62741 62742 62910D 9015960010 9015960011 9017905011 9020211001 9038511001 9056204005
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62071-12180

EE90..3D..XL

*TT,T=4.0

 1
62071-12200

EE90..3D

*TEM,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62072-12180

EE90..3D..XL

*TT,T=4.0

 1
62072-12200

EE90..3D

*TEM,T=4.0

 1
62735 - RETAINER, QUARTER WINDOW HINGE
62735-14010

AE92,EE90..3D

 2
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-12150

AE92,EE90..3D

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-12150

AE92,EE90..3D

 1
62910D - LOCK ASSY, QUARTER WINDOW
62910-12090

AE92,EE90..3D

 2
Common parts
90159-60010
90159-60011
90179-05011
90202-11001
90385-11001
90562-04005
