EE90L-AHMNS (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Aug 1989
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )2E

Click highlighted areas on diagram

diagram 04211 04212 21100 21901 21911 21911 9033903005 9321914008 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-11050

2E..EE90..GEN,SA

 1
04211-11070

2E..EE90..GEN

W(POWER STEERING)

 1
04212 - GASKET KIT, CARBURETOR
04212-10020

2E..EE90..GEN,SA;2E..EE90..4F..GCC

 1
04212-10030

2E..EE90..3FC..GEN;2E..EE90..LHD..MTM

W(POWER STEERING)

 1
21100 - CARBURETOR ASSY
21100-11450

2E..EE90..MTM..GEN

W(POWER STEERING)

 1
21100-11211

2E..EE90..MTM..GEN

 1
21100-11212

2E..EE90..MTM..(GEN,SA)

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-10040

2E..EE90..GEN,SA

 1
Common parts
90339-03005
93219-14008
94110-40800

(8705-8908)2E

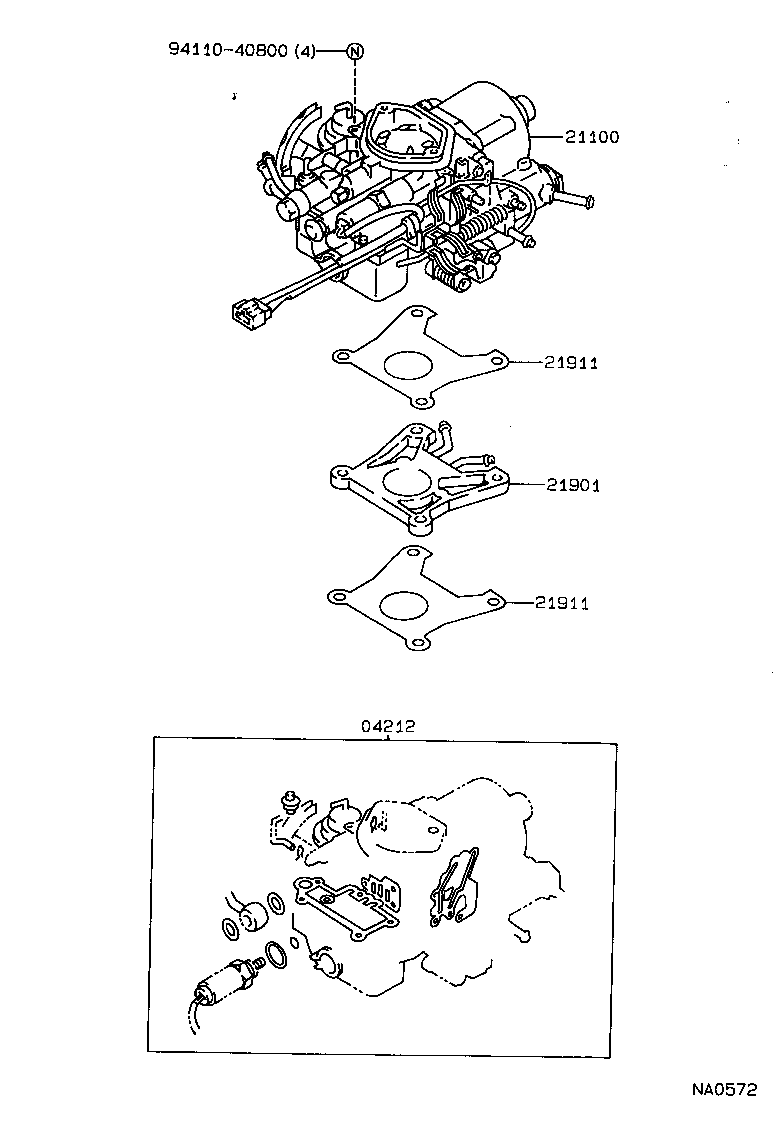

Click highlighted areas on diagram

NEW ZEALAND SPEC

diagram 04212 21100 21901 21911 21911 9411040800
Part # Description Qty Price
04212 - GASKET KIT, CARBURETOR
04212-10020

2E..EE90..GEN,SA;2E..EE90..4F..GCC

 1
04212-10030

2E..EE90..3FC..GEN;2E..EE90..LHD..MTM

W(POWER STEERING)

 1
21100 - CARBURETOR ASSY
21100-11450

2E..EE90..MTM..GEN

W(POWER STEERING)

 1
21100-11211

2E..EE90..MTM..GEN

 1
21100-11212

2E..EE90..MTM..(GEN,SA)

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-10040

2E..EE90..GEN,SA

 1
Common parts
94110-40800
