EE90L-AHMDSV (1990)

Toyota Corolla Cp/Hb

Production Aug 1990 - Jul 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D,5D

Click highlighted areas on diagram

FOR FRONT BUMPER TYPE E,F

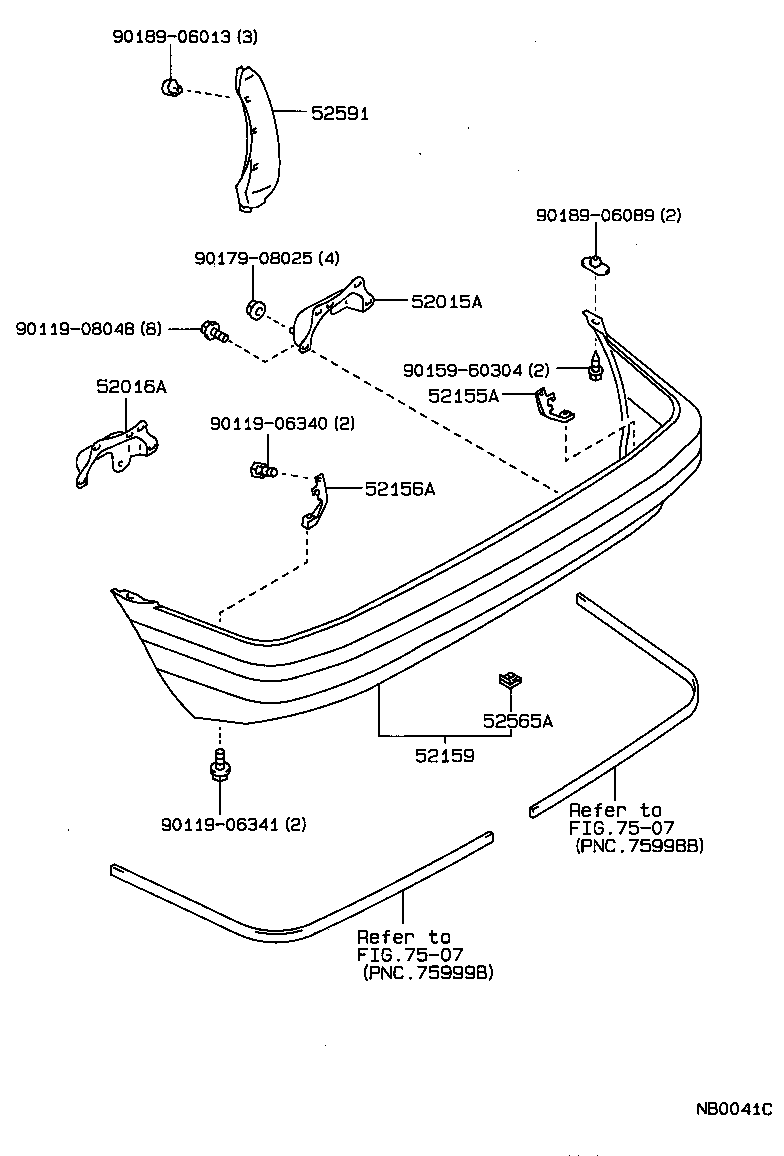

diagram 52015A 52016A 52155A 52156A 52159 52565A 52591 7507 7507 9011906340 9011906341 9011908048 9015960304 9017908025 9018906013 9018906089
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52181-12310

AE92,EE90..3D,5D

W(FRONT BUMPER TYPE E OR TYPE F)

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52182-12260

AE92,EE90..3D,5D

W(FRONT BUMPER TYPE E OR TYPE F)

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12170

AE92,EE90..3D,5D

W(FRONT BUMPER TYPE E OR TYPE F)

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12160

AE92,EE90..3D,5D

W(FRONT BUMPER TYPE E OR TYPE F)

 1
52159 - COVER, REAR BUMPER
52105-12050

AE92,EE90..(3D,5D)..(GCC,GEN)

W(FRONT BUMPER TYPE E OR TYPE F)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE92,EE90

 8
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12060

AE92,EE90..3D,5D

 1
Common parts
90119-06340
90119-06341
90119-08048
90159-60304
90179-08025
90189-06013
90189-06089
Linked diagrams
7507
