EE90L-AHMDSV (1990)
Toyota Corolla Cp/Hb
Production
Aug 1990
-
Jul 1992
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

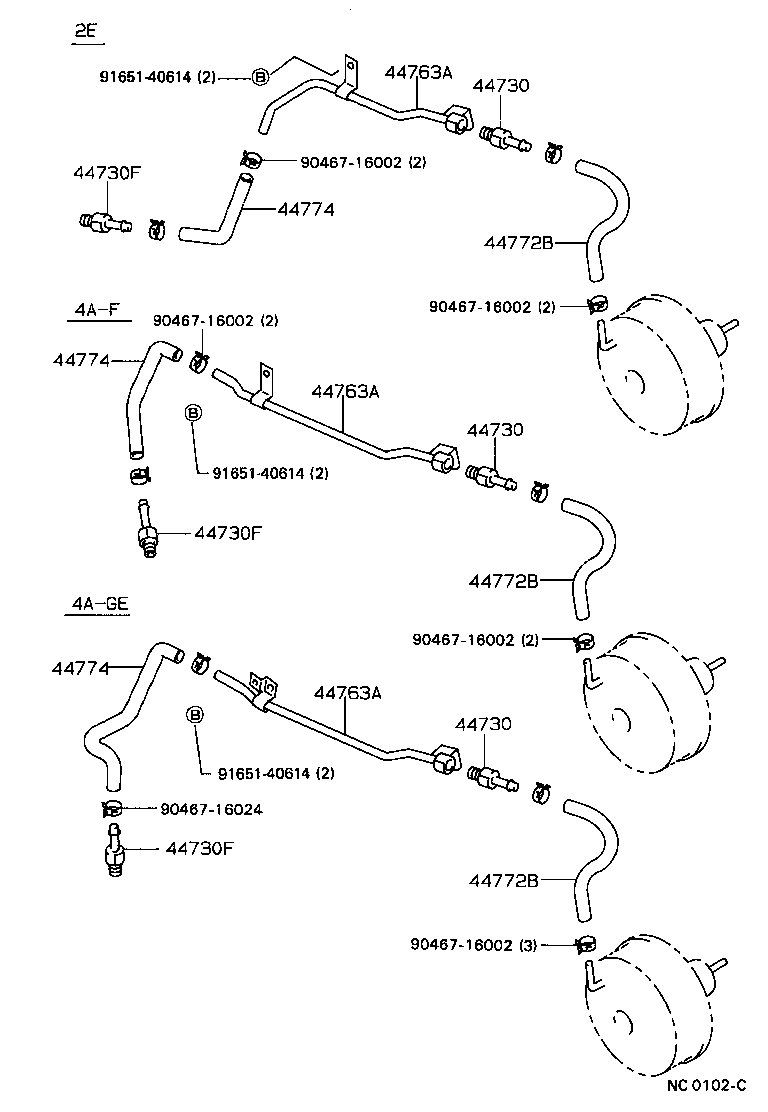

ILLUST NO. 2 OF 2(8705- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE90 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE90 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE90 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12080 |
EE90..LHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12080 |
EE90..LHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12080 |
EE90..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12330 |
AE92,EE90..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12330 |
AE92,EE90..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12330 |
AE92,EE90..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12100 |
EE90..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12100 |
EE90..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12100 |
EE90..LHD |
1 | ||
| Common parts | ||||
| 90467-16002 | ||||
| 90467-16024 | ||||
| 91651-40614 | ||||

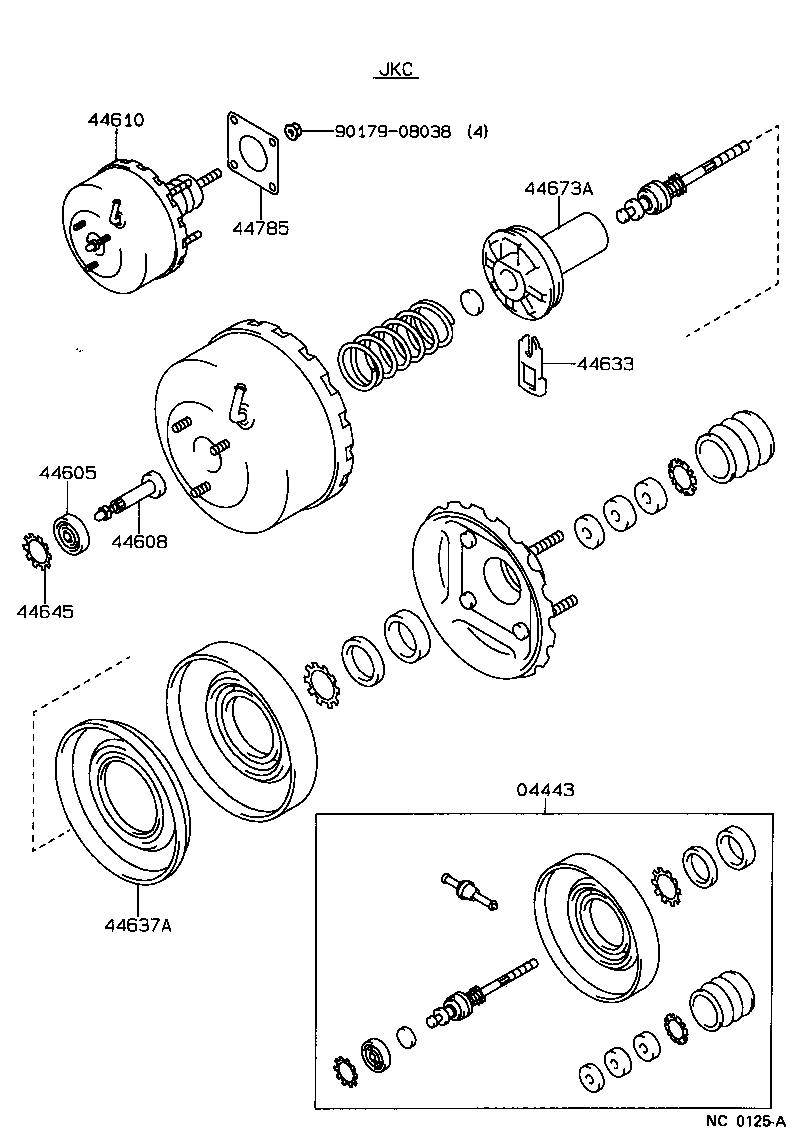

ILLUST NO. 1 OF 2(8705- )GCC,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12570 |
EE90..GCC,GEN;AE92..LHD..(SR5,XL) |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
AE92,EE90..GCC,GEN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AE92,EE90..GCC,GEN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12690 |
AE92,EE90..LHD..(GL,SR5,STD,XL) |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AE92,EE90..GCC,GEN |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AE92,EE90..GCC,GEN |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
AE92,EE90..(GL,SR5,STD,XL)..(GCC,GEN) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
