EE90L-AHMDSV (1990)

Toyota Corolla Cp/Hb

Production Aug 1990 - Jul 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE90..STD,XL..GCC,GEN

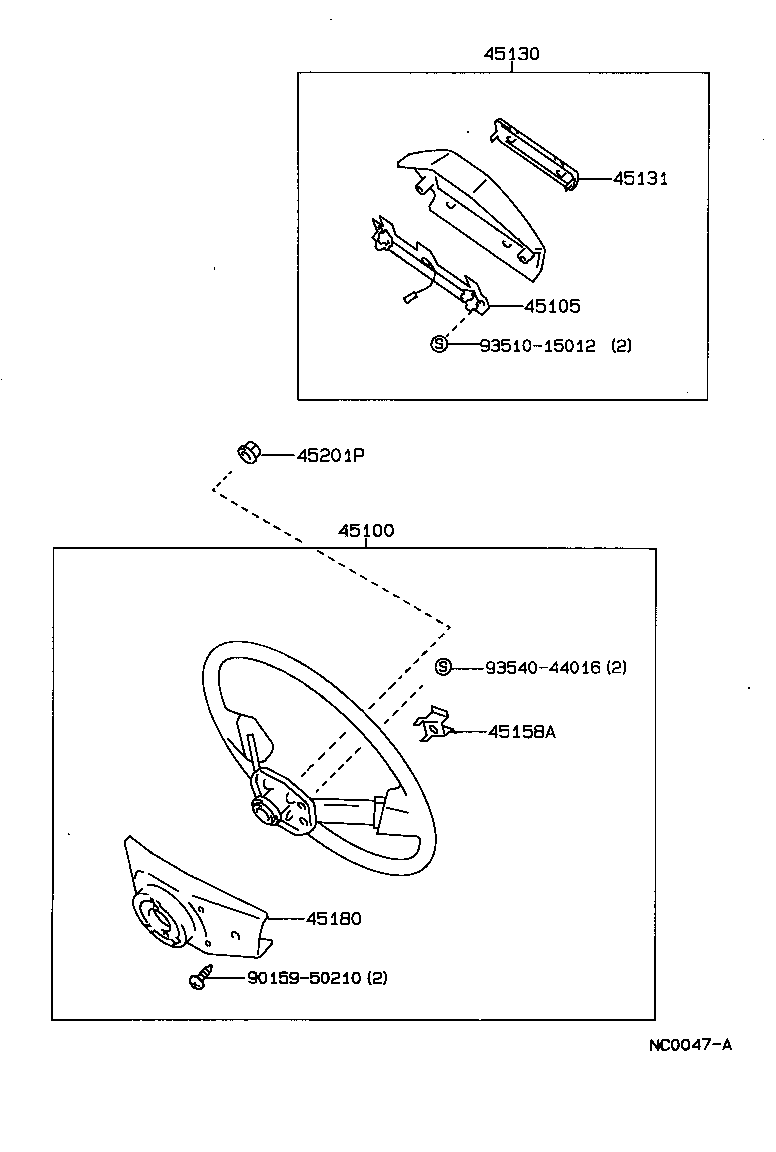

Click highlighted areas on diagram

diagram 45100 45105 45130 45131 45158A 45180 45201P 9015950210 9351015012 9354044016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1249005

EE90..(STD,XL)..(GCC,GEN)

2SPOKE,POLYPROPYLENE,DARK BEIGE,TRIM4#

 1
45100-1249004

EE90..LHD..XL

2SPOKE,POLYPROPYLENE,DARK BLUE,TRIM8#

 1
45100-1250004

EE90..LHD..XL

2-SPOKE,URETHANE,URETHANE,DARK BLUE,TRIM8#

 1
45100-1249003

EE90..(STD,XL)..(GCC,GEN)

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-1250003

EE90..(STD,XL)..(GCC,GEN)

2-SPOKE,URETHANE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-1250005

EE90..(STD,XL)..(GCC,GEN)

2-SPOKE,URETHANE,URETHANE,DARK BEIGE,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12070

EE90..(STD,XL)..(GCC,GEN)

 1
45105-12110

EE90..GCC,GEN

 2
45105-12110

EE90..(STD,XL)..(GCC,GEN)

URETHANE

 2
45105-12070

EE90..(STD,XL)..(GCC,GEN)

 1
45105-12060

EE90..(STD,XL)..(GCC,GEN)

URETHANE

 1
45105-12110

EE90..LHD..XL;EE90..(GL,STD)..GEN

 2
45130 - BUTTON ASSY, HORN
45130-1233003

EE90..(STD,XL)..(GCC,GEN)

SHADOW GRAY,TRIM1#

 1
45130-1236003

EE90..(STD,XL)..(GCC,GEN)

URETHANE,SHADOW GRAY,TRIM1#

 1
45130-1233004

EE90..LHD..XL

DARK BLUE,TRIM8#

 1
45130-1233005

EE90..(STD,XL)..(GCC,GEN)

DARK BEIGE,TRIM4#

 1
45130-1236005

EE90..(STD,XL)..(GCC,GEN)

URETHANE,DARK BEIGE,TRIM4#

 1
45130-1236004

EE90..LHD..XL

URETHANE,DARK BLUE,TRIM8#

 1
45130-1262004

EE90..GCC,GEN

DARK BLUE,TRIM8#

 1
45130-12620B1

EE90..GL,STD;EE90..LHD..XL..GEN;AE92,EE90..(3FC,5F)..(STD,XL)..(GCC,SA)

SHADOW GRAY,TRIM1#

 1
45130-12620B1

AE92,EE90..(3D,5D)..(GL,STD,XL)

SHADOW GRAY,TRIM1#

 1
45130-1233103

EE90..(STD,XL)..(GCC,GEN)

SHADOW GRAY,TRIM1#

 1
45130-1262004

EE90..LHD..XL;EE90..(GL,STD)..GEN

DARK BLUE,TRIM8#

 1
45130-12620B1

EE90..(STD,XL)..(GCC,GEN)

URETHANE,SHADOW GRAY,TRIM1#

 1
45130-1262006

EE90..LHD..XL..GEN;AE92,EE90..(STD,XL)..(GCC,SA)

BROWN,TRIM4#

 1
45130-1233104

EE90..(STD,XL)..(GCC,GEN)

DARK BLUE,TRIM8#

 1
45130-1233106

EE90..LHD..XL

BROWN,TRIM4#

 1
45130-1262004

EE90..(STD,XL)..(GCC,GEN)

URETHANE,DARK BLUE,TRIM8#

 1
45130-1262006

EE90..LHD..XL

URETHANE,BROWN,TRIM4#

 1
45131 - BUTTON, HORN, NO.1
45131-1225005

EE90..(STD,XL)..(GCC,GEN)

DARK BEIGE,TRIM4#

 1
45131-1225004

EE90..LHD..XL

DARK BLUE,TRIM8#

 1
45131-1225003

EE90..(STD,XL)..(GCC,GEN)

SHADOW,TRIM1#

 1
45131-1225103

EE90..(STD,XL)..(GCC,GEN)

SHADOW GRAY,TRIM1#

 1
45131-1225106

EE90..LHD..XL

BROWN,TRIM4#

 1
45131-1225104

EE90..(STD,XL)..(GCC,GEN)

DARK BLUE,TRIM8#

 1
45158A - SOCKET, HORN BUTTON JOINT
45158-12020

EE90..(STD,XL)..(GCC,GEN)

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1206003

EE90..(STD,XL)..(GCC,GEN)

URETHANE,SHADOW GRAY,TRIM1#

 1
45180-1205005

EE90..(STD,XL)..(GCC,GEN)

DARK BEIGE,TRIM4#

 1
45180-1205004

EE90..LHD..XL

DARK BLUE,TRIM8#

 1
45180-1206004

EE90..LHD..XL

URETHANE,DARK BLUE,TRIM8#

 1
45180-1206005

EE90..(STD,XL)..(GCC,GEN)

URETHANE,DARK BEIGE,TRIM4#

 1
45180-1205003

EE90..(STD,XL)..(GCC,GEN)

SHADOW GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AE92,EE90

 1
Common parts
90159-50210
93510-15012
93540-44016
