EE90L-AHMDSV (1990)

Toyota Corolla Cp/Hb

Production Aug 1990 - Jul 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE90

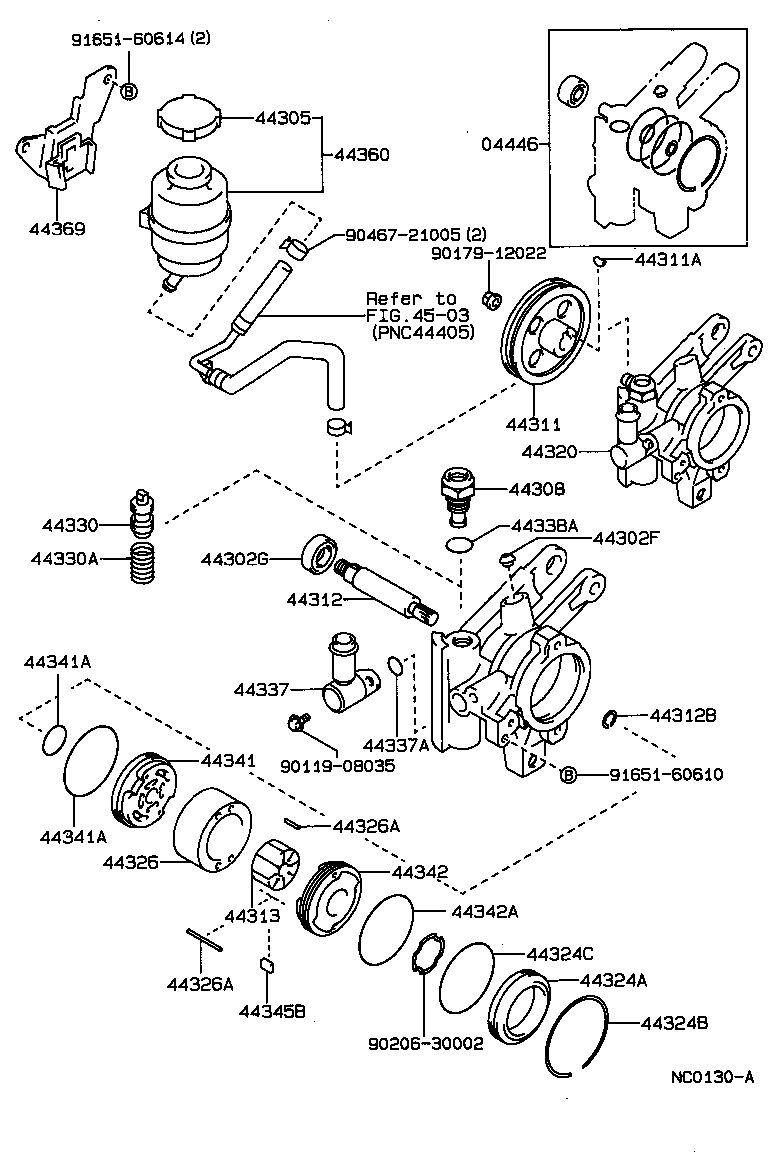

Click highlighted areas on diagram

diagram 04446 44302F 44302G 44305 44308 44311 44311A 44312 44312B 44313 44320 44324A 44324B 44324C 44326 44326A 44326A 44330 44330A 44337 44337A 44338A 44341 44341A 44341A 44342 44342A 44345B 44360 44369 4503 9011908035 9017912022 9020630002 9046721005 9165160610 9165160614
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-20030

AE92;EE90..GCC,GEN

 1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05035

EE90..GCC,GEN

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007

AE92;EE90..GCC,GEN

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-22020

AE92..GT,GTI;EE90..GCC,GEN

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-12032

EE90..GCC,GEN

 1
44311 - PULLEY, VANE PUMP
44311-12100

EE90

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

AE92;EE90..GCC,GEN

 1
44312 - SHAFT, VANE PUMP
44312-12030

AE92;EE90..GCC,GEN

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

AE92;EE90..GCC,GEN

 1
44313 - ROTOR, VANE PUMP
44313-12010

AE92,EE90

NO MARK

 1
44313-12030

AE92,EE90

MARK 2

 1
44313-12040

AE92,EE90

MARK 3

 1
44313-12050

AE92,EE90

MARK 4

 1
44313-12020

AE92,EE90

MARK 1

 1
44320 - PUMP ASSY, VANE
44320-12210

EE90

 1
44320-12212

EE90..GCC,GEN

 1
44324A - HOUSING, PUMP, REAR
44324-12031

AE92;EE90..GCC,GEN

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002

AE92;EE90..GCC,GEN

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-52001

AE92;EE90..GCC,GEN

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12110

AE92;EE90..GCC,GEN

NO MARK

 1
44325-12140

AE92;EE90..GCC,GEN

MARK 3

 1
44325-12130

AE92;EE90..GCC,GEN

MARK 2

 1
44325-12150

AE92;EE90..GCC,GEN

MARK 4

 1
44325-12120

AE92;EE90..GCC,GEN

MARK 1

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

AE92;EE90..GCC,GEN

L=28,OD=4.0

 1
90250-04049

AE92;EE90..GCC,GEN

L=43,OD=4.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

AE92;EE90..GCC,GEN

L=28,OD=4.0

 1
90250-04049

AE92;EE90..GCC,GEN

L=43,OD=4.0

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-12090

EE90..GCC,GEN

MARK C

 1
44330-12070

EE90..GCC,GEN

MARK A

 1
44330-12080

EE90..GCC,GEN

MARK B

 1
44330-12110

EE90..GCC,GEN

MARK E

 1
44330-12120

EE90..GCC,GEN

MARK F

 1
44330-12100

EE90..GCC,GEN

MARK D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

AE92;EE90..GCC,GEN

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12060

EE90..GCC,GEN

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-12003

AE92..GT,GTI;EE90..GCC,GEN

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003

AE92;EE90..GCC,GEN

ID=19.5,OD=22.5

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-12030

AE92,EE90

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001

AE92;EE90..GCC,GEN

INNER

 1
90301-52001

AE92;EE90..GCC,GEN

OUTER

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001

AE92;EE90..GCC,GEN

INNER

 1
90301-52001

AE92;EE90..GCC,GEN

OUTER

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-12021

AE92,EE90

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001

AE92;EE90..GCC,GEN

 1
44345B - PLATE, VANE PUMP
44345-12020

AE92;EE90..GCC,GEN

L=14.995

 10
44345-12030

AE92;EE90..GCC,GEN

L=14.993

 10
44345-12050

AE92;EE90..GCC,GEN

L=14.989

 10
44345-12040

AE92;EE90..GCC,GEN

L=14.991

 10
44345-12010

AE92;EE90..GCC,GEN

L=14.997

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-12030

AE92..GT,GTI;EE90..GCC,GEN

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-12020

AE92..GT,GTI;EE90..GCC,GEN

 1
Common parts
90119-08035
90179-12022
90206-30002
90467-21005
91651-60610
91651-60614
Linked diagrams
4503
