EE90L-AHMDS (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2E

Click highlighted areas on diagram

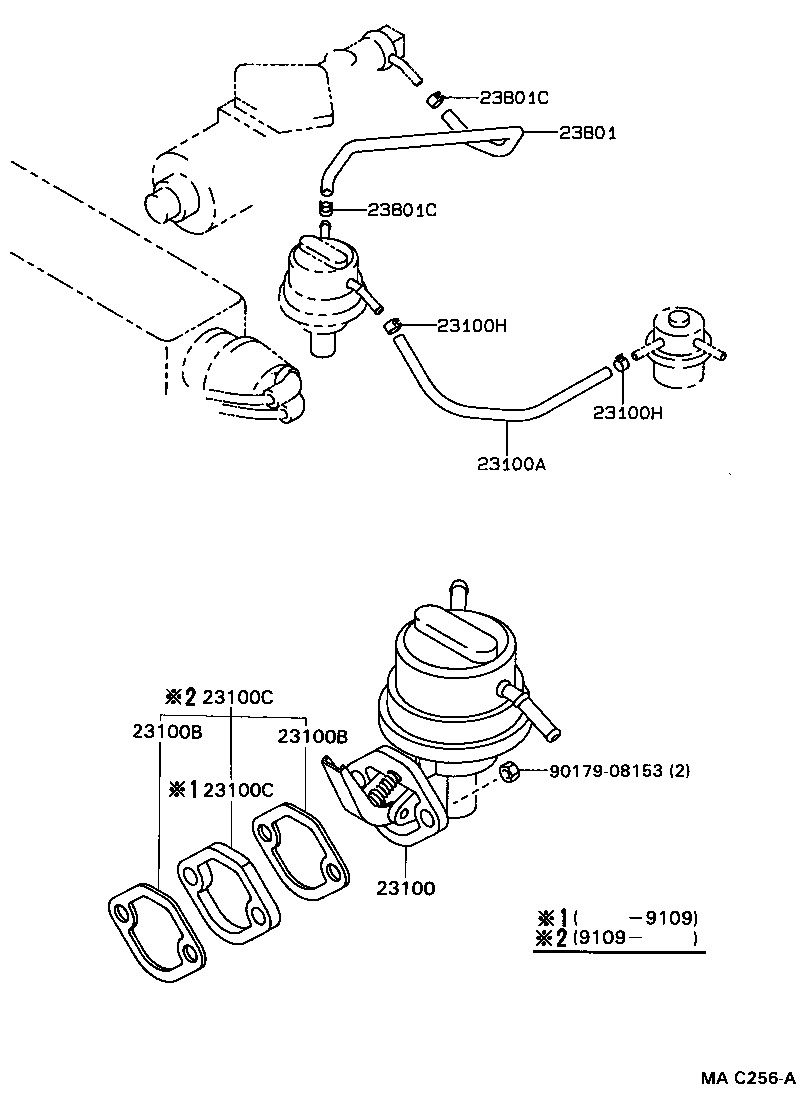

diagram 23100 23100A 23100B 23100B 23100C 23100C 23100H 23100H 23801 23801C 23801C 9017908153
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-10021

2E..EE90

 1
23100-11080

2E..EE90

 1
23100-11080

2E..EE90..GCC,GEN

 1
23100-10020

2E..EE90

 1
23100A - HOSE, FUEL
90445-12213

2E..EE90

 1
90447-12098

2E..EE90..GCC,GEN

 1
90445-12213

2E..EE90..GCC,SA;2E..EE90..LHD..GEN

 1
23100B - GASKET, FUEL PUMP
90923-05024

2E..EE90

 2
90923-05017

2E..EE90

 2
90923-05017

2E..EE90

 2
23100B - GASKET, FUEL PUMP
90923-05024

2E..EE90

 2
90923-05017

2E..EE90

 2
90923-05017

2E..EE90

 2
23100C - INSULATOR, FUEL PUMP
23915-10020

2E..EE90..GEN,SA;2E..EE90..5F..GCC

 1
23915-10020

2E..EE90

 1
23915-10020

2E..EE90

 1
23100C - INSULATOR, FUEL PUMP
23915-10020

2E..EE90..GEN,SA;2E..EE90..5F..GCC

 1
23915-10020

2E..EE90

 1
23915-10020

2E..EE90

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95333-06010

2E..EE90

*H,L=100

 1
95333-06010

2E..EE90

*H,L=100

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
Common parts
90179-08153

(8705-8908)2E

Click highlighted areas on diagram

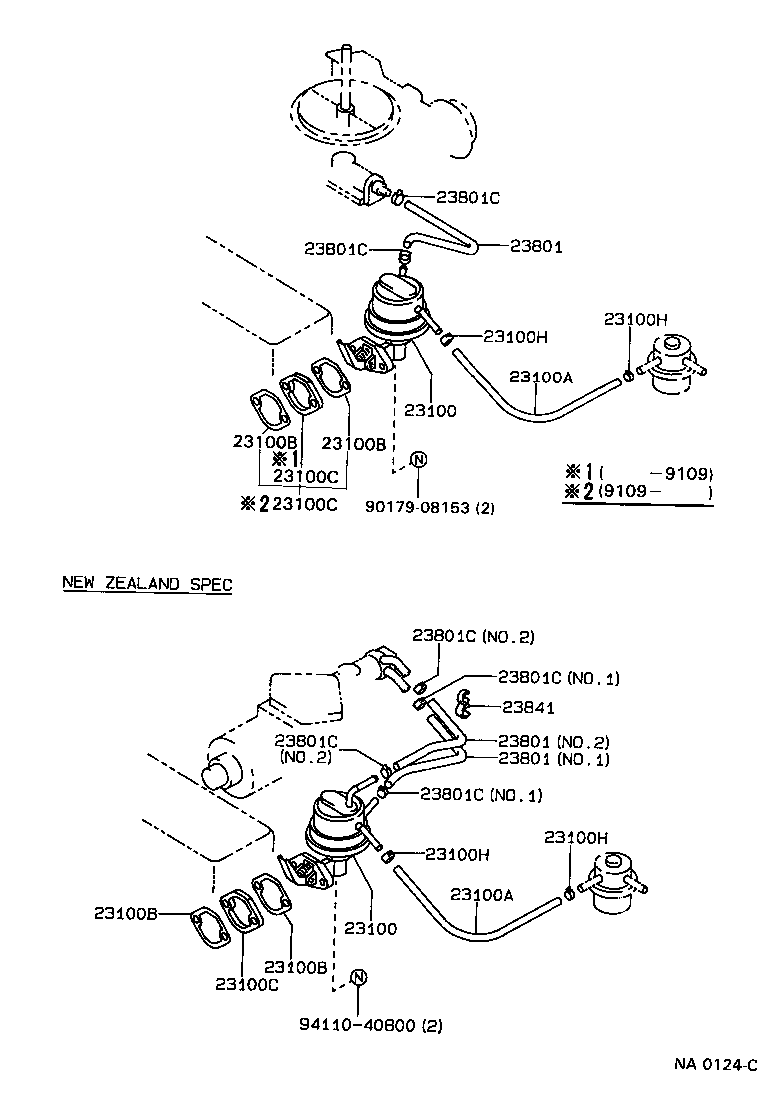

diagram 23100 23100 23100A 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100C 23100H 23100H 23100H 23100H 23801 23801 23801 23801C 23801C 23801C 23801C 23801C 23801C 23841 9017908153 9411040800
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-10021

2E..EE90

 1
23100-11080

2E..EE90

 1
23100-11080

2E..EE90..GCC,GEN

 1
23100-10020

2E..EE90

 1
23100 - PUMP ASSY, FUEL
23100-10021

2E..EE90

 1
23100-11080

2E..EE90

 1
23100-11080

2E..EE90..GCC,GEN

 1
23100-10020

2E..EE90

 1
23100A - HOSE, FUEL
90445-12213

2E..EE90

 1
90447-12098

2E..EE90..GCC,GEN

 1
90445-12213

2E..EE90..GCC,SA;2E..EE90..LHD..GEN

 1
23100A - HOSE, FUEL
90445-12213

2E..EE90

 1
90447-12098

2E..EE90..GCC,GEN

 1
90445-12213

2E..EE90..GCC,SA;2E..EE90..LHD..GEN

 1
23100B - GASKET, FUEL PUMP
90923-05024

2E..EE90

 2
90923-05017

2E..EE90

 2
90923-05017

2E..EE90

 2
23100B - GASKET, FUEL PUMP
90923-05024

2E..EE90

 2
90923-05017

2E..EE90

 2
90923-05017

2E..EE90

 2
23100B - GASKET, FUEL PUMP
90923-05024

2E..EE90

 2
90923-05017

2E..EE90

 2
90923-05017

2E..EE90

 2
23100B - GASKET, FUEL PUMP
90923-05024

2E..EE90

 2
90923-05017

2E..EE90

 2
90923-05017

2E..EE90

 2
23100C - INSULATOR, FUEL PUMP
23915-10020

2E..EE90..GEN,SA;2E..EE90..5F..GCC

 1
23915-10020

2E..EE90

 1
23915-10020

2E..EE90

 1
23100C - INSULATOR, FUEL PUMP
23915-10020

2E..EE90..GEN,SA;2E..EE90..5F..GCC

 1
23915-10020

2E..EE90

 1
23915-10020

2E..EE90

 1
23100C - INSULATOR, FUEL PUMP
23915-10020

2E..EE90..GEN,SA;2E..EE90..5F..GCC

 1
23915-10020

2E..EE90

 1
23915-10020

2E..EE90

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
96132-30600

2E..EE90

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95333-06010

2E..EE90

*H,L=100

 1
95333-06010

2E..EE90

*H,L=100

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95333-06010

2E..EE90

*H,L=100

 1
95333-06010

2E..EE90

*H,L=100

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95333-06010

2E..EE90

*H,L=100

 1
95333-06010

2E..EE90

*H,L=100

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
96132-30600

2E..EE90

 2
90467-11009

2E..EE90

 2
90467-11009

2E..EE90

 2
Common parts
90179-08153
94110-40800
