EE90L-AHKDSV (1987)

Toyota Corolla Cp/Hb

Production Aug 1987 - Aug 1990
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )3D,5D

Click highlighted areas on diagram

TYPE G

diagram 52011A 52012A 52114A 52115A 52116A 52119A 52521 52526A 52711 52713 52714 9010908155 9011906166 9011906340 9011906341 9011912015 9015960304 9017906127 9046705057 9165540825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12380

AE92,EE90..5D..(GCC,GEN)

TYPE F

 1
52011-12380

EE90..XL..(GCC,GEN)

TYPE F

 1
52011-12360

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

TYPE E

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12390

EE90..XL..(GCC,GEN)

TYPE F

 1
52012-12370

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270

EE90..XL..(GCC,GEN)

TYPE G

 1
52115-12260

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12210

EE90..XL..(GCC,GEN)

TYPE G

 1
52116-12200

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52119A - COVER, FRONT BUMPER
52119-1A350

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090

EE90

TYPE B

 2
52565-12090

EE90..XL

W(COLOR BUMPER),TYPE B

 4
52565-12040

AE92,EE90..3D,5D

TYPE A

 4
52565-12110

EE90

TYPE C

 1
52565-12090

AE92,EE90..3D,5D

TYPE B

 2
Common parts
90109-08155
90119-06166
90119-06340
90119-06341
90119-12015
90159-60304
90179-06127
90467-05057
91655-40825

(8908- )3D,5D

Click highlighted areas on diagram

TYPE E

diagram 52011A 52012A 52114A 52115A 52116A 52119A 52526A 52526A 9010908155 9011906166 9011906340 9011906341 9011912015 9015960304 9017906086 9046705057 9165540820
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12380

AE92,EE90..5D..(GCC,GEN)

TYPE F

 1
52011-12380

EE90..XL..(GCC,GEN)

TYPE F

 1
52011-12360

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

TYPE E

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12390

EE90..XL..(GCC,GEN)

TYPE F

 1
52012-12370

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270

EE90..XL..(GCC,GEN)

TYPE G

 1
52115-12260

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12210

EE90..XL..(GCC,GEN)

TYPE G

 1
52116-12200

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52119A - COVER, FRONT BUMPER
52119-1A350

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090

EE90

TYPE B

 2
52565-12090

EE90..XL

W(COLOR BUMPER),TYPE B

 4
52565-12040

AE92,EE90..3D,5D

TYPE A

 4
52565-12110

EE90

TYPE C

 1
52565-12090

AE92,EE90..3D,5D

TYPE B

 2
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090

EE90

TYPE B

 2
52565-12090

EE90..XL

W(COLOR BUMPER),TYPE B

 4
52565-12040

AE92,EE90..3D,5D

TYPE A

 4
52565-12110

EE90

TYPE C

 1
52565-12090

AE92,EE90..3D,5D

TYPE B

 2
Common parts
90109-08155
90119-06166
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057
91655-40820

(8705-8908)3D,5D..GL,STD,XL

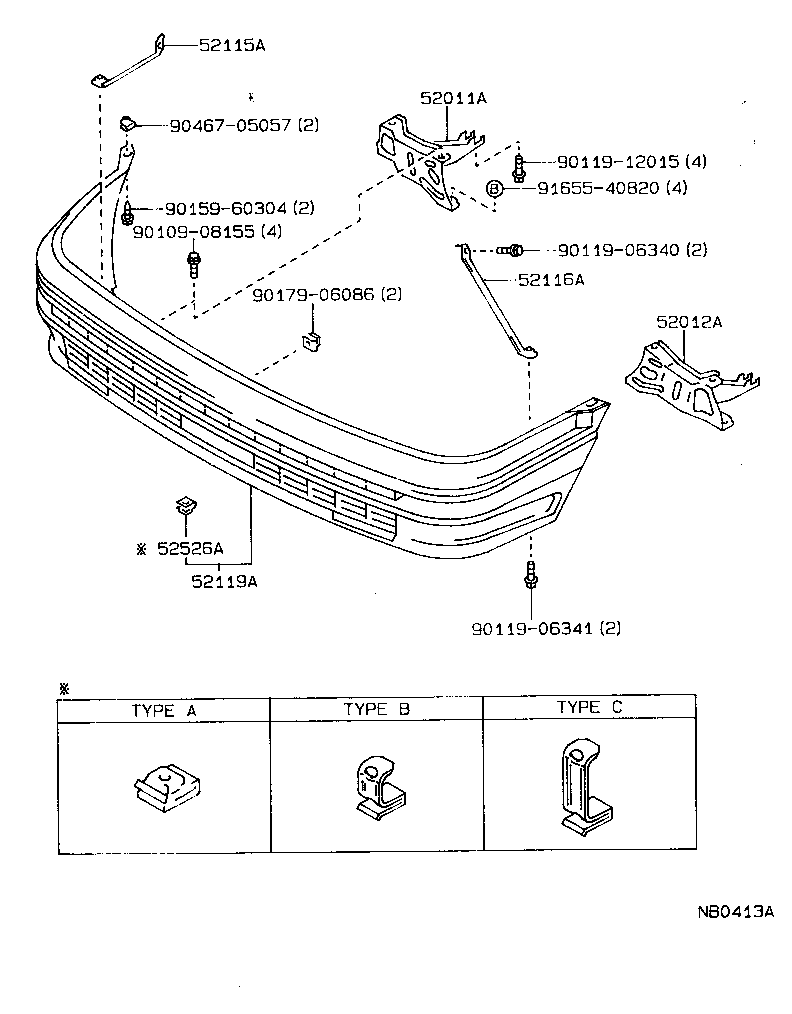

Click highlighted areas on diagram

TYPE E

diagram 52011A 52012A 52115A 52116A 52119A 52526A 9010908155 9011906340 9011906341 9011912015 9015960304 9017906086 9046705057 9165540820
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12380

AE92,EE90..5D..(GCC,GEN)

TYPE F

 1
52011-12380

EE90..XL..(GCC,GEN)

TYPE F

 1
52011-12360

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

TYPE E

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12390

EE90..XL..(GCC,GEN)

TYPE F

 1
52012-12370

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12270

EE90..XL..(GCC,GEN)

TYPE G

 1
52115-12260

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12210

EE90..XL..(GCC,GEN)

TYPE G

 1
52116-12200

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52119A - COVER, FRONT BUMPER
52119-1A350

AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)

TYPE E

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090

EE90

TYPE B

 2
52565-12090

EE90..XL

W(COLOR BUMPER),TYPE B

 4
52565-12040

AE92,EE90..3D,5D

TYPE A

 4
52565-12110

EE90

TYPE C

 1
52565-12090

AE92,EE90..3D,5D

TYPE B

 2
Common parts
90109-08155
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057
91655-40820
