EE90L-AHHDSV (1987)
Toyota Corolla Cp/Hb

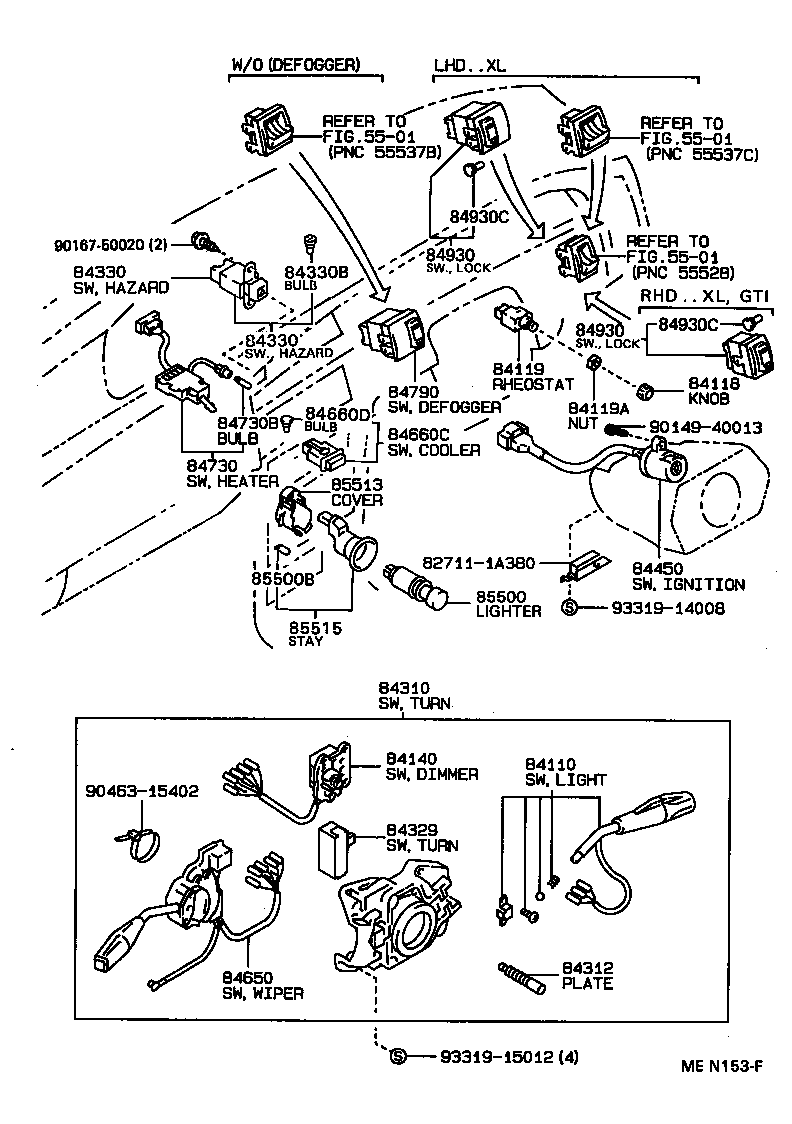

ILLUST NO. 2 OF 5(8908- )3D,5D..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80002 |
AE92,EE90..LHD..(3D,5D) TOKAIRIKA |
1 | ||
| 84112-80001 |
AE92,EE90..LHD..(3D,5D) MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12250 |
AE92,EE90..LHD MATSUSHITA |
1 | ||
| 84140-12260 |
AE92,EE90..LHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A170 |
EE90..LHD..(STD,XL) W(*IW) |
1 | ||
| 84310-1A150 |
EE90..LHD..(STD,XL) |
1 | ||
| 84310-1A280 |
EE90..LHD..STD;EE90..LHD..(3FC,5F)..XL W(*IW & *RW) |
1 | ||
| 84310-1A151 |
AE92,EE90..LHD..(3D,5D) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92,EE90 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE92,EE90..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12260 |
AE92,EE90..LHD..(3D,5D) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12260 |
AE92,EE90..LHD..(3D,5D) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE92,EE90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12790 |
EE90..LHD..(STD,XL) W(*IW),MATSUSHITA |
1 | ||
| 84652-12800 |
EE90..LHD..(STD,XL) W(*IW),TOKAIRIKA |
1 | ||
| 84652-12780 |
EE90..LHD..(STD,XL) TOKAIRIKA |
1 | ||
| 84652-12770 |
EE90..LHD..(STD,XL) MATSUSHITA |
1 | ||
| 84652-12830 |
EE90..LHD..STD;EE90..LHD..(3FC,5F)..XL W(*RW & *IW),MATSUSHITA |
1 | ||
| 84652-12840 |
EE90..LHD..STD;EE90..LHD..(3FC,5F)..XL W(*RW & *IW),TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12100 |
AE92,EE90..LHD..(3D,5D) W(HEATER & BOOST VENTILATOR) |
1 | ||
| 84660-20100 |
AE92,EE90..LHD..(3D,5D)..(GTI,STD,XL) |
1 | ||
| 84660-20100 |
EE90..GCC |
1 | ||
| 84660-20100 |
EE90..LHD |
1 | ||
| 84660-20100 |
EE90..3FC..GCC |
1 | ||
| 84660-12100 |
EE90..GCC;AE92..LHD..GTI W(HEATER & BOOST VENTILATOR) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE92,EE90..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92,EE90 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1223004 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790-1223005 |
AE92,EE90..(3D,5D)..(GL,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223003 |
AE92,EE90..(3D,5D)..(GL,STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 84790-12230J0 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE92,EE90..3D,5D |
1 | ||
| 85513-12020 |
AE92,EE90..3D,5D |
1 | ||
| 85513-12010 |
AE92,EE90 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE92,EE90..3D,5D |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 5 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
EE90..GCC;EE90..3D..STD;AE92..RHD..GTI;AE92..5D..(GT,SR5,XL);EE90..RHD..5D..(GL,XL);EE90..LHD..5D..5F..XL..GEN |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||
ILLUST NO. 2 OF 5(8705-8908)3D,5D ; (8908- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80002 |
AE92,EE90..LHD..(3D,5D) TOKAIRIKA |
1 | ||
| 84112-80001 |
AE92,EE90..LHD..(3D,5D) MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12250 |
AE92,EE90..LHD MATSUSHITA |
1 | ||
| 84140-12260 |
AE92,EE90..LHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A170 |
EE90..LHD..(STD,XL) W(*IW) |
1 | ||
| 84310-1A150 |
EE90..LHD..(STD,XL) |
1 | ||
| 84310-1A280 |
EE90..LHD..STD;EE90..LHD..(3FC,5F)..XL W(*IW & *RW) |
1 | ||
| 84310-1A151 |
AE92,EE90..LHD..(3D,5D) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92,EE90 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE92,EE90..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12260 |
AE92,EE90..LHD..(3D,5D) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12260 |
AE92,EE90..LHD..(3D,5D) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE92,EE90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12790 |
EE90..LHD..(STD,XL) W(*IW),MATSUSHITA |
1 | ||
| 84652-12800 |
EE90..LHD..(STD,XL) W(*IW),TOKAIRIKA |
1 | ||
| 84652-12780 |
EE90..LHD..(STD,XL) TOKAIRIKA |
1 | ||
| 84652-12770 |
EE90..LHD..(STD,XL) MATSUSHITA |
1 | ||
| 84652-12830 |
EE90..LHD..STD;EE90..LHD..(3FC,5F)..XL W(*RW & *IW),MATSUSHITA |
1 | ||
| 84652-12840 |
EE90..LHD..STD;EE90..LHD..(3FC,5F)..XL W(*RW & *IW),TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12100 |
AE92,EE90..LHD..(3D,5D) W(HEATER & BOOST VENTILATOR) |
1 | ||
| 84660-20100 |
AE92,EE90..LHD..(3D,5D)..(GTI,STD,XL) |
1 | ||
| 84660-20100 |
EE90..GCC |
1 | ||
| 84660-20100 |
EE90..LHD |
1 | ||
| 84660-20100 |
EE90..3FC..GCC |
1 | ||
| 84660-12100 |
EE90..GCC;AE92..LHD..GTI W(HEATER & BOOST VENTILATOR) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE92,EE90..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92,EE90 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1207004 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84763-1207003 |
EE90..GCC,GEN;AE92,EE90..STD..SA SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207005 |
EE90..GCC,GEN;AE92,EE90..STD..SA DARK BEIGE,TRIM4# |
1 | ||
| 84763-12070J0 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1223004 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790-1223005 |
AE92,EE90..(3D,5D)..(GL,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 84790-1223003 |
AE92,EE90..(3D,5D)..(GL,STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 84790-12230J0 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE92,EE90..(3D,5D)..(GL,GTI,STD,XL) 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE92,EE90..3D,5D |
1 | ||
| 85513-12020 |
AE92,EE90..3D,5D |
1 | ||
| 85513-12010 |
AE92,EE90 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE92,EE90..3D,5D |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
