EE90L-AGMDS (1987)

Toyota Corolla Cp/Hb

Production May 1987 - Aug 1989
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8908)3D,5D..GL,GT,STD,XL ; (8908- )3D,5D

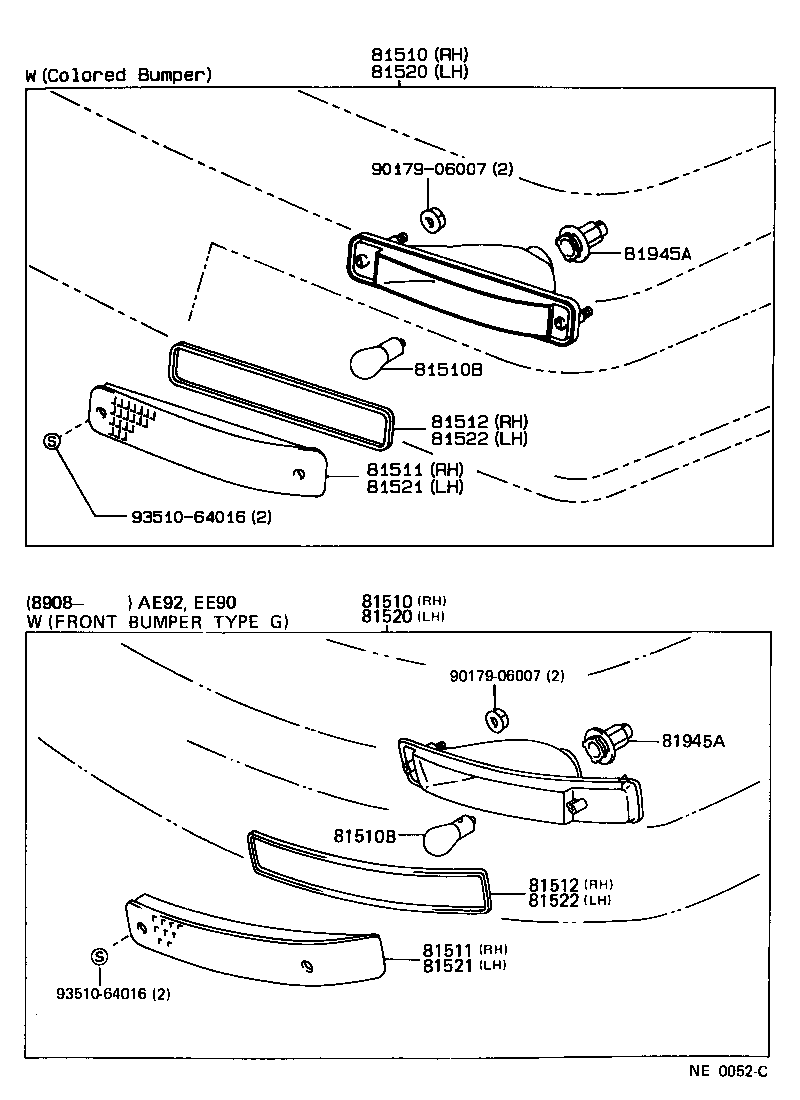

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 8161920070 81945A 9017906007 9017906007 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

EE90..XL

W(COLORED BUMPER)

 1
81510-80053

EE90

KOITO

 1
81510-80054

EE90

IKI

 1
81510-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

EE90..XL

W(COLORED BUMPER)

 1
81510-80053

EE90

KOITO

 1
81510-80054

EE90

IKI

 1
81510-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE92,EE90

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE92,EE90

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81511-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81511-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81511-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81511-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

EE90

KOITO

 1
81520-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81520-80048

EE90..XL

W(COLORED BUMPER)

 1
81520-80054

EE90

IKI

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

EE90

KOITO

 1
81520-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81520-80048

EE90..XL

W(COLORED BUMPER)

 1
81520-80054

EE90

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81521-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81521-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81521-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81521-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81945A - SOCKET, BULB
81945-12010

AE92,EE90..3D,5D

 2
Common parts
81619-20070
90179-06007
93510-64016

(8705-8908)3D,5D..GL,GTI,XL ; (8908- )3D,5D

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 81945A 81945A 9017906007 9017906007 9351064016 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

EE90..XL

W(COLORED BUMPER)

 1
81510-80053

EE90

KOITO

 1
81510-80054

EE90

IKI

 1
81510-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80048

EE90..XL

W(COLORED BUMPER)

 1
81510-80053

EE90

KOITO

 1
81510-80054

EE90

IKI

 1
81510-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE92,EE90

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE92,EE90

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81511-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81511-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81511-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81511-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

EE90

KOITO

 1
81520-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81520-80048

EE90..XL

W(COLORED BUMPER)

 1
81520-80054

EE90

IKI

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

EE90

KOITO

 1
81520-80048

AE92,EE90..(3D,5D)..(GL,GTI,XL)..(GCC,GEN)

 1
81520-80048

EE90..XL

W(COLORED BUMPER)

 1
81520-80054

EE90

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81521-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81521-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81521-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81521-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12580

EE90..XL..(GCC,GEN)

W(COLORED BUMPER)

 1
81945A - SOCKET, BULB
81945-12010

AE92,EE90..3D,5D

 2
81945A - SOCKET, BULB
81945-12010

AE92,EE90..3D,5D

 2
Common parts
90179-06007
93510-64016
