EE90L-AGMDS (1987)
Toyota Corolla Cp/Hb
(8705- )EE90..STD,XL..GCC,GEN

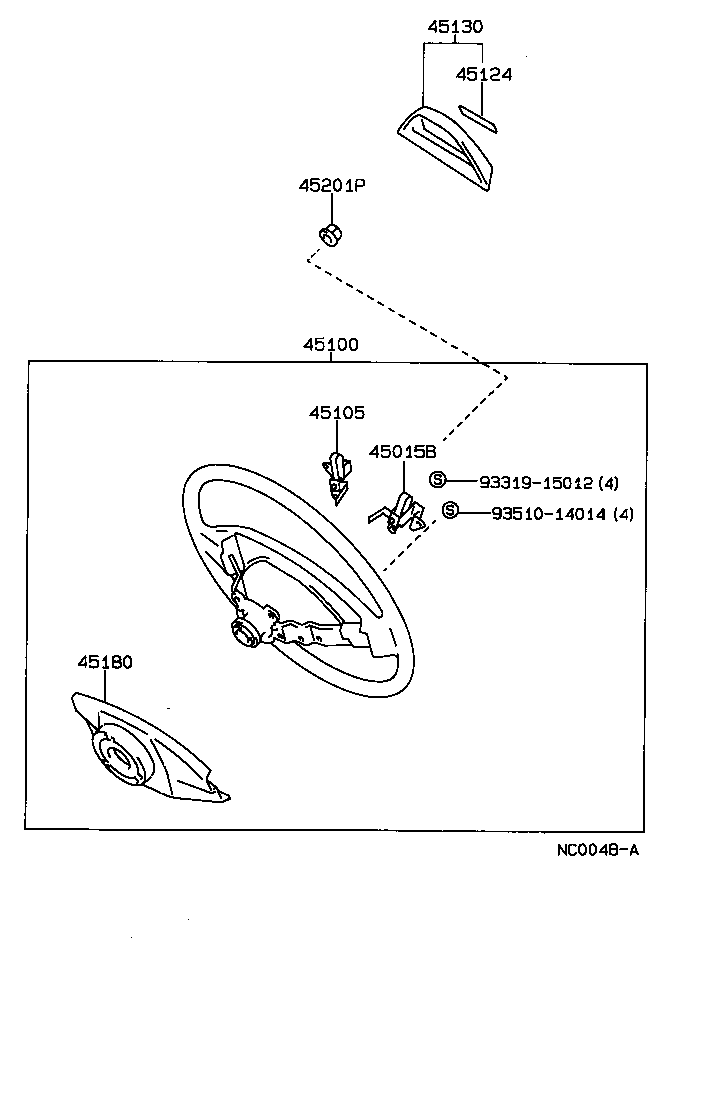

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1249005 |
EE90..(STD,XL)..(GCC,GEN) 2SPOKE,POLYPROPYLENE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1249004 |
EE90..LHD..XL 2SPOKE,POLYPROPYLENE,DARK BLUE,TRIM8# |
1 | ||
| 45100-1250004 |
EE90..LHD..XL 2-SPOKE,URETHANE,URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45100-1249003 |
EE90..(STD,XL)..(GCC,GEN) 2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-1250003 |
EE90..(STD,XL)..(GCC,GEN) 2-SPOKE,URETHANE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-1249104 |
EE90..LHD..XL 2SPOKE,POLYPROPYLENE,DARK BLUE,TRIM8# |
1 | ||
| 45100-1250005 |
EE90..(STD,XL)..(GCC,GEN) 2-SPOKE,URETHANE,URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1249105 |
EE90..(STD,XL)..(GCC,GEN) 2SPOKE,POLYPROPYLENE,DARK BEIGE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12070 |
EE90..(STD,XL)..(GCC,GEN) |
1 | ||
| 45105-12060 |
EE90..(STD,XL)..(GCC,GEN) URETHANE |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1233003 |
EE90..(STD,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1236003 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1233004 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45130-1233005 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45130-1236005 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45130-1233104 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45130-1236004 |
EE90..LHD..XL URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45130-1233105 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-1225005 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45131-1225004 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45131-1225003 |
EE90..(STD,XL)..(GCC,GEN) SHADOW,TRIM1# |
1 | ||
| 45131-1225104 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45131-1225105 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45158A - SOCKET, HORN BUTTON JOINT | ||||
| 45158-12020 |
EE90..(STD,XL)..(GCC,GEN) |
2 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1206003 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45180-1205005 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45180-1205004 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45180-1206004 |
EE90..LHD..XL URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45180-1206005 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45180-1205003 |
EE90..(STD,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 90159-50210 | ||||
| 93510-15012 | ||||
| 93540-44016 | ||||
(8705-8908)3D,5D..GL,STD,XL
URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45015B - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2 | ||||
| 45015-12010 |
AE92,EE90..(3D,5D)..(GL,STD,XL) |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-1249005 |
EE90..(STD,XL)..(GCC,GEN) 2SPOKE,POLYPROPYLENE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1249004 |
EE90..LHD..XL 2SPOKE,POLYPROPYLENE,DARK BLUE,TRIM8# |
1 | ||
| 45100-1250004 |
EE90..LHD..XL 2-SPOKE,URETHANE,URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45100-1249003 |
EE90..(STD,XL)..(GCC,GEN) 2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-1250003 |
EE90..(STD,XL)..(GCC,GEN) 2-SPOKE,URETHANE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-1249104 |
EE90..LHD..XL 2SPOKE,POLYPROPYLENE,DARK BLUE,TRIM8# |
1 | ||
| 45100-1250005 |
EE90..(STD,XL)..(GCC,GEN) 2-SPOKE,URETHANE,URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45100-1249105 |
EE90..(STD,XL)..(GCC,GEN) 2SPOKE,POLYPROPYLENE,DARK BEIGE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12070 |
EE90..(STD,XL)..(GCC,GEN) |
1 | ||
| 45105-12060 |
EE90..(STD,XL)..(GCC,GEN) URETHANE |
1 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-1202004 |
EE90..LHD..3D..XL DARK BLUE,TRIM8# |
1 | ||
| 45124-1202003 |
EE90..5D..STD;EE90..LHD..3D..XL SHADOW GRAY,TRIM1# |
1 | ||
| 45124-1202005 |
AE92,EE90..(3D,5D)..(GL,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 45124-1202004 |
EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 45124-1202005 |
EE90..5D..STD;EE90..LHD..3D..XL DARK BEIGE,TRIM4# |
1 | ||
| 45124-1202003 |
AE92,EE90..(3D,5D)..(GL,STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1233003 |
EE90..(STD,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1236003 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1233004 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45130-1233005 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45130-1236005 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45130-1233104 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45130-1236004 |
EE90..LHD..XL URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45130-1233105 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-1206003 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45180-1205005 |
EE90..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 45180-1205004 |
EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 45180-1206004 |
EE90..LHD..XL URETHANE,DARK BLUE,TRIM8# |
1 | ||
| 45180-1206005 |
EE90..(STD,XL)..(GCC,GEN) URETHANE,DARK BEIGE,TRIM4# |
1 | ||
| 45180-1205003 |
EE90..(STD,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 93319-15012 | ||||
| 93510-14014 | ||||
