EE90L-AGKRS (1987)
Toyota Corolla Cp/Hb

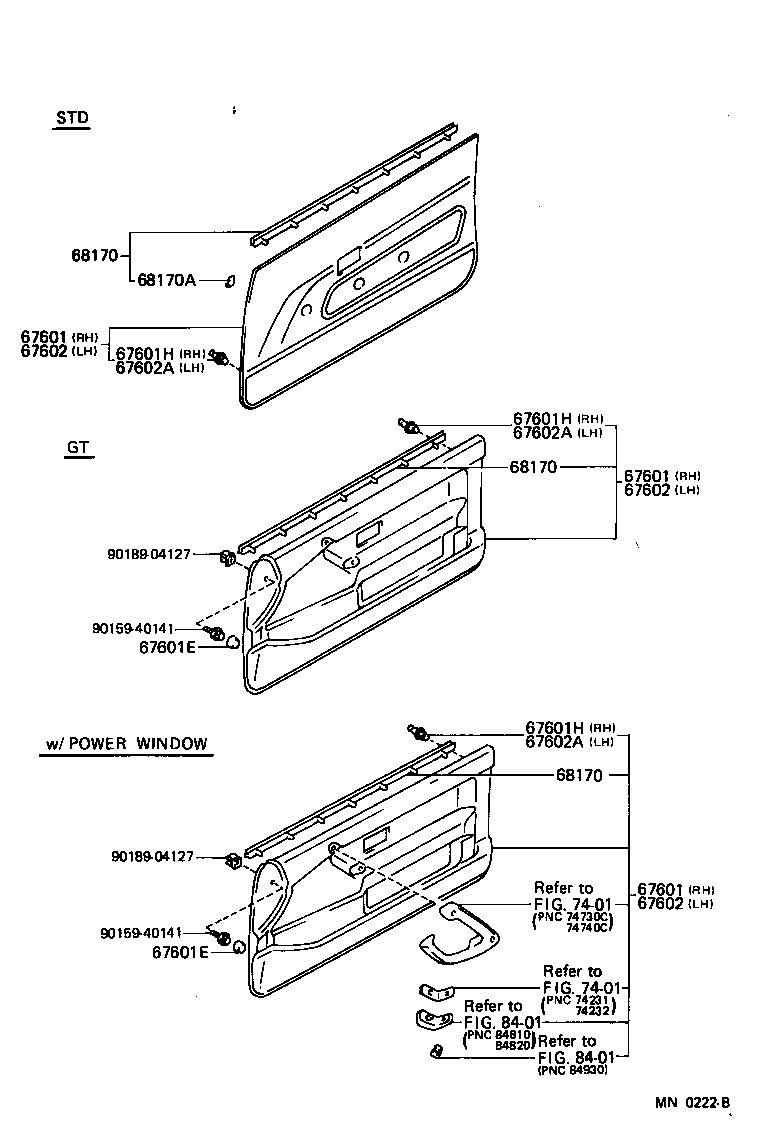

ILLUST NO. 2 OF 2(8908- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A30005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A30003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A30004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A30005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A30003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A30004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A30005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A30003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A30004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E64005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E64003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E64004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E64005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E64003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E64004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E64005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E64003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E64004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12280 |
EE90..3D..STD |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12280 |
EE90..3D..STD |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12280 |
EE90..3D..STD |
2 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
EE90..3D..STD |
32 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8705-8908)3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A30005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A30003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A30004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A30005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A30003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A30004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A30005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A30003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A30004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E64005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E64003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E64004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E64005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E64003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E64004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E64005 |
EE90..3D..STD DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E64003 |
EE90..3D..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E64004 |
EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
EE90..3D..STD |
16 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12280 |
EE90..3D..STD |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12280 |
EE90..3D..STD |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12280 |
EE90..3D..STD |
2 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40106 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8705- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62367D - CLIP, DOOR WINDOW GLASS, RH | ||||
| 62367-12050 |
AE92,EE90..3D |
1 | ||
| 62368C - CLIP, DOOR WINDOW GLASS, LH | ||||
| 62367-12050 |
AE92,EE90..3D |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A320 |
AE92,EE90..3D |
1 | ||
| 67001-1A321 |
AE92,EE90..3D |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09059 |
AE92,EE90..3D |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A300 |
AE92,EE90..3D |
1 | ||
| 67002-1A301 |
AE92,EE90..3D |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12480 |
AE92,EE90..3D |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12470 |
AE92,EE90..3D |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12280 |
AE92,EE90..3D |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12300 |
AE92,EE90..3D |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12140 |
AE92,EE90..3D |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12140 |
AE92,EE90..3D |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12190 |
AE92,EE90..3D |
1 | ||
| 67491-12200 |
AE92,EE90..LHD..3D W(MANUAL REMOTE CONTROL MIRROR) |
1 | ||
| 67491-12190 |
EE90..LHD..3D |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12190 |
AE92,EE90..3D |
1 | ||
| 67492-12190 |
EE90..LHD..3D |
1 | ||
| 67492-12200 |
AE92,EE90..LHD..3D W(MANUAL REMOTE CONTROL MIRROR) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12140 |
AE92,EE90..3D |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-12140 |
AE92,EE90..3D |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AE92,EE90 |
2 | ||
| 67499-12030 |
AE92,EE90..3D,5D |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67832-12260 |
AE92,EE90..3D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12260 |
AE92,EE90..3D |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12610 |
AE92,EE90..3D |
1 | ||
| 67861-12750 |
AE92,EE90..3D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12610 |
AE92,EE90..3D |
1 | ||
| 67862-12710 |
AE92,EE90..3D |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12020 |
AE92,EE90..3D |
21 | ||
| 67868-12050 |
AE92,EE90..3D |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE92,EE90..3D |
21 | ||
| 67868-12050 |
AE92,EE90..3D |
21 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE92,EE90..3D,5D |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-12650 |
EE90..3D *TEM,T=3.5 |
1 | ||
| 68111-12660 |
EE90..3D..STD *TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-12660 |
EE90..3D..STD *TT,T=3.5 |
1 | ||
| 68112-12650 |
EE90..3D *TEM,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12360 |
AE92,EE90..3D |
1 | ||
| 68141-12381 |
AE92,EE90..3D |
1 | ||
| 68141-12380 |
AE92,EE90..3D |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12100 |
AE92,EE90..3D |
1 | ||
| 68151-12080 |
AE92,EE90..3D |
1 | ||
| 68151-12101 |
AE92,EE90..3D |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-12180 |
EE90..3D |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
EE90..3D |
14 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-12130 |
EE90..3D |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12050 |
AE92,EE90..3D AISIN |
2 | ||
| 68610-12070 |
AE92,EE90..3D |
2 | ||
| 68610-12050 |
EE90..5F..GL;AE92,EE90..(3D,5D)..(GT,GTI,STD,XL) |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-22020 |
EE90..5F..GL;AE92,EE90..(3D,5D)..(GT,GTI,STD,XL) |
2 | ||
| 68617-12030 |
EE90..5F..GL;AE92,EE90..(3D,5D)..(GT,GTI,STD,XL) |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06597 | ||||
| 90333-35004 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
