Toyota Corolla cp/hb AE92 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
COROLLA CP/HB
AE92R-AHMVFN (1988)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-12370	AE92,EE90	05/1987 - 10/1988	1
88460-12370	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88460-12370	AE92..RHD..GTI;AE92,EE90..GL,GT,SR5,STD,XL	10/1988 - 09/1990	1
88460-12370	AE92,EE90	06/1991 - 08/1993	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-12040	AE92,EE90	05/1987 - 01/1988	1
88463-12041	AE92,EE90	11/1988 - 08/1989	1
88463-12041	AE92,EE90..GEN,SA	08/1989 - 08/1993	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12080	AE92,EE90	05/1987 - 01/1988	2
88467-12081	AE92,EE90..GEN,SA	08/1989 - 08/1993	2
88467-12081	AE92,EE90	11/1988 - 08/1989	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040	AE92,EE90..SA L=187	12/1988 - 08/1989	1
88471-12020	AE92,EE90 L=167	05/1987 - 12/1988	1
88471-16040	AE92,EE90 L=187	08/1989 - 09/1990	1
88471-16040	AE92,EE90 L=187	06/1991 - 08/1993	1
88471-16040	AE92,EE90..GEN,SA L=187	09/1990 - 06/1991	1
88470C - BOLT, FUSE
88475-12020	AE92,EE90	06/1991 - 08/1993	1
88475-12020	AE92,EE90	05/1987 - 09/1990	1
88475-12020	AE92,EE90..RHD	09/1990 - 06/1991	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12040	AE92,EE90	05/1987 - 11/1988	1
88473-12070	AE92,EE90..SA	11/1988 - 08/1989	1
88473-12070	AE92,EE90..GEN,SA	08/1989 - 08/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12340	AE92,EE90	06/1991 - 08/1993	1
88726-12340	AE92,EE90	08/1989 - 09/1990	1
88726-12340	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88726-12240	AE92,EE90	05/1987 - 12/1988	1
88726-12340	AE92,EE90..SA	12/1988 - 08/1989	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-12280	AE92,EE90..RHD	05/1987 - 08/1993	1
Common parts
88578-12120
88688-12590
88688-12600
88688-12680
88688-12770
88718-1A170
90091-20609
90091-20613
90091-20621
90091-20809
90119-06033
90119-06336
90119-06440
90159-60128
90179-06032
93385-56025

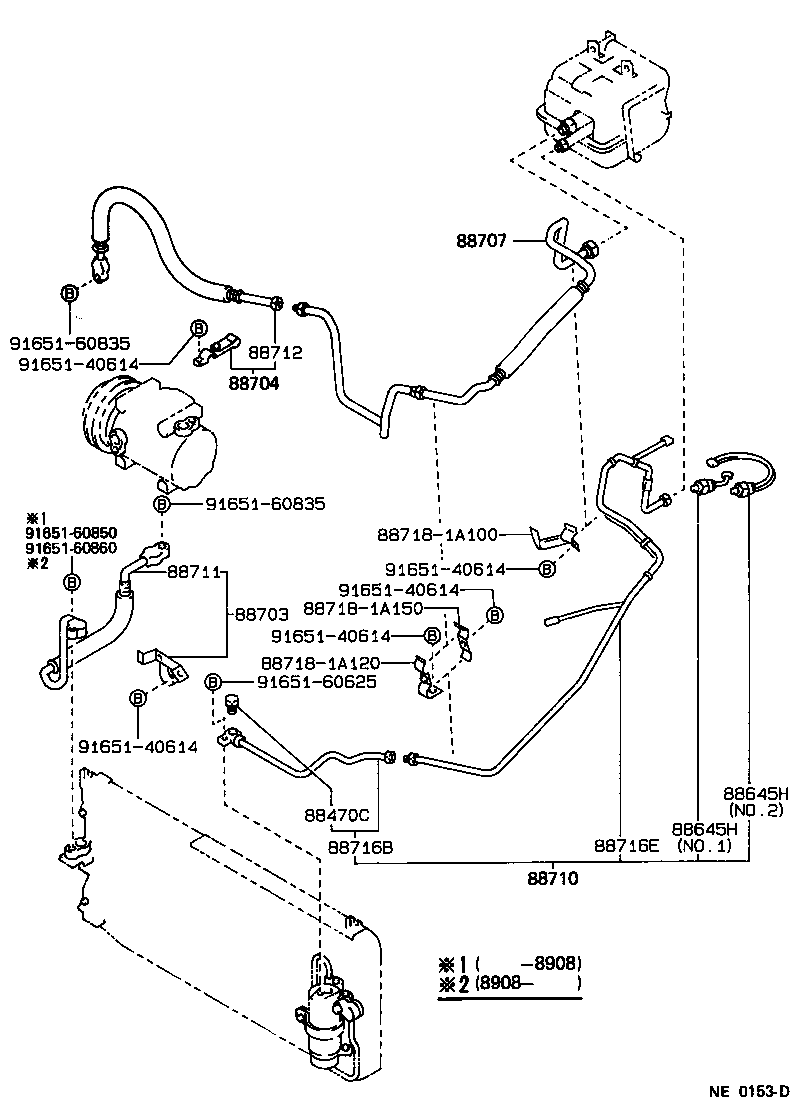

ILLUST NO. 3 OF 3(8705- )RHD..GT,GTI

Click highlighted areas on diagram

MAKER OPT

Part #	Description	Period	Qty
88470C - BOLT, FUSE
88475-12020	AE92,EE90	06/1991 - 08/1993	1
88475-12020	AE92,EE90	05/1987 - 09/1990	1
88475-12020	AE92,EE90..RHD	09/1990 - 06/1991	1
88645H - SWITCH, PRESSURE NO.1
88645-12050	AE92,EE90..RHD..(3D,5D) NO.1	05/1987 - 12/1987	1
88645-12030	AE92,EE90..SA NO.2	08/1988 - 12/1988	1
88645-10020	AE92,EE90..SA NO.1	08/1988 - 08/1989	1
88645-16050	AE92,EE90..SA NO.2	12/1988 - 08/1989	1
88645-10020	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.1	10/1991 - 08/1993	1
88645-16050	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.2	10/1991 - 08/1993	1
88645-16050	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.2	08/1989 - 10/1991	1
88645-10020	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.1	08/1989 - 10/1991	1
88645H - SWITCH, PRESSURE NO.1
88645-12050	AE92,EE90..RHD..(3D,5D) NO.1	05/1987 - 12/1987	1
88645-12030	AE92,EE90..SA NO.2	08/1988 - 12/1988	1
88645-10020	AE92,EE90..SA NO.1	08/1988 - 08/1989	1
88645-16050	AE92,EE90..SA NO.2	12/1988 - 08/1989	1
88645-10020	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.1	10/1991 - 08/1993	1
88645-16050	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.2	10/1991 - 08/1993	1
88645-16050	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.2	08/1989 - 10/1991	1
88645-10020	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.1	08/1989 - 10/1991	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12050	AE92..RHD..(GT,GTI)	05/1987 - 08/1989	1
88703-12050	AE92..GT	08/1989 - 08/1993	1
88704 - HOSE SUB-ASSY, SUCTION
88704-12050	AE92..RHD..(GT,GTI)	05/1987 - 08/1993	1
88707 - PIPE SUB-ASSY, SUCTION
88704-12180	AE92,EE90..RHD	06/1991 - 08/1993	1
88704-12180	AE92,EE90..SA	09/1990 - 06/1991	1
88704-12180	AE92,EE90..RHD	05/1987 - 09/1990	1
88710 - TUBE ASSY, AIR CONDITIONER
88706-12040	AE92,EE90..RHD..(3D,5D) DEALER OPT	05/1987 - 12/1987	1
88706-12020	AE92,EE90..SA	08/1988 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12470	AE92..RHD..(GT,GTI)	05/1987 - 08/1989	1
88711-12470	AE92..GT	08/1989 - 08/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12630	AE92..RHD..(GT,GTI)	05/1987 - 08/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-12280	AE92,EE90..RHD	05/1987 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12260	AE92,EE90..RHD	05/1987 - 08/1993	1
Common parts
88718-1A100
88718-1A120
88718-1A150
91651-40614
91651-60625
91651-60835
91651-60850
91651-60860

ILLUST NO. 2 OF 3(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-12050	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88453-12050	AE92,EE90	06/1991 - 08/1993	1
88453-12050	AE92,EE90	05/1987 - 09/1990	1
88453A - FAN, COOLING
88453-12050	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88453-12050	AE92,EE90	06/1991 - 08/1993	1
88453-12050	AE92,EE90	05/1987 - 09/1990	1
88454A - SHROUD, FAN
88454-12100	AE92,EE90	06/1991 - 08/1993	1
88454-12100	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88454-12100	AE92,EE90	05/1987 - 09/1990	1
88454A - SHROUD, FAN
88454-12100	AE92,EE90	06/1991 - 08/1993	1
88454-12100	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88454-12100	AE92,EE90	05/1987 - 09/1990	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE92,EE90 NO.1	05/1987 - 08/1989	2
88467-14070	AE92,EE90..SA NO.1	08/1989 - 08/1993	2
88467-20040	AE92,EE90 NO.2	05/1987 - 08/1989	2
88467-20040	AE92,EE90..SA NO.2	08/1989 - 08/1993	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	AE92,EE90	05/1987 - 09/1990	1
88550-12120	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88550-12120	AE92,EE90	06/1991 - 08/1993	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	AE92,EE90	05/1987 - 09/1990	1
88550-12120	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88550-12120	AE92,EE90	06/1991 - 08/1993	1
88590 - BLOWER ASSY, W/SHROUD
88590-12170	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88590-12170	AE92,EE90	05/1987 - 08/1989	1
88590-12170	AE92,EE90..SA	06/1991 - 08/1993	1
88590-12170	AE92,EE90..SA	08/1989 - 09/1990	1
88590 - BLOWER ASSY, W/SHROUD
88590-12170	AE92,EE90..GEN,SA	09/1990 - 06/1991	1
88590-12170	AE92,EE90	05/1987 - 08/1989	1
88590-12170	AE92,EE90..SA	06/1991 - 08/1993	1
88590-12170	AE92,EE90..SA	08/1989 - 09/1990	1
88596C - PLATE, CAUTION, NO.2
88723-12030	AE92;EE90..RHD;EE90..3FC..GCC	07/1989 - 08/1989	1
88723-12030	AE92,EE90..SA	09/1990 - 06/1991	1
88723-12030	AE92,EE90	08/1989 - 09/1990	1
88723-12030	AE92,EE90	06/1991 - 08/1993	1
Common parts
88467-30270
88688-12580
88688-12780
88892-12190
90099-04376
90119-06336
90119-06440
90159-60128
90179-06032

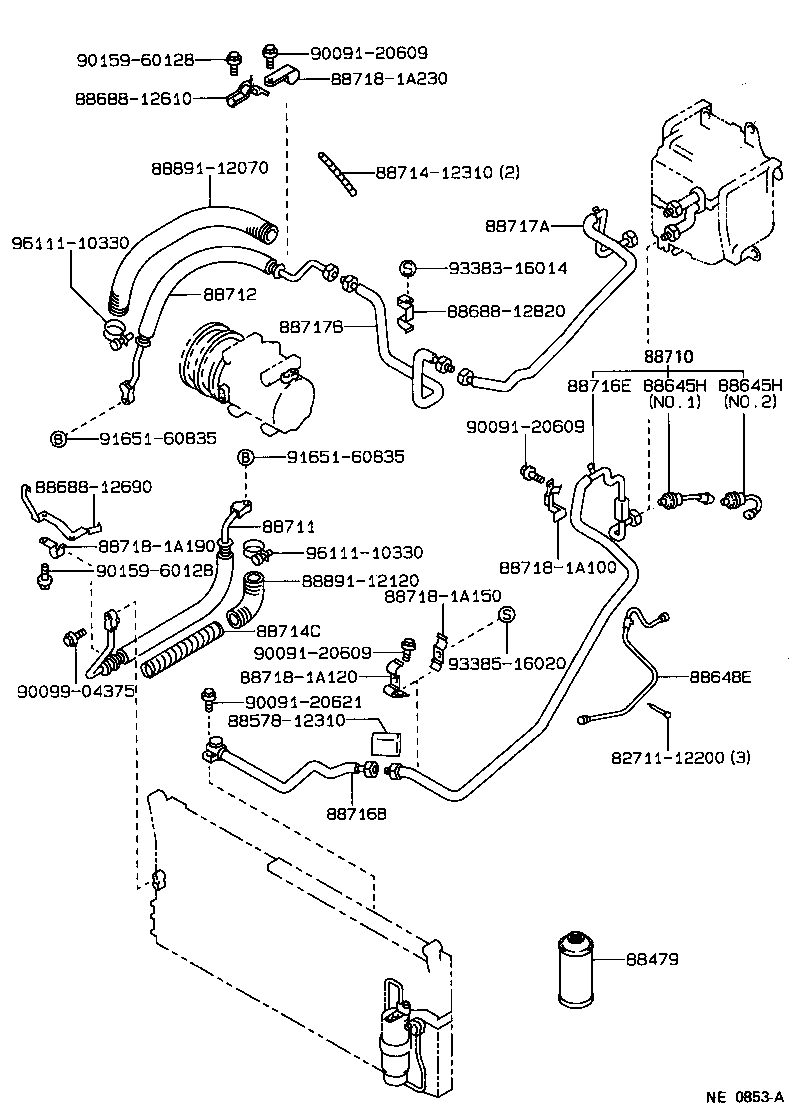

ILLUST NO. 3 OF 3(8705- )RHD..GT,GTI

Click highlighted areas on diagram

DEALER OPT

Part #	Description	Period	Qty
88645H - SWITCH, PRESSURE NO.1
88645-12050	AE92,EE90..RHD..(3D,5D) NO.1	05/1987 - 12/1987	1
88645-12030	AE92,EE90..SA NO.2	08/1988 - 12/1988	1
88645-10020	AE92,EE90..SA NO.1	08/1988 - 08/1989	1
88645-16050	AE92,EE90..SA NO.2	12/1988 - 08/1989	1
88645-10020	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.1	10/1991 - 08/1993	1
88645-16050	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.2	10/1991 - 08/1993	1
88645-16050	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.2	08/1989 - 10/1991	1
88645-10020	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.1	08/1989 - 10/1991	1
88645H - SWITCH, PRESSURE NO.1
88645-12050	AE92,EE90..RHD..(3D,5D) NO.1	05/1987 - 12/1987	1
88645-12030	AE92,EE90..SA NO.2	08/1988 - 12/1988	1
88645-10020	AE92,EE90..SA NO.1	08/1988 - 08/1989	1
88645-16050	AE92,EE90..SA NO.2	12/1988 - 08/1989	1
88645-10020	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.1	10/1991 - 08/1993	1
88645-16050	EE90..LHD..GEN;AE92,EE90..GCC,SA NO.2	10/1991 - 08/1993	1
88645-16050	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.2	08/1989 - 10/1991	1
88645-10020	AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN NO.1	08/1989 - 10/1991	1
88710 - TUBE ASSY, AIR CONDITIONER
88706-12040	AE92,EE90..RHD..(3D,5D) DEALER OPT	05/1987 - 12/1987	1
88706-12020	AE92,EE90..SA	08/1988 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12470	AE92..RHD..(GT,GTI)	05/1987 - 08/1989	1
88711-12470	AE92..GT	08/1989 - 08/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12630	AE92..RHD..(GT,GTI)	05/1987 - 08/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-12280	AE92,EE90..RHD	05/1987 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12260	AE92,EE90..RHD	05/1987 - 08/1993	1
Common parts
82711-12200
88578-12310
88688-12610
88688-12690
88688-12820
88714-12310
88718-1A100
88718-1A120
88718-1A150
88718-1A190
88718-1A230
88891-12070
88891-12120
90091-20609
90091-20621
90099-04375
90159-60128
91651-60835
93383-16014
93385-16020
96111-10330
