AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb
Production
Aug 1988
-
Aug 1993
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )AE92

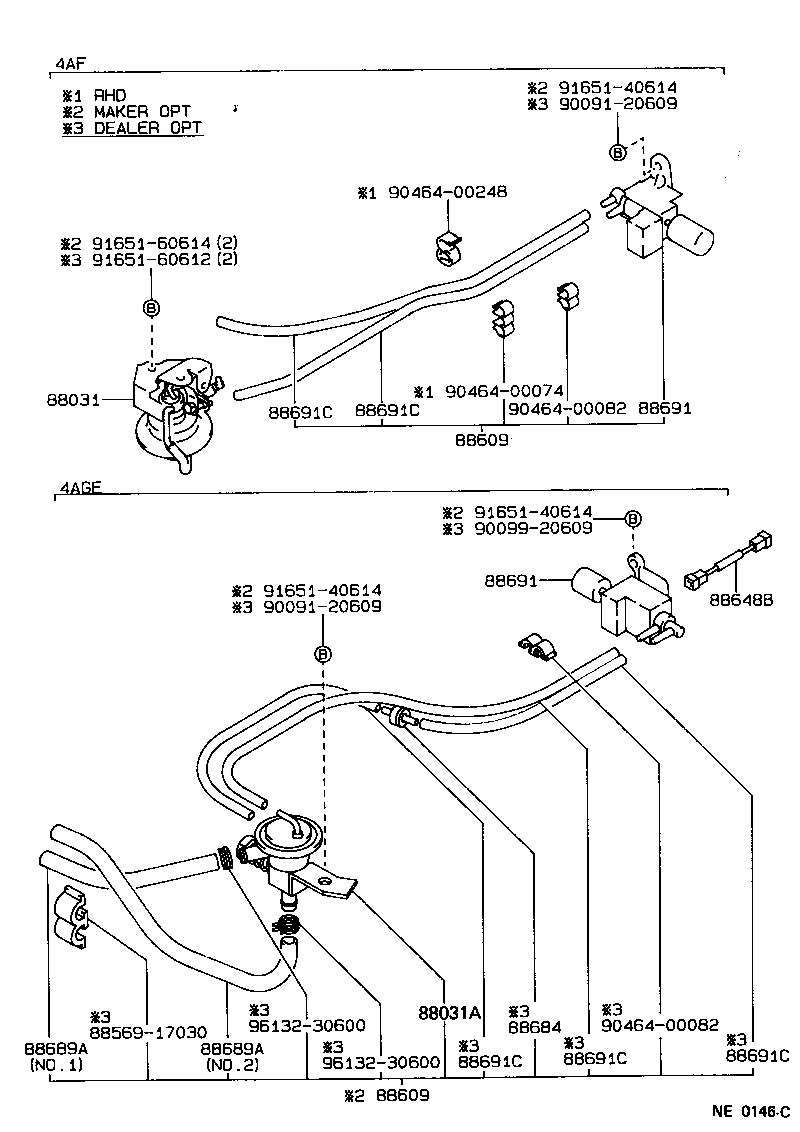

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-12020 |
AE92..GT,GTI |
1 | ||
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88609-12470 |
AE92..RHD..(GT,GTI) |
1 | ||
| 88609 - DEVICE SUB-ASSY, IDLE UP | ||||
| 88609-12470 |
AE92..RHD..(GT,GTI) |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12220 |
AE92..RHD..(GT,GTI) L=260,NO.2 |
1 | ||
| 88689-12210 |
AE92..RHD..(GT,GTI) NO.1 |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-12220 |
AE92..RHD..(GT,GTI) L=260,NO.2 |
1 | ||
| 88689-12210 |
AE92..RHD..(GT,GTI) NO.1 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12530 |
AE92..GT |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12530 |
AE92..GT |
1 | ||
| Common parts | ||||
| 88569-17030 | ||||
| 90091-20609 | ||||
| 90099-20609 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 96132-30600 | ||||
