Toyota Corolla cp/hb AE92 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
55905B - KNOB, HEATER CONTROL, NO.2
55905-12130	AE92,EE90	05/1987 - 08/1993	4
55905B - KNOB, HEATER CONTROL, NO.2
55905-12130	AE92,EE90	05/1987 - 08/1993	4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12230	AE92,EE90..RHD..(3D,5D)	05/1987 - 08/1989	1
55906-12230	AE92,EE90..RHD..(3D,5D)	08/1989 - 01/1990	1
55906-12250	AE92,EE90..SA	01/1990 - 02/1990	1
55906-12250	AE92,EE90..RHD..(3D,5D)	02/1990 - 08/1993	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12320	AE92,EE90..SA	01/1990 - 02/1990	1
55907-12260	AE92,EE90..RHD..(3D,5D)	08/1989 - 01/1990	1
55907-12260	AE92,EE90..RHD..(3D,5D)	05/1987 - 02/1988	1
55907-12260	AE92,EE90..RHD..(3D,5D)	08/1988 - 08/1989	1
55907-12320	AE92,EE90..RHD..(3D,5D)	02/1990 - 08/1993	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12190	AE92,EE90..3D,5D	05/1987 - 08/1989	1
55908-12230	AE92,EE90..3D,5D	02/1990 - 08/1993	1
55908-12190	AE92,EE90..3D,5D	08/1989 - 12/1989	1
55908-12230	EE90..LHD..GEN;AE92,EE90..GCC,SA	01/1990 - 02/1990	1
55908-12190	AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)	12/1989 - 01/1990	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12170	AE92,EE90..3D,5D	05/1987 - 02/1988	1
55909-12170	AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)	12/1989 - 01/1990	1
55909-12170	AE92,EE90..3D,5D	08/1989 - 12/1989	1
55909-12190	EE90..LHD..GEN;AE92,EE90..GCC,SA	01/1990 - 02/1990	1
55909-12170	AE92,EE90..3D,5D	08/1988 - 08/1989	1
55909-12190	AE92,EE90..3D,5D	02/1990 - 08/1993	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12440	AE92,EE90..RHD..(3D,5D)	08/1989 - 01/1990	1
55910-12520	AE92,EE90..RHD..(3D,5D) W(*BV & AIR CONDITIONER)	05/1987 - 12/1987	1
55910-12440	AE92,EE90..SA	08/1988 - 08/1989	1
55910-12441	AE92,EE90..SA	01/1990 - 08/1993	1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010	AE92,EE90	08/1988 - 08/1989	4
55933-10010	AE92,EE90	08/1989 - 11/1989	4
55933-10010	AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)	12/1989 - 01/1990	4
55933-10010	AE92,EE90	05/1987 - 02/1988	4
55933-10010	AE92,EE90..3D,5D	11/1989 - 12/1989	4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010	AE92,EE90	08/1988 - 08/1989	4
55933-10010	AE92,EE90	08/1989 - 11/1989	4
55933-10010	AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)	12/1989 - 01/1990	4
55933-10010	AE92,EE90	05/1987 - 02/1988	4
55933-10010	AE92,EE90..3D,5D	11/1989 - 12/1989	4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010	AE92,EE90	08/1988 - 08/1989	4
55933-10010	AE92,EE90	08/1989 - 11/1989	4
55933-10010	AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)	12/1989 - 01/1990	4
55933-10010	AE92,EE90	05/1987 - 02/1988	4
55933-10010	AE92,EE90..3D,5D	11/1989 - 12/1989	4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010	AE92,EE90	08/1988 - 08/1989	4
55933-10010	AE92,EE90	08/1989 - 11/1989	4
55933-10010	AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)	12/1989 - 01/1990	4
55933-10010	AE92,EE90	05/1987 - 02/1988	4
55933-10010	AE92,EE90..3D,5D	11/1989 - 12/1989	4
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-12100	AE92,EE90..RHD..(3D,5D)	05/1987 - 12/1987	1
Common parts
55933-12020
55939-16010
82711-14780
90167-50020
90480-13020
93566-14512
93567-55016
Linked diagrams
8302
8401

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12170	AE92,EE90..RHD..(3D,5D)	05/1987 - 08/1993	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12230	AE92,EE90..SA W(AIR CONDITIONER)	08/1989 - 08/1993	1
55844-12210	AE92,EE90..SA	08/1988 - 08/1993	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-12110	AE92,EE90..RHD..(3D,5D)	05/1987 - 08/1993	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-12090	AE92,EE90..RHD..(3D,5D)	05/1987 - 08/1993	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-12071	AE92,EE90	08/1989 - 08/1993	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12110	AE92,EE90..SA	08/1988 - 08/1993	1
Common parts
90159-60125
90480-26022
93567-55016

AE92R-AHMVFN (1988)

ILLUST NO. 1 OF 2(8705- )

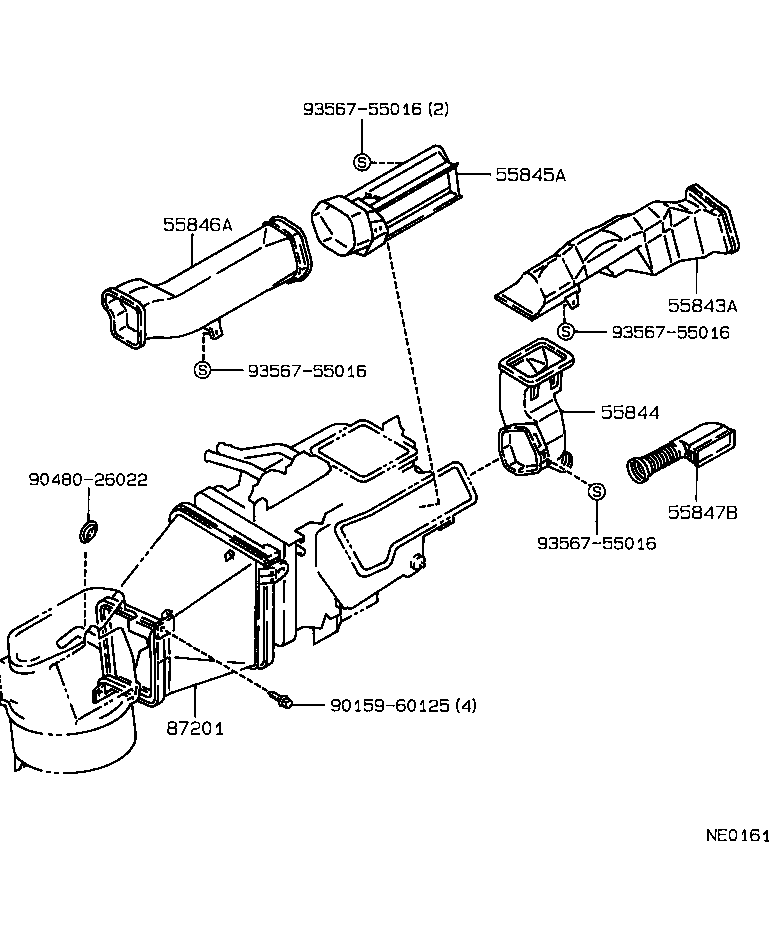

ILLUST NO. 2 OF 2(8705- )RHD..3D,5D
