8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

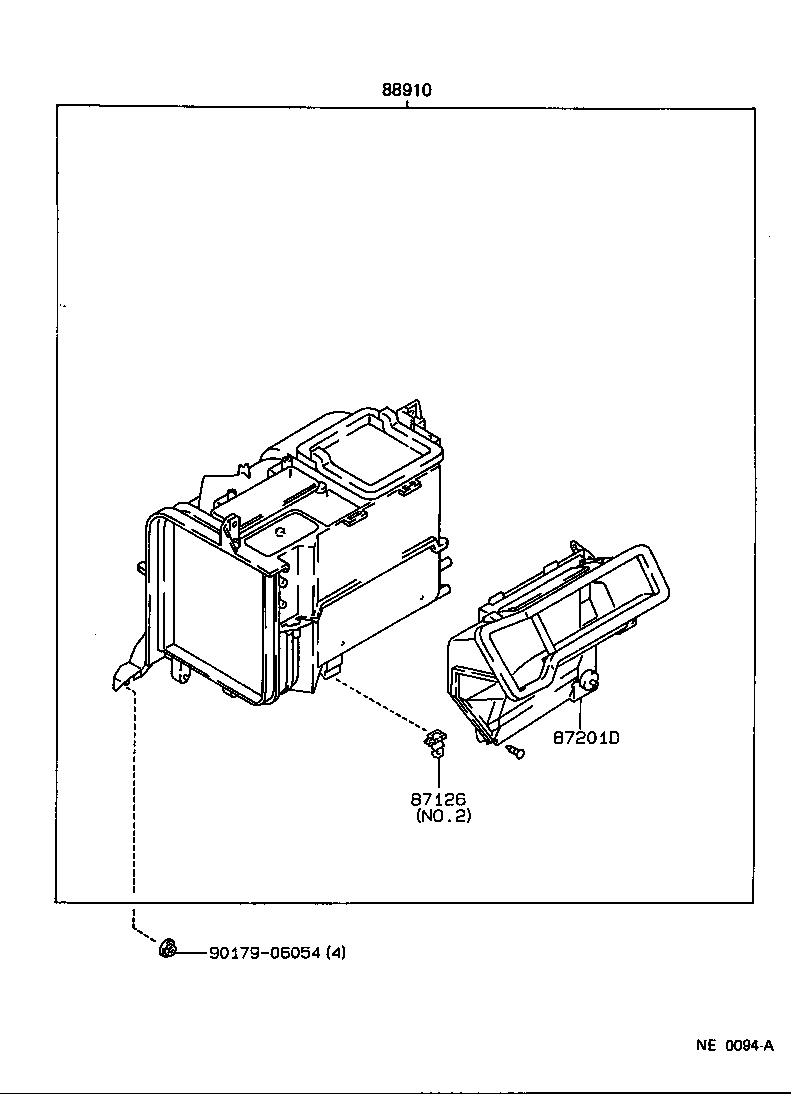

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

HEATER

diagram

Part #	Description	Period	Qty	Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12380	AE92,EE90..RHD	05/1987 - 08/1993	1
87126 - CLAMP, HEATER CONTROL
87126-12040	EE90..SA;AE92..2D,5D NO.1	05/1987 - 08/1989	1
87126-12050	EE90..SA;AE92..2D,5D NO.2	05/1987 - 08/1989	2
87126-12040	AE92,EE90..SA;AE92..LHD..GEN NO.1	08/1989 - 08/1993	1
87126-12050	EE90..SA;AE92..RHD..(2D,5D) NO.2	08/1989 - 08/1993	2
87150 - RADIATOR ASSY, HEATER
87150-12370	AE92,EE90..RHD..(3D,5D)	05/1987 - 08/1993	1
87201D - DUCT SUB-ASSY, AIR
87201-12260	AE92,EE90..RHD..(3D,5D)	03/1989 - 01/1990	1
87201-12150	AE92,EE90..RHD..(3D,5D)	05/1987 - 03/1989	1
87201-12261	AE92,EE90..SA	01/1990 - 08/1993	1
87211E - DUCT, AIR
87211-12120	AE92,EE90..RHD	05/1987 - 07/1988	1
Common parts
90179-06054

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

BOOST VENTILATOR

diagram

Part #	Description	Period	Qty	Price
87126 - CLAMP, HEATER CONTROL
87126-12040	EE90..SA;AE92..2D,5D NO.1	05/1987 - 08/1989	1
87126-12050	EE90..SA;AE92..2D,5D NO.2	05/1987 - 08/1989	2
87126-12040	AE92,EE90..SA;AE92..LHD..GEN NO.1	08/1989 - 08/1993	1
87126-12050	EE90..SA;AE92..RHD..(2D,5D) NO.2	08/1989 - 08/1993	2
87201D - DUCT SUB-ASSY, AIR
87201-12260	AE92,EE90..RHD..(3D,5D)	03/1989 - 01/1990	1
87201-12150	AE92,EE90..RHD..(3D,5D)	05/1987 - 03/1989	1
87201-12261	AE92,EE90..SA	01/1990 - 08/1993	1
Common parts
90179-06054

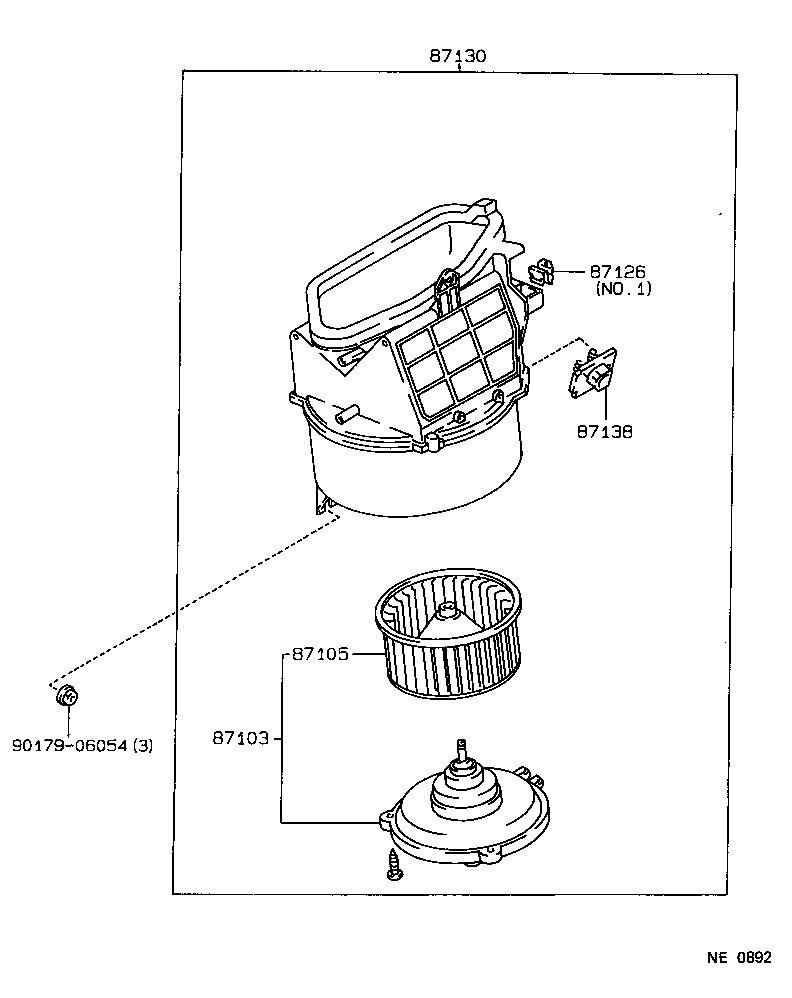

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12010	AE92,EE90..RHD	05/1987 - 08/1993	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010	AE92,EE90..RHD	05/1987 - 08/1993	1
87126 - CLAMP, HEATER CONTROL
87126-12040	EE90..SA;AE92..2D,5D NO.1	05/1987 - 08/1989	1
87126-12050	EE90..SA;AE92..2D,5D NO.2	05/1987 - 08/1989	2
87126-12040	AE92,EE90..SA;AE92..LHD..GEN NO.1	08/1989 - 08/1993	1
87126-12050	EE90..SA;AE92..RHD..(2D,5D) NO.2	08/1989 - 08/1993	2
87130 - BLOWER ASSY, HEATER, FRONT
87130-12250	AE92,EE90..RHD	05/1987 - 08/1993	1
87138 - RESISTOR, HEATER BLOWER
87138-12120	AE92,EE90	05/1987 - 08/1993	1
Common parts
90179-06054
