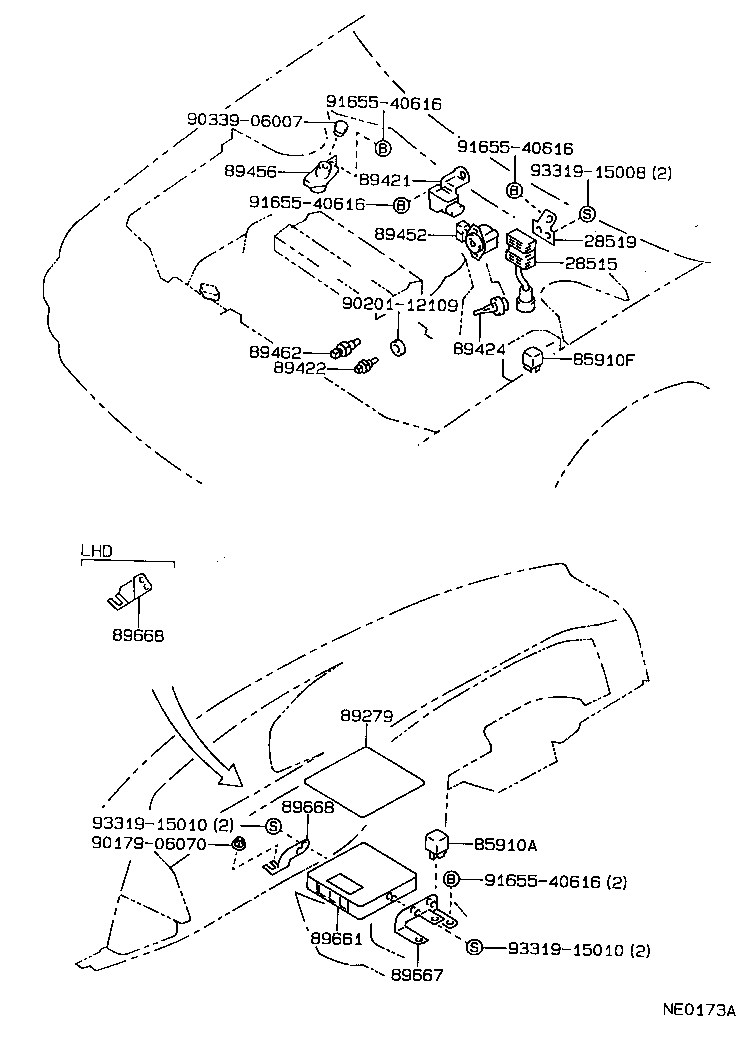

Toyota Corolla cp/hb AE92 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
28515 - RESISTOR, SOLENOID
28515-16010	4AGE..AE92	05/1987 - 08/1989	1
28519 - BRACKET, SOLENOID RESISTOR
28519-16030	4AGE..AE92	05/1987 - 08/1989	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010	AE92..GT,GTI	05/1987 - 08/1993	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02006	AE92..GT,GTI	05/1987 - 08/1993	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12040	AE92..GT,GTI	08/1989 - 08/1993	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010	AE92..GT,GTI	08/1988 - 08/1993	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	AE92..GT	08/1989 - 08/1993	2
89424-12010	AE92..GT,GTI	05/1987 - 08/1989	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12040	AE92..GT,GTI NIPPONDENSO	05/1987 - 03/1989	1
89452-12050	AE92..GT,GTI AISAN	05/1987 - 03/1989	1
89456 - RESISTOR, VARIABLE
89456-12030	AE92..GT,GTI	05/1987 - 08/1993	1
89462 - SWITCH, START INJECTOR TIME
89462-20030	AE92..GT,GTI	08/1988 - 08/1993	1
89661 - COMPUTER, ENGINE CONTROL
89661-12190	AE92..GT,GTI	05/1987 - 08/1989	1
89661-12590	AE92..GT	09/1991 - 11/1991	1
89661-12860	AE92..GT,GTI	11/1991 - 08/1993	1
89661-12590	AE92..GT,GTI	08/1989 - 09/1991	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12020	AE92..GT,GTI	05/1987 - 08/1993	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12030	AE92..RHD..(GT,GTI)	05/1987 - 08/1993	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12030	AE92..RHD..(GT,GTI)	05/1987 - 08/1993	1
Common parts
90179-06070
90201-12109
90339-06007
91655-40616
93319-15008
93319-15010

AE92R-AHMVFN (1988)
