AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb

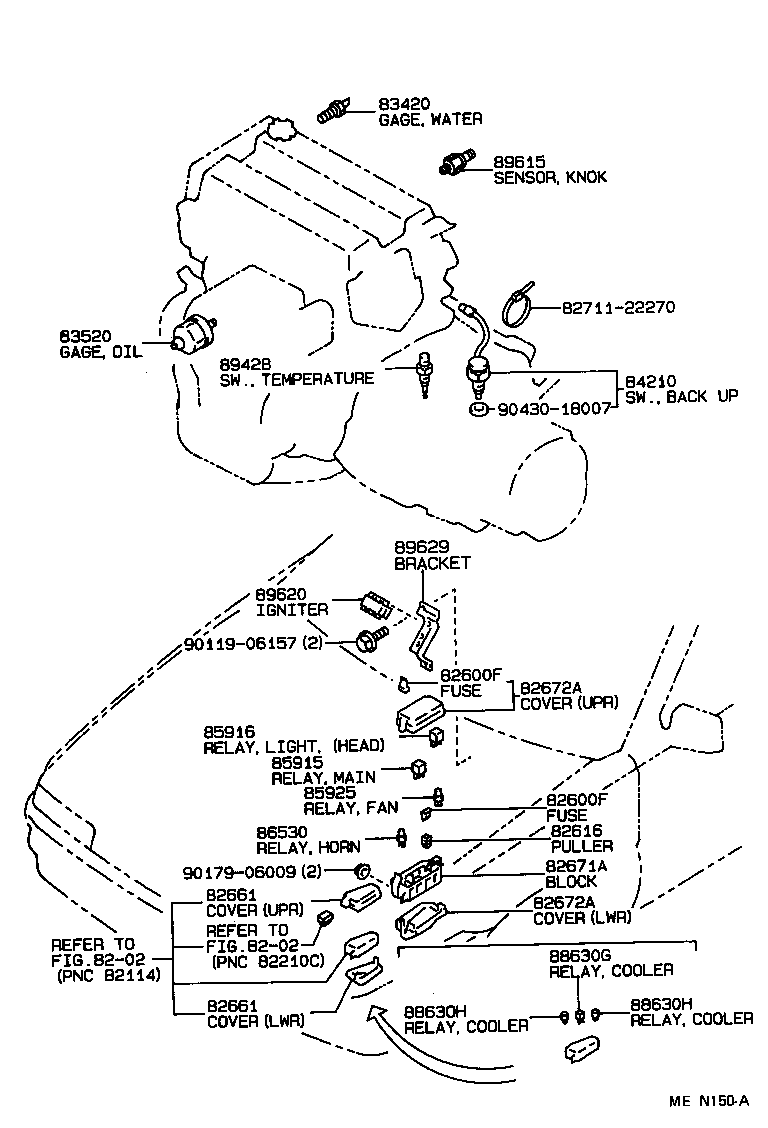

ILLUST NO. 1 OF 5(8705- )GT,GTI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90080-82014 |
AE92,EE90..SA 20A,YELLOW |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 90080-82015 |
AE92,EE90..SA 7.5A,BROWN |
3 | ||
| 90080-82005 |
AE92,EE90..SA 30A,GREEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90080-82014 |
AE92,EE90..SA 20A,YELLOW |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 90080-82015 |
AE92,EE90..SA 7.5A,BROWN |
3 | ||
| 90080-82005 |
AE92,EE90..SA 30A,GREEN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE92,EE90..3FC,4F,5F |
1 | ||
| 82616-12010 |
AE92,EE90..3FC,4F,5F |
1 | ||
| 82616-12010 |
AE92,EE90 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE92,EE90 LWR |
1 | ||
| 82661-12140 |
AE92,EE90 UPR |
1 | ||
| 82661-12140 |
AE92;EE90..RHD;EE90..LHD..XL UPR |
1 | ||
| 82661-12160 |
AE92;EE90..RHD;EE90..LHD..XL LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE92,EE90 LWR |
1 | ||
| 82661-12140 |
AE92,EE90 UPR |
1 | ||
| 82661-12140 |
AE92;EE90..RHD;EE90..LHD..XL UPR |
1 | ||
| 82661-12160 |
AE92;EE90..RHD;EE90..LHD..XL LWR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE92..GT;AE92..5F..GEN |
1 | ||
| 82671-12080 |
AE92..GT;AE92..GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE92..GT,GTI UPR |
1 | ||
| 82672-12070 |
AE92,EE90 LWR |
1 | ||
| 82672-12190 |
AE92..GT UPR |
1 | ||
| 82672-12070 |
AE92,EE90..3FC,4F,5F LWR |
1 | ||
| 82672-12070 |
AE92,EE90..SA LWR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE92..GT,GTI UPR |
1 | ||
| 82672-12070 |
AE92,EE90 LWR |
1 | ||
| 82672-12190 |
AE92..GT UPR |
1 | ||
| 82672-12070 |
AE92,EE90..3FC,4F,5F LWR |
1 | ||
| 82672-12070 |
AE92,EE90..SA LWR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE92..GT,GTI |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14023 |
AE92..GT,GTI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AE92..GT,GTI |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE92,EE90..3D,5D |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE92,EE90 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE92,EE90 HEAD |
1 | ||
| 90987-02004 |
AE92,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE92;EE90..GEN,SA;EE90..5F..GCC |
1 | ||
| 90987-03001 |
AE92,EE90 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE92,EE90 NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92,EE90 MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE92,EE90 |
1 | ||
| 88630-32010 |
AE92,EE90..GEN,SA |
1 | ||
| 88630-32010 |
AE92,EE90 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE92,EE90..GEN,SA |
2 | ||
| 90987-02004 |
AE92,EE90 |
2 | ||
| 90987-02004 |
AE92,EE90 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE92,EE90..GEN,SA |
2 | ||
| 90987-02004 |
AE92,EE90 |
2 | ||
| 90987-02004 |
AE92,EE90 |
2 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE92 |
1 | ||
| 89428-15011 |
AE92..SA |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
AE92..GT,GTI MATSUSITA |
1 | ||
| 89615-12050 |
AE92..GT,GTI NIPPONDENSO |
1 | ||
| 89615-12020 |
AE92..GT,GTI |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
AE92..GT,GTI |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-12030 |
AE92..RHD..(GT,GTI) |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90119-06157 | ||||
| 90179-06009 | ||||
| 90430-18007 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80114 |
AE92..GT |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 83361-32020 |
AE92,EE90 |
1 | ||
| 83361-32020 |
AE92,EE90 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12060 |
AE92,EE90..SA |
2 | ||
| 84231-16060 |
AE92,EE90..3D,5D |
2 | ||
| 84231-16060 |
AE92,EE90..3D,5D |
2 | ||
| 84231-12060 |
AE92,EE90..3D,5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE92,EE90..5D |
2 | ||
| 84231-16060 |
AE92,EE90..5D |
2 | ||
| 84231-12060 |
AE92,EE90..SA |
2 | ||
| 84231-12060 |
AE92,EE90..5D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE92,EE90 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE92..GT;EE90..5D..(GCC,GEN) FR |
1 | ||
| 84810-32070 |
AE92..GT;EE90..3FC;EE90..5F..XL..(GCC,GEN) FR |
1 | ||
| 84810-2006003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE92..GT;EE90..5D..(GCC,GEN) FR |
1 | ||
| 84810-32070 |
AE92..GT;EE90..3FC;EE90..5F..XL..(GCC,GEN) FR |
1 | ||
| 84810-2006003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE92..GT;EE90..5D..(GCC,GEN) FR |
1 | ||
| 84810-32070 |
AE92..GT;EE90..3FC;EE90..5F..XL..(GCC,GEN) FR |
1 | ||
| 84810-2006003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE92..GT;EE90..5D..(GCC,GEN) FR |
1 | ||
| 84810-32070 |
AE92..GT;EE90..3FC;EE90..5F..XL..(GCC,GEN) FR |
1 | ||
| 84810-2006003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
3 | ||
| 84810-32070 |
AE92..GT;EE90..5D..(GCC,GEN) FR |
1 | ||
| 84810-32070 |
AE92..GT;EE90..3FC;EE90..5F..XL..(GCC,GEN) FR |
1 | ||
| 84810-2006003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213003 |
AE92,EE90..RHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12220 |
AE92..GT;EE90..3FC;EE90..RHD..5F..XL..GEN |
1 | ||
| 84820-12220 |
AE92..GT;EE90..RHD..5D..GEN |
1 | ||
| 84820-12221 |
AE92..GT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213003 |
AE92,EE90..RHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12220 |
AE92..GT;EE90..3FC;EE90..RHD..5F..XL..GEN |
1 | ||
| 84820-12220 |
AE92..GT;EE90..RHD..5D..GEN |
1 | ||
| 84820-12221 |
AE92..GT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1213003 |
AE92,EE90..RHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 84820-12220 |
AE92..GT;EE90..3FC;EE90..RHD..5F..XL..GEN |
1 | ||
| 84820-12220 |
AE92..GT;EE90..RHD..5D..GEN |
1 | ||
| 84820-12221 |
AE92..GT |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AE92..GEN;AE92,EE90..GL,GT |
1 | ||
| 84870-20080 |
AE92..GEN;AE92,EE90..GL,GT |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92,EE90..GL,GT SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92..GT;EE90..3FC..GL SHADOW GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-19015 |
AE92..GT;EE90..5D..(GL,XL)..GEN |
1 | ||
| 84931-20071 |
AE92..GT,GTI;EE90..(GL,XL)..GEN |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12071 |
AE92..GT;EE90..RHD..5D..(GL,XL)..GEN |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||

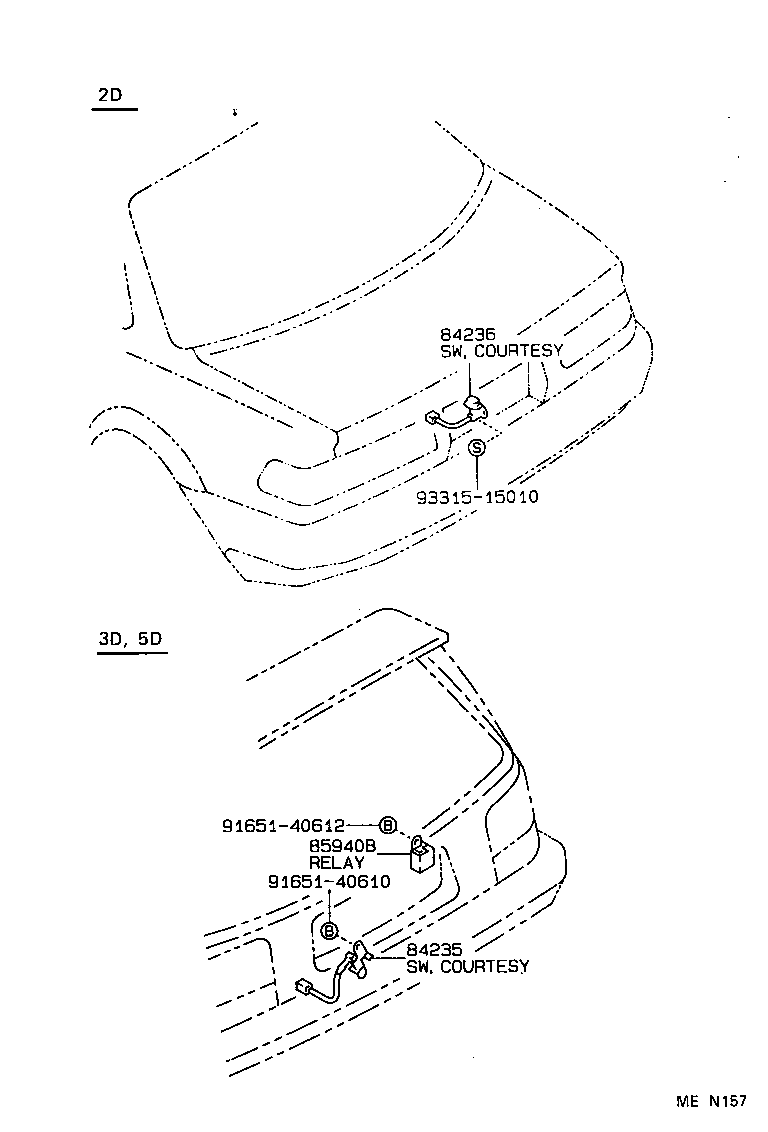

ILLUST NO. 5 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
EE90..GCC;EE90..3D..STD;AE92..RHD..GTI;AE92..5D..(GT,SR5,XL);EE90..RHD..5D..(GL,XL);EE90..LHD..5D..5F..XL..GEN |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12030 |
AE92,EE90..3D,5D |
1 | ||
| 85940-12031 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||

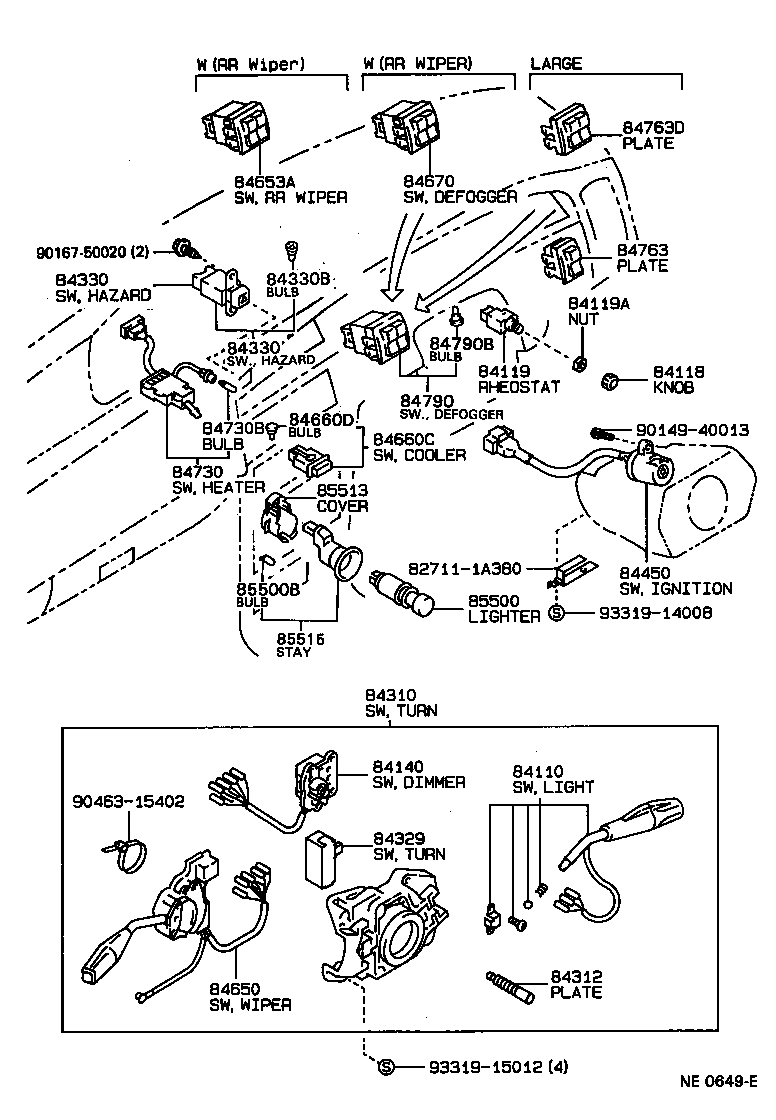

ILLUST NO. 2 OF 5(8705-8908)3D,5D ; (8908- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80005 |
AE92,EE90..RHD..(3D,5D) TOKAIRIKA |
1 | ||
| 84112-80007 |
AE92,EE90..RHD..(3D,5D) MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE92..GT,GTI,SR5;EE90..(GL,XL)..(GCC,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12220 |
AE92,EE90..RHD TOKAIRIKA |
1 | ||
| 84140-12210 |
AE92,EE90..RHD MATSUSHITA |
1 | ||
| 84140-12320 |
AE92,EE90..RHD MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12890 |
AE92..GT |
1 | ||
| 84310-12830 |
AE92,EE90..RHD..(GL,GT) |
1 | ||
| 84310-12890 |
AE92..GT W(*IW) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92,EE90 TOKAIRIKA |
1 | ||
| 84312-12040 |
AE92,EE90 TOKAIRIKA |
1 | ||
| 84312-12050 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE92,EE90..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| 84332-12290 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| 84332-12290 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10210 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| 84999-10190 |
AE92,EE90..RHD..(3D,5D) 12V 0.87W |
1 | ||
| 84999-10210 |
AE92,EE90..SA |
1 | ||
| 84999-10190 |
AE92,EE90..SA 12V 0.87W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE92,EE90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12720 |
AE92..GT TOKAIRIKA |
1 | ||
| 84652-12710 |
AE92..GT MATSUSHITA |
1 | ||
| 84652-12720 |
AE92..GT W(*IW),TOKAIRIKA |
1 | ||
| 84652-12710 |
AE92..GT W(*IW),MATSUSHITA |
1 | ||
| 84652-12460 |
AE92..RHD..XL..GEN;AE92,EE90..RHD..(GL,GT) TOKAIRIKA |
1 | ||
| 84652-12450 |
AE92..RHD..XL..GEN;AE92,EE90..RHD..(GL,GT) MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE92,EE90..RHD |
1 | ||
| 84660-12120 |
EE90..SA;AE92..RHD |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1204001 |
AE92..GT BLACK,TRIM1# |
1 | ||
| 84670-1207001 |
AE92..GT BRACK,TRIM1# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE92,EE90..RHD..(3D,5D) W(AIR CONDITIONER) |
1 | ||
| 84732-12230 |
AE92,EE90..SA W(AIR CONDITIONER) |
1 | ||
| 84732-12240 |
EE90..SA;AE92..RHD..(2D,5D) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92,EE90 14V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE92,EE90 |
1 | ||
| 85513-12020 |
AE92,EE90..3D,5D |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE92,EE90..3D,5D |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
ILLUST NO. 3 OF 5(8705- )3D,5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE92,EE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90080-82014 |
AE92,EE90..SA 20A,YELLOW |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 90080-82015 |
AE92,EE90..SA 7.5A,BROWN |
3 | ||
| 90080-82005 |
AE92,EE90..SA 30A,GREEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90080-82014 |
AE92,EE90..SA 20A,YELLOW |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 90080-82015 |
AE92,EE90..SA 7.5A,BROWN |
3 | ||
| 90080-82005 |
AE92,EE90..SA 30A,GREEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE92..GT |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92,EE90 30A |
1 | ||
| 82650-20011 |
AE92,EE90 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE92..GT,GTI;EE90..(GL,XL)..(GCC,GEN) 30A |
1 | ||
| 82650-20011 |
AE92..GT,GTI;EE90..RHD..5D..GEN 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE92,EE90 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE92,EE90 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE92,EE90 HEAD |
1 | ||
| 90987-02004 |
AE92,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02004 |
AE92..GT;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92..GT,GTI;EE90..5D..(GL,XL)..(GCC,GEN) MARUKO |
1 | ||
| 90987-02004 |
AE92..GT,GTI;EE90..5D..(GL,XL)..(GCC,GEN) NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92..GT;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) MARUKO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12020 |
AE92..RHD..(GT,GTI);EE90..RHD..(GL,XL)..GEN |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
