AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb

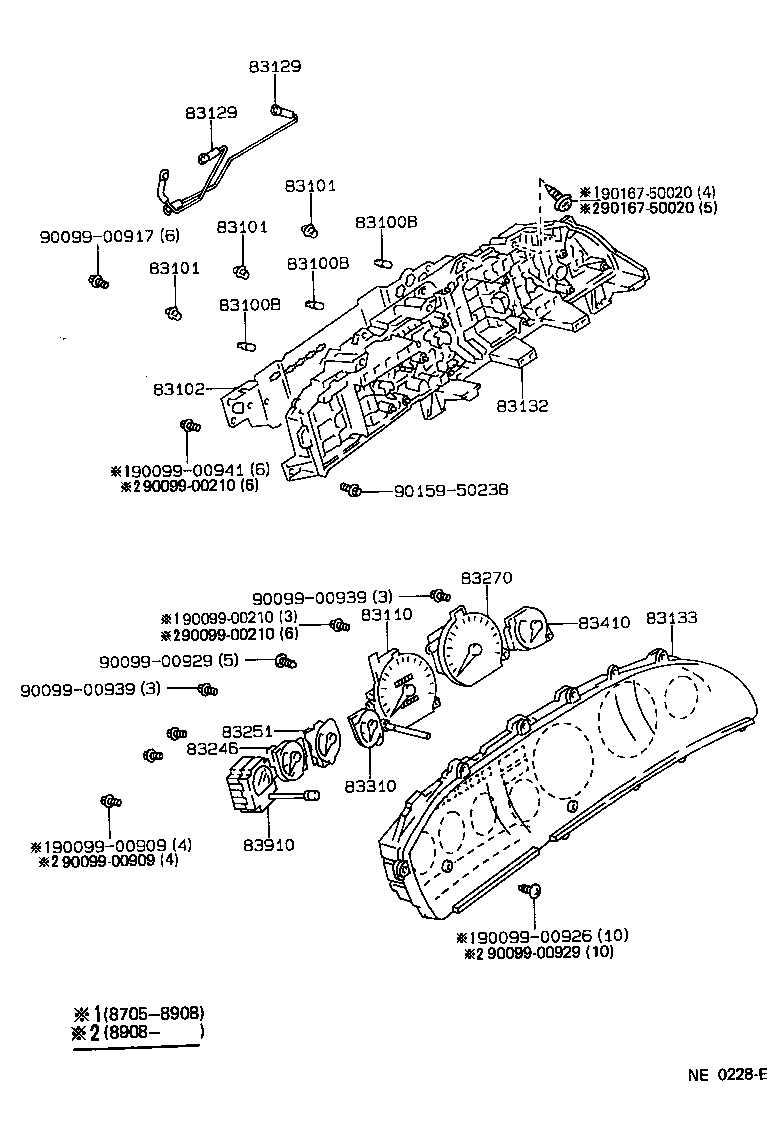

ILLUST NO. 1 OF 2(8705- )GT,GTI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE90..GL;AE92..(3D,5D)..5F 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE92..GT,GTI 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
EE90..RHD..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 1.2W W/O SOCKET |
8 | ||
| 99132-12034 |
EE90..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE90..GL;AE92..(3D,5D)..5F 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE92..GT,GTI 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
EE90..RHD..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 1.2W W/O SOCKET |
8 | ||
| 99132-12034 |
EE90..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE90..GL;AE92..(3D,5D)..5F 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE92..GT,GTI 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
EE90..RHD..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 1.2W W/O SOCKET |
8 | ||
| 99132-12034 |
EE90..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE92..GT,GTI 12V 3.4W BULB |
5 | ||
| 83101-14040 |
EE90..GL;AE92..(3D,5D)..5F 14V 1.4W BULB |
8 | ||
| 83101-14040 |
EE90..RHD..GL;AE92..(3D,5D)..5F..(GEN,SA) 14V 1.4W BULB |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE92..GT,GTI 12V 3.4W BULB |
5 | ||
| 83101-14040 |
EE90..GL;AE92..(3D,5D)..5F 14V 1.4W BULB |
8 | ||
| 83101-14040 |
EE90..RHD..GL;AE92..(3D,5D)..5F..(GEN,SA) 14V 1.4W BULB |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE92..GT,GTI 12V 3.4W BULB |
5 | ||
| 83101-14040 |
EE90..GL;AE92..(3D,5D)..5F 14V 1.4W BULB |
8 | ||
| 83101-14040 |
EE90..RHD..GL;AE92..(3D,5D)..5F..(GEN,SA) 14V 1.4W BULB |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E100 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83247-1E100 |
AE92..GT |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E090 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83110-1E090 |
AE92..GT |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12030 |
AE92..RHD..(GT,GTI) L=105,BLUE |
1 | ||
| 83129-12010 |
AE92..RHD..(GT,GTI) L=225,WHITE |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-12030 |
AE92..RHD..(GT,GTI) L=105,BLUE |
1 | ||
| 83129-12010 |
AE92..RHD..(GT,GTI) L=225,WHITE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A110 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83132-1A110 |
AE92..GT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A330 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-12170 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-12070 |
AE92..GT |
1 | ||
| 83251-12070 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A750 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83242-1A750 |
AE92..GT |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A150 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83243-1A150 |
AE92..GT |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A550 |
AE92..RHD..(GT,GTI) |
1 | ||
| 83244-1A550 |
AE92..GT |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12440 |
AE92..GT,GTI |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00926 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 90159-50238 | ||||
| 90167-50020 | ||||
ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
EE90;AE92..RHD..5F;AE92..LHD..GTI |
1 | ||
| 83710-12570 |
AE92,EE90..3D,5D |
1 | ||
| 83710-12461 |
AE92,EE90..MTM..SA |
2 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
EE90;AE92..RHD..5F;AE92..LHD..GTI |
1 | ||
| 83710-12570 |
AE92,EE90..3D,5D |
1 | ||
| 83710-12461 |
AE92,EE90..MTM..SA |
2 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12460 |
EE90;AE92..RHD..5F;AE92..LHD..GTI |
1 | ||
| 83710-12570 |
AE92,EE90..3D,5D |
1 | ||
| 83710-12461 |
AE92,EE90..MTM..SA |
2 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12440 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12440 |
AE92,EE90..RHD..(3D,5D) |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91651-40614 | ||||
