AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705-8908)3D,5D..GL,GT,STD,XL ; (8908- )3D,5D

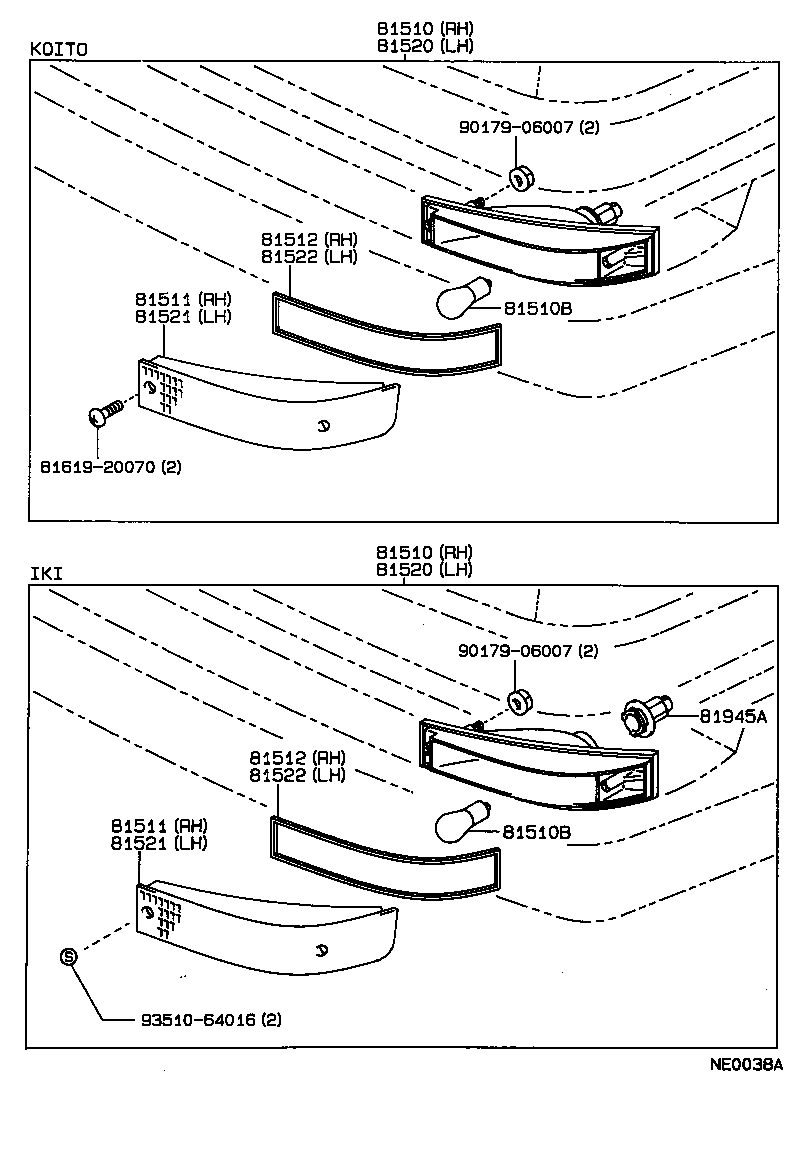

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 8161920070 81945A 9017906007 9017906007 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80053

AE92,EE90..SA

KOITO

 1
81510-80054

AE92,EE90..SA

IKI

 1
81510-80082

AE92,EE90

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80053

AE92,EE90..SA

KOITO

 1
81510-80054

AE92,EE90..SA

IKI

 1
81510-80082

AE92,EE90

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE92,EE90

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE92,EE90

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81511-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81511-12560

AE92,EE90..SA

KOITO

 1
81511-12590

AE92,EE90..SA

IKI

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81511-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81511-12560

AE92,EE90..SA

KOITO

 1
81511-12590

AE92,EE90..SA

IKI

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12560

AE92,EE90..SA

KOITO

 1
81512-12590

AE92,EE90..SA

IKI

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12560

AE92,EE90..SA

KOITO

 1
81512-12590

AE92,EE90..SA

IKI

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE92,EE90..SA

KOITO

 1
81520-80082

AE92,EE90

 1
81520-80054

AE92,EE90..SA

IKI

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE92,EE90..SA

KOITO

 1
81520-80082

AE92,EE90

 1
81520-80054

AE92,EE90..SA

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81521-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81521-12590

AE92,EE90..SA

IKI

 1
81521-12560

AE92,EE90..SA

KOITO

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81521-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81521-12590

AE92,EE90..SA

IKI

 1
81521-12560

AE92,EE90..SA

KOITO

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..SA

KOITO

 1
81512-12590

AE92,EE90..SA

IKI

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

KOITO

 1
81512-12590

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

IKI

 1
81512-12560

AE92,EE90..SA

KOITO

 1
81512-12590

AE92,EE90..SA

IKI

 1
81945A - SOCKET, BULB
81945-12010

AE92,EE90..3D,5D

 2
81945-12010

EE90..RHD;AE92..3D,5D;EE90..LHD..XL

 2
Common parts
81619-20070
90179-06007
93510-64016
