AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

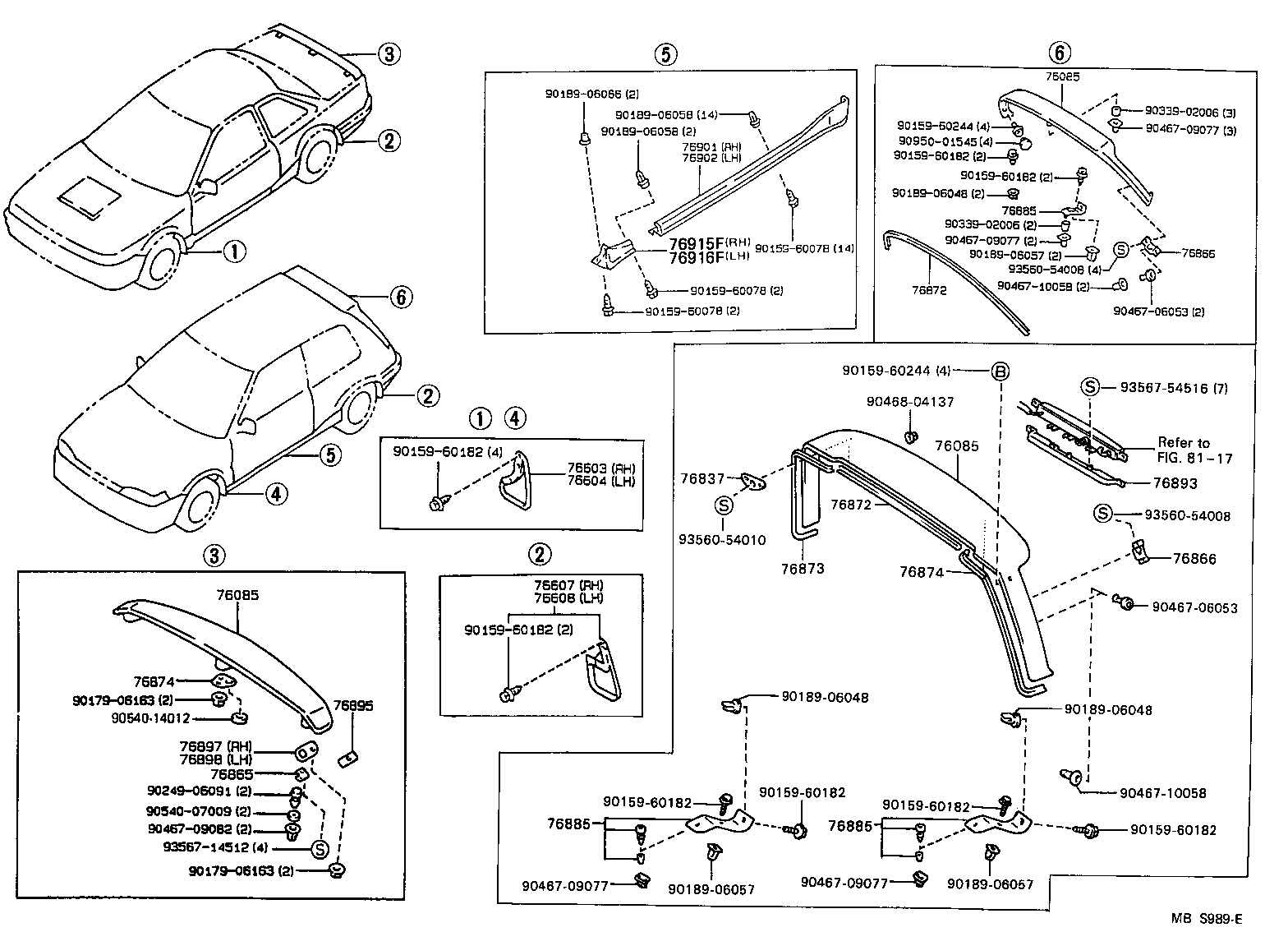

Click highlighted areas on diagram

diagram 76085 76085 76085 76603 76604 76607 76608 76837 76865 76866 76866 76872 76872 76873 76874 76874 76885 76885 76885 76893 76895 76897 76898 76901 76902 76915F 76916F 8117 9015960078 9015960078 9015960078 9015960182 9015960182 9015960182 9015960182 9015960182 9015960182 9015960182 9015960182 9015960244 9015960244 9017906163 9017906163 9018906048 9018906048 9018906048 9018906057 9018906057 9018906057 9018906058 9018906058 9018906066 9024906091 9033902006 9033902006 9046706053 9046706053 9046709077 9046709077 9046709077 9046709077 9046709082 9046710058 9046710058 9046804137 9054007009 9054014012 9095001545 9356054008 9356054008 9356054010 9356714512 9356754516
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-12900

AE92..GT,GTI

 1
76085-12900

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76085-12900

AE92..(3D,5D)..5F

 1
76085-12900

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76085 - SPOILER SUB-ASSY, REAR
76085-12900

AE92..GT,GTI

 1
76085-12900

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76085-12900

AE92..(3D,5D)..5F

 1
76085-12900

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76085 - SPOILER SUB-ASSY, REAR
76085-12900

AE92..GT,GTI

 1
76085-12900

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76085-12900

AE92..(3D,5D)..5F

 1
76085-12900

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

 1
76621-12050

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

 1
76621-12050

AE92,EE90..GL,GT,SR5,STD,XL

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

 1
76622-12050

AE92,EE90..GL,GT,SR5,STD,XL

 1
76622-12050

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19225

AE92..GT,GTI;EE90..GCC,GEN

 1
76625-19225

EE90..LHD;AE92..GT,GTI,SR5

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19235

AE92..GT,GTI;EE90..GCC,GEN

 1
76626-19235

EE90..LHD;AE92..GT,GTI,SR5

 1
76866 - RETAINER, REAR SPOILER, NO.2
76866-12030

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76866-12030

AE92..(3D,5D)..5F

 2
76866-12030

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76866-12030

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76866-12030

AE92..GT,GTI

 2
76866 - RETAINER, REAR SPOILER, NO.2
76866-12030

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76866-12030

AE92..(3D,5D)..5F

 2
76866-12030

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76866-12030

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76866-12030

AE92..GT,GTI

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-12070

AE92..GT,GTI

 1
76872-12070

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76872-12070

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76872-12070

AE92..(3D,5D)..5F

 1
76872-12070

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-12070

AE92..GT,GTI

 1
76872-12070

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76872-12070

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76872-12070

AE92..(3D,5D)..5F

 1
76872-12070

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76885 - RETAINER, REAR SPOILER, NO.5
76885-12050

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76885-12050

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76885-12050

AE92..(3D,5D)..5F

 2
76885-12050

AE92..GT,GTI

 2
76885-12050

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76885 - RETAINER, REAR SPOILER, NO.5
76885-12050

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76885-12050

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76885-12050

AE92..(3D,5D)..5F

 2
76885-12050

AE92..GT,GTI

 2
76885-12050

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76885 - RETAINER, REAR SPOILER, NO.5
76885-12050

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76885-12050

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76885-12050

AE92..(3D,5D)..5F

 2
76885-12050

AE92..GT,GTI

 2
76885-12050

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
Common parts
90159-60078
90159-60182
90159-60244
90179-06163
90189-06048
90189-06057
90189-06058
90189-06066
90249-06091
90339-02006
90467-06053
90467-09077
90467-09082
90467-10058
90468-04137
90540-07009
90540-14012
90950-01545
93560-54008
93560-54010
93567-14512
93567-54516
Linked diagrams
8117

(8705-8908)

Click highlighted areas on diagram

diagram 76081A 76083A 76085 76085 76603 76603 76604 76604 76607 76608 76855 76857 76858 76863 76864 76865 76866 76872 76874 76885 76895 76897 76898 76901 76902 76915F 76916F 9010906091 9010906091 9011906042 9015960078 9015960078 9015960078 9015960182 9015960182 9015960182 9015960182 9015960182 9015960244 9017906070 9017906070 9017906070 9017906091 9017906109 9017906109 9018906048 9018906057 9018906058 9018906058 9018906066 9024906091 9033902006 9033902006 9046706053 9046709077 9046709077 9046709082 9046710058 9054007009 9054012008 9095001545 9356054008 9356714512 9356815012 9356815012
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-12900

AE92..GT,GTI

 1
76085-12900

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76085-12900

AE92..(3D,5D)..5F

 1
76085-12900

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76085 - SPOILER SUB-ASSY, REAR
76085-12900

AE92..GT,GTI

 1
76085-12900

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76085-12900

AE92..(3D,5D)..5F

 1
76085-12900

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

 1
76621-12050

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

 1
76621-12050

AE92,EE90..GL,GT,SR5,STD,XL

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

 1
76621-12050

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

 1
76621-12050

AE92,EE90..GL,GT,SR5,STD,XL

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

 1
76622-12050

AE92,EE90..GL,GT,SR5,STD,XL

 1
76622-12050

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE92,EE90..(3D,5D)..(GL,GT,STD,XL)

 1
76622-12050

AE92,EE90..GL,GT,SR5,STD,XL

 1
76622-12050

AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19225

AE92..GT,GTI;EE90..GCC,GEN

 1
76625-19225

EE90..LHD;AE92..GT,GTI,SR5

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19235

AE92..GT,GTI;EE90..GCC,GEN

 1
76626-19235

EE90..LHD;AE92..GT,GTI,SR5

 1
76855 - RETAINER, FRONT SPOILER, LOWER NO.1 CENTER
76855-12060

AE92..GT

 1
76857 - RETAINER, FRONT SPOILER SIDE, RH
76857-12050

AE92..GT

 1
76858 - RETAINER, FRONT SPOILER SIDE, LH
76858-12050

AE92..GT

 1
76863 - RETAINER, FRONT SPOILER, LOWER NO.2 RH
76863-12040

AE92..GT

 1
76864 - RETAINER, FRONT SPOILER, LOWER NO.2 LH
76863-12040

AE92..GT

 1
76866 - RETAINER, REAR SPOILER, NO.2
76866-12030

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76866-12030

AE92..(3D,5D)..5F

 2
76866-12030

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76866-12030

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76866-12030

AE92..GT,GTI

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-12070

AE92..GT,GTI

 1
76872-12070

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76872-12070

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 1
76872-12070

AE92..(3D,5D)..5F

 1
76872-12070

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 1
76885 - RETAINER, REAR SPOILER, NO.5
76885-12050

EE90..5D..GEN;AE92..RHD..(3D,5D)..5F

 2
76885-12050

EE90..5D..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
76885-12050

AE92..(3D,5D)..5F

 2
76885-12050

AE92..GT,GTI

 2
76885-12050

EE90..3FC;EE90..5F..XL..GEN;AE92..(3D,5D)..(GT,GTI,SR5,XL)

 2
Common parts
90109-06091
90119-06042
90159-60078
90159-60182
90159-60244
90179-06070
90179-06091
90179-06109
90189-06048
90189-06057
90189-06058
90189-06066
90249-06091
90339-02006
90467-06053
90467-09077
90467-09082
90467-10058
90540-07009
90540-12008
90950-01545
93560-54008
93567-14512
93568-15012
