AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D,5D

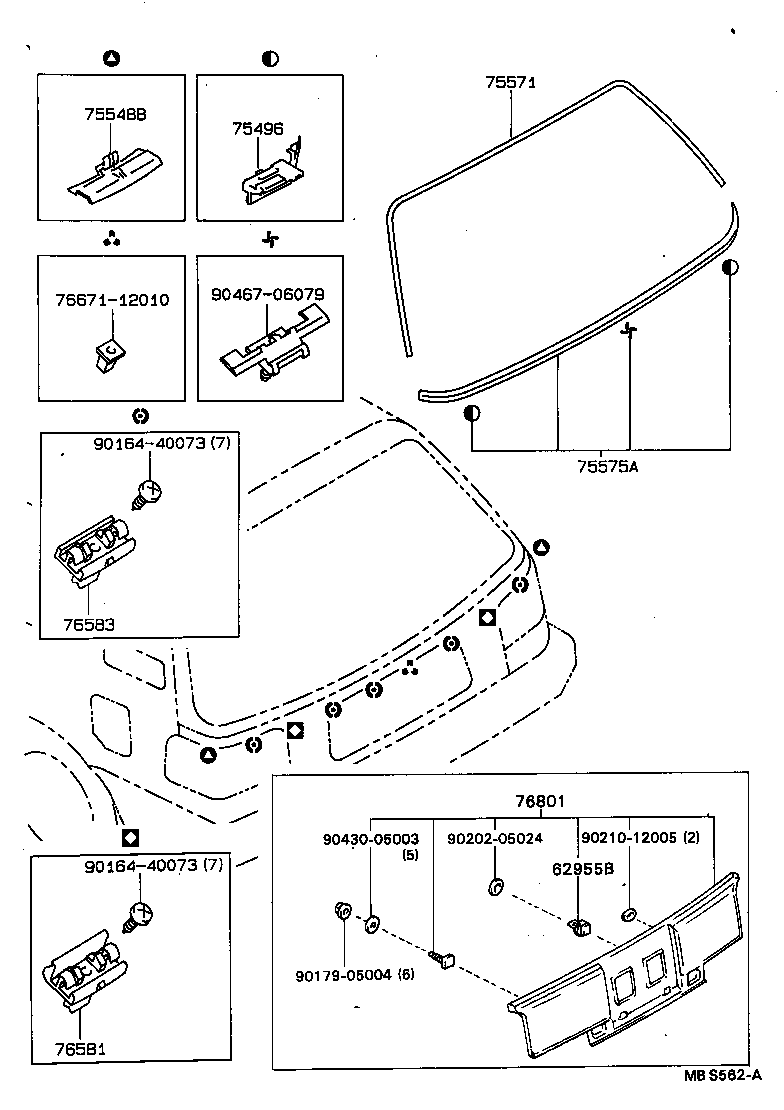

Click highlighted areas on diagram

diagram 62955B 75496 75548B 75571 75575A 76581 76583 7667112010 76801 9016440073 9016440073 9017905004 9020205024 9021012005 9043005003 9046706079
Part # Description Qty Price
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75497-12010

AE92,EE90..3D,5D

LH

 1
75496-12010

AE92,EE90..3D,5D

RH

 1
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-12100

AE92,EE90..3D,5D

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12560

AE92,EE90..SA

 1
75571-12410

AE92,EE90..3D,5D

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75507-12050

AE92,EE90..SA

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12030

AE92,EE90..3D,5D

 2
76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH
76583-12020

AE92,EE90..3D,5D

 5
Common parts
76671-12010
90164-40073
90179-05004
90202-05024
90210-12005
90430-05003
90467-06079
