AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

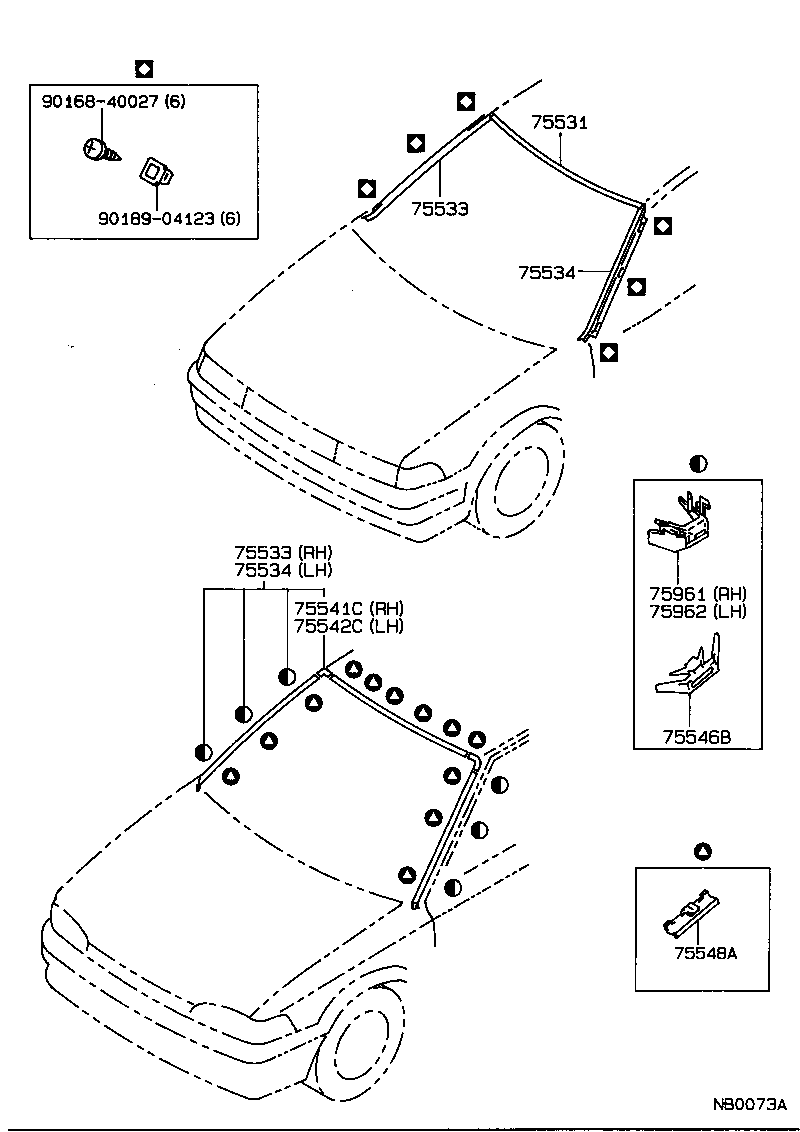

Click highlighted areas on diagram

diagram 75531 75533 75533 75534 75534 75541C 75542C 75546B 75548A 75961 75962 9016840027 9018904123
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12290

AE92,EE90..3D,5D

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12291

AE92,EE90..SA

 1
75533-12290

AE92,EE90..3D,5D

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12291

AE92,EE90..SA

 1
75533-12290

AE92,EE90..3D,5D

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12220

AE92,EE90..3D,5D

 1
75534-12221

AE92,EE90..SA

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12220

AE92,EE90..3D,5D

 1
75534-12221

AE92,EE90..SA

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-12160

AE92,EE90..3D,5D

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75542-12130

AE92,EE90..3D,5D

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-12060

AE92,EE90..3D,5D

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

AE92,EE90..3D,5D

 8
75548-16030

AE92,EE90..SA

 8
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-12010

AE92,EE90..3D,5D

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-12010

AE92,EE90..3D,5D

 1
Common parts
90168-40027
90189-04123
