AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D,5D

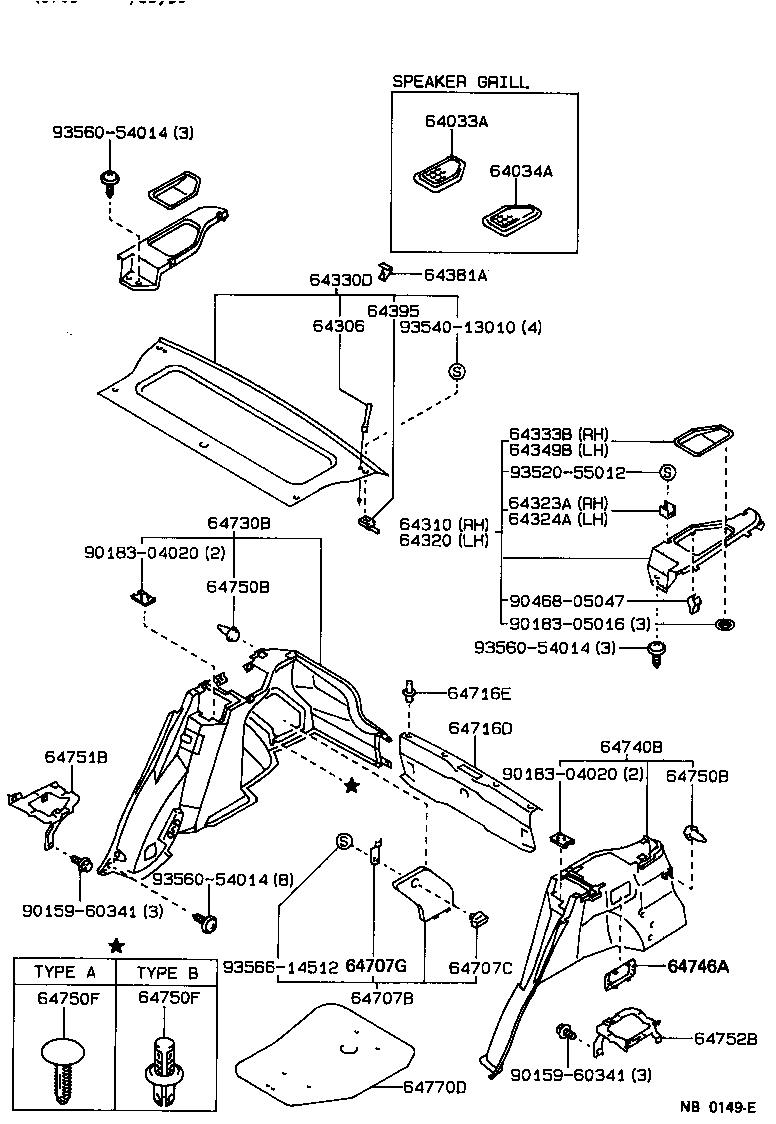

Click highlighted areas on diagram

diagram 64033A 64034A 64306 64310 64320 64323A 64324A 64330D 64333B 64349B 64381A 64395 64707B 64707C 64707G 64716D 64716E 64730B 64740B 64746A 64750B 64750B 64750F 64750F 64751B 64752B 64770D 9015960341 9015960341 9018304020 9018304020 9018305016 9046805047 9352055012 9354013010 9356054014 9356054014 9356054014 9356614512
Part # Description Qty Price
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-12060

AE92,EE90..3D,5D

 2
64310 - BRACKET, PACKAGE TRAY TRIM, RH
64301-1210003

AE92..GT

SHADOW GRAY,TRIM1#

 1
64320 - BRACKET, PACKAGE TRAY TRIM, LH
64302-1210003

AE92..GT

SHADOW GRAY,TRIM1#

 1
64323A - CLAMP, PACKAGE TRAY TRIM, RH
64323-12020

AE92,EE90..3D,5D

 1
64323-12020

AE92,EE90..3D,5D

 1
64323-12020

AE92,EE90..3D,5D

 1
64324A - CLAMP, PACKAGE TRAY TRIM, LH
64324-12010

AE92,EE90..3D,5D

 1
64324-12010

AE92,EE90..3D,5D

 1
64324-12010

AE92,EE90..3D,5D

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-1A04003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64330-1A04003

AE92..3D,5D;EE90..LHD..STD;EE90..XL..(GCC,SA);EE90..5D..(GL,STD)

SHADOW GRAY,TRIM1#

 1
64330-1A04003

AE92..3D,5D;EE90..5F..GL;EE90..LHD..STD;EE90..5D..(3FC,4F);EE90..5F..(GCC,SA)

SHADOW GRAY,TRIM1#

 1
64330-1A04003

AE92..3D,5D;EE90..3FC,4F;EE90..3D..XL;EE90..XL..SA;EE90..5F..GL;EE90..LHD..5D..5F..XL

SHADOW GRAY,TRIM1#

 1
64333B - COVER, PACKAGE TRAY TRIM SIDE, RH
64333-1207003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64349B - COVER, PACKAGE TRAY TRIM SIDE, LH
64349-1205003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64381A - HANGER, PACKAGE TRAY TRIM
64381-10010

AE92..3D,5D;EE90..5F..GL;EE90..LHD..STD;EE90..5D..(3FC,4F);EE90..5F..(GCC,SA)

 2
64381-10010

AE92,EE90..3D,5D

 2
64381-10010

AE92..3D,5D;EE90..LHD..STD;EE90..XL..(GCC,SA);EE90..5D..(GL,STD)

 2
64381-10010

AE92..3D,5D;EE90..3FC,4F;EE90..3D..XL;EE90..XL..SA;EE90..5F..GL;EE90..LHD..5D..5F..XL

 2
64395 - PIN, PACKAGE TRAY TRIM HINGE
64395-12050

AE92..3D,5D;EE90..5F..GL;EE90..LHD..STD;EE90..5D..(3FC,4F);EE90..5F..(GCC,SA)

 4
64395-12050

AE92,EE90..3D,5D

 4
64395-12050

AE92..3D,5D;EE90..LHD..STD;EE90..XL..(GCC,SA);EE90..5D..(GL,STD)

 4
64707B - COVER SUB-ASSY, QUARTER TRIM JACK
64707-1205003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64707C - KNOB, JACK COVER
64982-1602023

AE92,EE90..3D,5D

GRAY,TRIM1#

 1
64707G - STOPPER, JACK COVER
64981-16021

AE92,EE90..3D,5D

 1
64716D - COVER, DECK TRIM, REAR
64716-1214003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-0706603

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 6
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-1224003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-1224003

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#

 1
64750B - RETAINER(FOR DECK SIDE TRIM PANEL)
67771-32010

AE92,EE90..3D,5D

 2
64750B - RETAINER(FOR DECK SIDE TRIM PANEL)
67771-32010

AE92,EE90..3D,5D

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-0604901

AE92..GT,GTI

BLACK,TRIM1#,TYPE A

 2
90467-0707103

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#,TYPE B

 5
90467-0604903

AE92,EE90..SA

GRAY,TRIM1#,TYPE A

 2
90467-0604903

AE92,EE90..3D,5D

GRAY,TRIM1#,TYPE A

 2
90467-07071B4

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#,TYPE B

 5
90467-0604901

AE92..GT,GTI,SR5

BLACK,TRIM1#,TYPE A

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-0604901

AE92..GT,GTI

BLACK,TRIM1#,TYPE A

 2
90467-0707103

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#,TYPE B

 5
90467-0604903

AE92,EE90..SA

GRAY,TRIM1#,TYPE A

 2
90467-0604903

AE92,EE90..3D,5D

GRAY,TRIM1#,TYPE A

 2
90467-07071B4

AE92,EE90..3D,5D

SHADOW GRAY,TRIM1#,TYPE B

 5
90467-0604901

AE92..GT,GTI,SR5

BLACK,TRIM1#,TYPE A

 2
64751B - BRACKET, SPEAKER SET, NO.1 RH
64751-12020

AE92,EE90..3D,5D

 1
64752B - BRACKET, SPEAKER SET, NO.1 LH
64752-12020

AE92,EE90..3D,5D

 1
64770D - COVER ASSY, SPARE WHEEL
64770-12140

AE92..GT,GTI

 1
Common parts
90159-60341
90183-04020
90183-05016
90468-05047
93520-55012
93540-13010
93560-54014
93566-14512
