AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )3D,5D

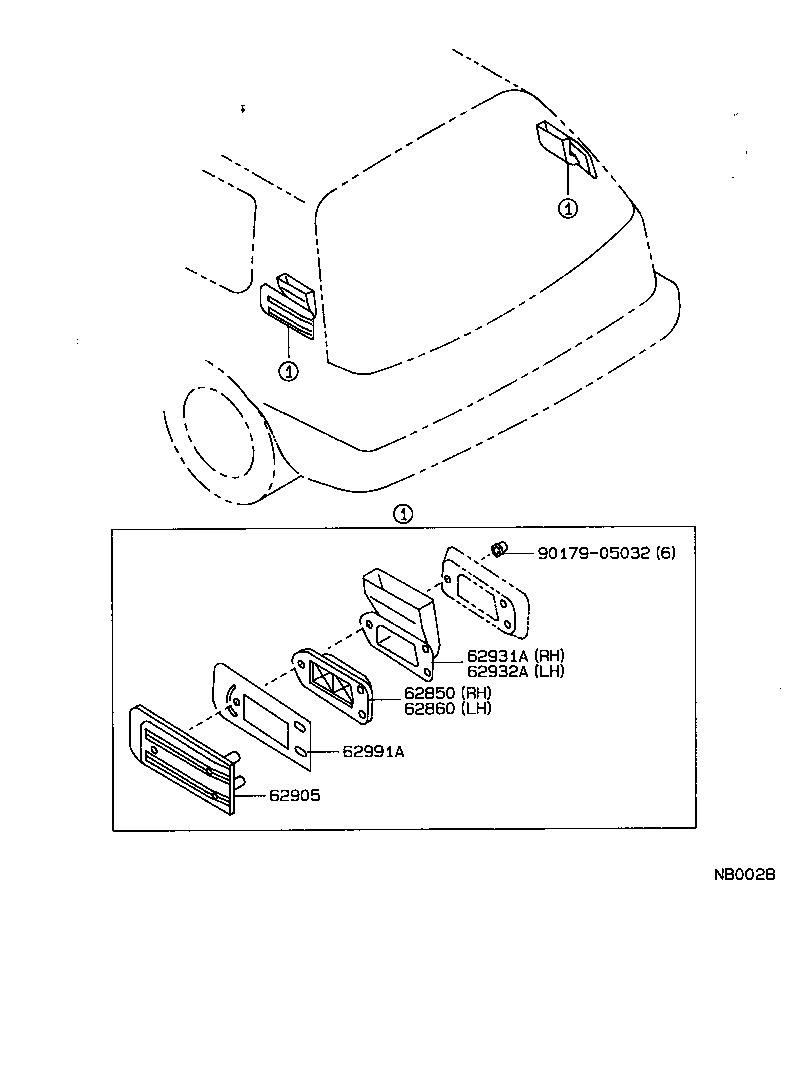

Click highlighted areas on diagram

diagram 62850 62860 62905 62931A 62932A 62991A 9017905032
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-12090

AE92,EE90..3D,5D

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-12070

AE92,EE90..3D,5D

 1
62905 - LOUVER, QUARTER VENTILATION
62905-12320

AE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)

RH

 1
62906-12320

AE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)

LH

 1
62931A - DUCT, QUARTER VENT, RH
62931-12220

AE92,EE90..3D,5D

 1
62932A - DUCT, QUARTER VENT, LH
62932-12220

AE92,EE90..3D,5D

 1
62991A - PAD, QUARTER VENT LOUVER
62991-12100

AE92..3FC..GCC;AE92,EE90..(3D,5D)..(GL,GT,GTI,STD,XL)

 2
Common parts
90179-05032
