AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

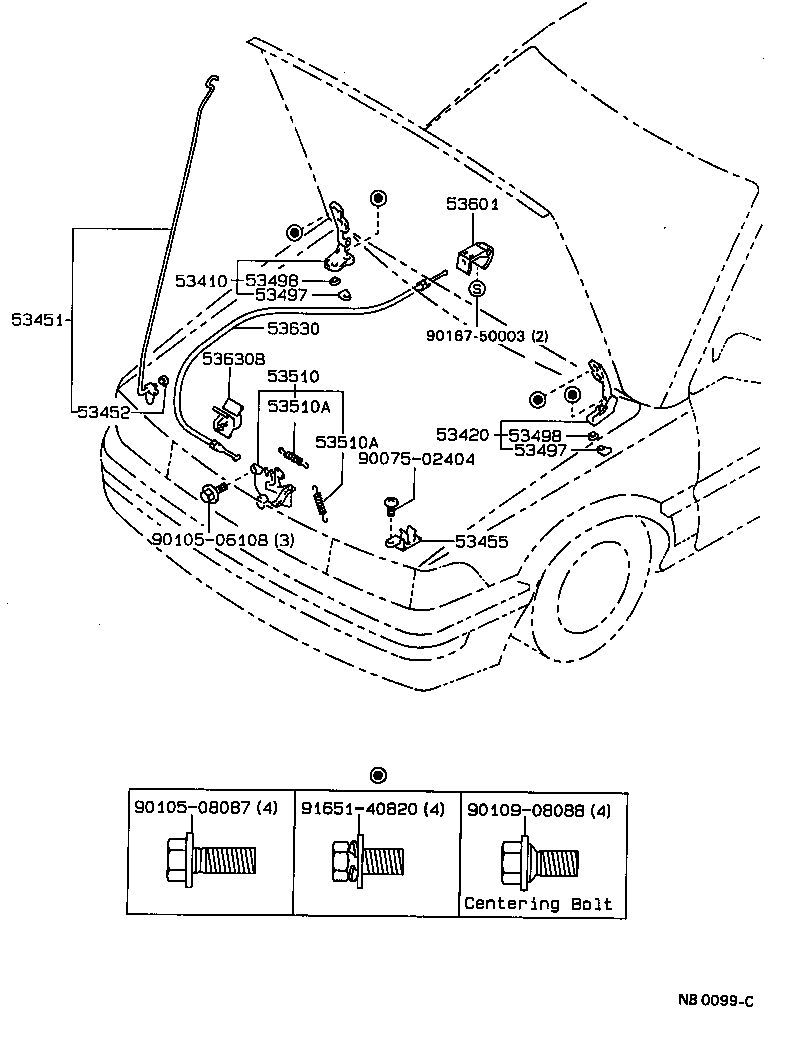

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53455 53497 53497 53498 53498 53510 53510A 53510A 53601 53630 53630B 9007502404 9010506108 9010508087 9010908088 9016750003 9165140820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-12170

AE92,EE90..3D,5D

 1
53410-12171

AE92,EE90..SA

 2
53410-12171

AE92,EE90..3D,5D

 2
53420 - HINGE ASSY, HOOD, LH
53420-12160

AE92,EE90..3D,5D

 1
53420-12161

AE92,EE90..SA

 2
53420-12161

AE92,EE90..3D,5D

 2
53451 - ROD, HOOD SUPPORT
53451-12160

AE92,EE90..3D,5D

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-12040

AE92,EE90..3D,5D

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12010

AE92,EE90

T=1.0

 1
53497-12011

AE92,EE90

T=0.5

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12010

AE92,EE90

T=1.0

 1
53497-12011

AE92,EE90

T=0.5

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12010

AE92,EE90

 1
53498-12011

AE92,EE90

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12010

AE92,EE90

 1
53498-12011

AE92,EE90

 1
53510 - LOCK ASSY, HOOD
53510-12410

AE92,EE90..RHD..(3D,5D)

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AE92,EE90..3D,5D

WD=2.0,CW=17

 1
90506-09038

AE92,EE90..SA

WD=0.9,CW=27.5

 1
90506-09012

AE92,EE90..3D,5D

WD=0.9,CW=45.5

 1
90506-20008

AE92,EE90..SA

WD=2.0,CW=17

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AE92,EE90..3D,5D

WD=2.0,CW=17

 1
90506-09038

AE92,EE90..SA

WD=0.9,CW=27.5

 1
90506-09012

AE92,EE90..3D,5D

WD=0.9,CW=45.5

 1
90506-20008

AE92,EE90..SA

WD=2.0,CW=17

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1002003

AE92,EE90

GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12320

AE92,EE90..RHD..(3D,5D)

 1
53630-12320

AE92,EE90..SA

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-09043

AE92,EE90

 1
Common parts
90075-02404
90105-06108
90105-08087
90109-08088
90167-50003
91651-40820
