AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )RHD

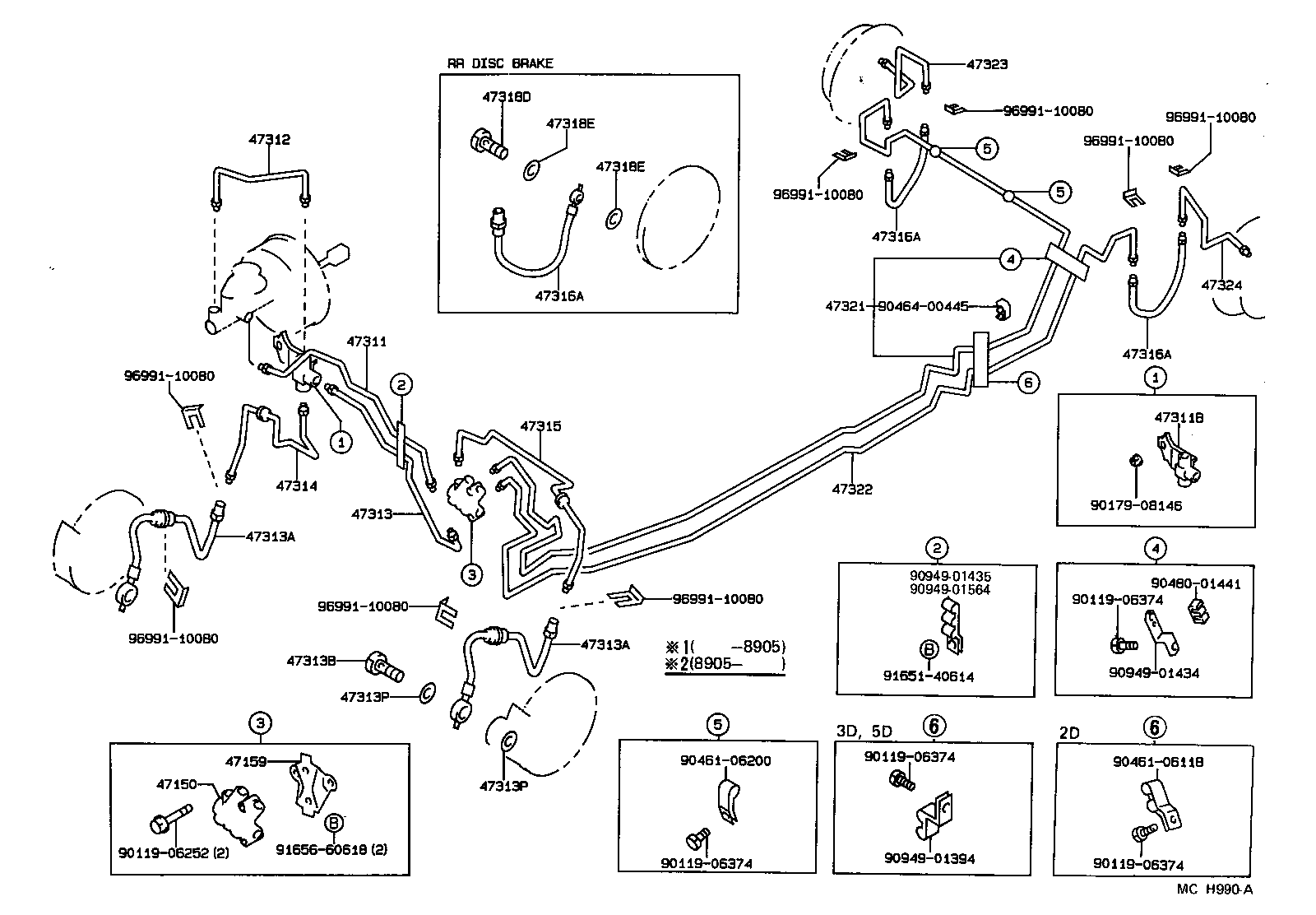

Click highlighted areas on diagram

diagram 47150 47159 47311 47311B 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47316A 47316A 47316A 47318D 47318E 47318E 47321 47322 47323 47324 9011906252 9011906374 9011906374 9011906374 9011906374 9017908146 9046106118 9046106200 9046400445 9048001441 9094901394 9094901434 9094901435 9094901564 9165140614 9165660618 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20140

AE92,EE90..SA

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-12050

AE92,EE90..RHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12430

AE92,EE90..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12240

AE92,EE90..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02532

AE92,EE90

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02532

AE92,EE90

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AE92,EE90

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE92,EE90

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE92,EE90

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12260

AE92,EE90..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12400

AE92,EE90..RHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02541

AE92..GT,GTI

 2
90947-02533

AE92,EE90..GL,GT,SR5,STD,XL

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02541

AE92..GT,GTI

 2
90947-02533

AE92,EE90..GL,GT,SR5,STD,XL

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02541

AE92..GT,GTI

 2
90947-02533

AE92,EE90..GL,GT,SR5,STD,XL

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

AE92..GT,GTI

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

AE92..GT,GTI

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

AE92..GT,GTI

 4
47321 - TUBE, REAR BRAKE, NO.1
47321-12030

AE92,EE90..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-12180

AE92,EE90..RHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12210

AE92,EE90..GL,GT,SR5,STD,XL

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12170

AE92,EE90..GL,GT,SR5,STD,XL

 1
Common parts
90119-06252
90119-06374
90179-08146
90461-06118
90461-06200
90464-00445
90480-01441
90949-01394
90949-01434
90949-01435
90949-01564
91651-40614
91656-60618
96991-10080
