AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb
Production
Aug 1988
-
Aug 1993
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

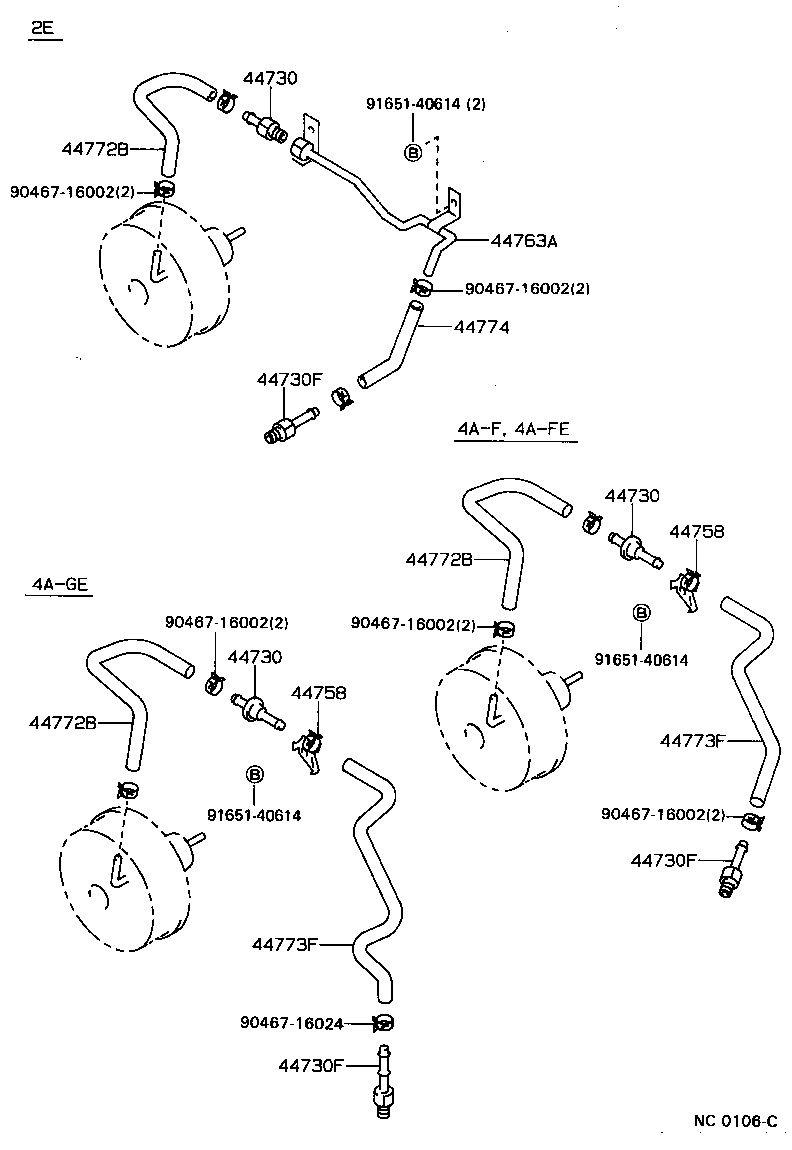

ILLUST NO. 2 OF 2(8705- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE92..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE92..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AE92..RHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE92..GT,GTI |
1 | ||
| 90404-51028 |
AE92..GT |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE92..GT,GTI |
1 | ||
| 90404-51028 |
AE92..GT |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51028 |
AE92..GT,GTI |
1 | ||
| 90404-51028 |
AE92..GT |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12270 |
AE92..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12270 |
AE92..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12250 |
AE92..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12250 |
AE92..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12250 |
AE92..RHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12380 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44773-12440 |
AE92..GT,GTI |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12380 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44773-12440 |
AE92..GT,GTI |
1 | ||
| Common parts | ||||
| 90467-16002 | ||||
| 90467-16024 | ||||
| 91651-40614 | ||||

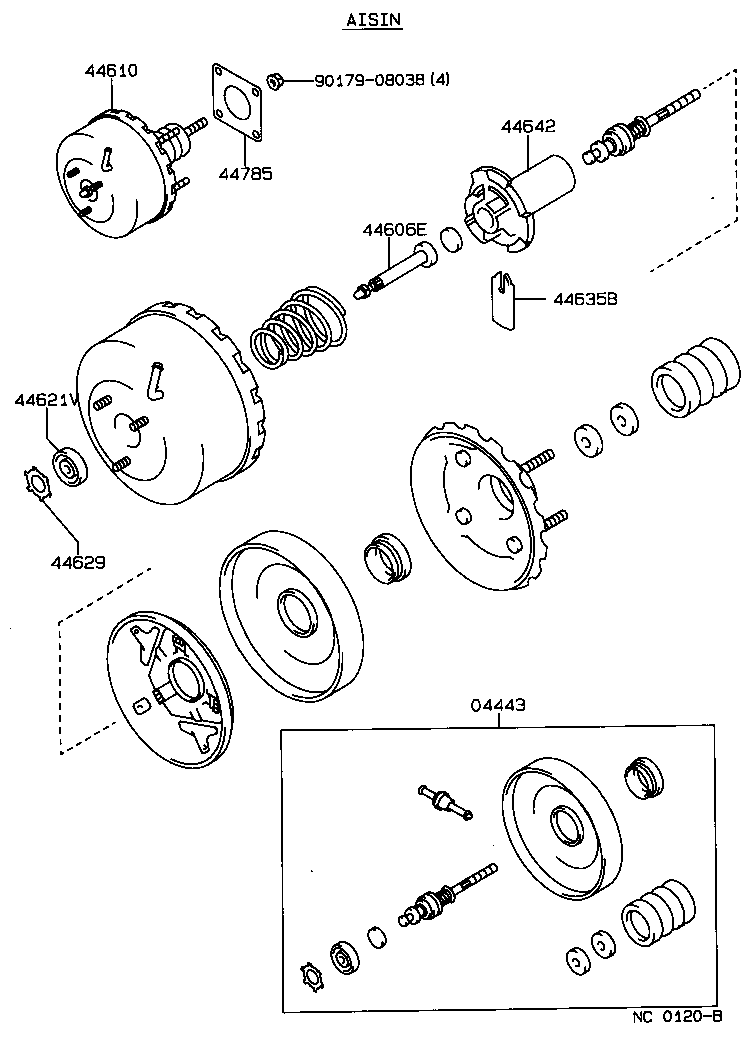

ILLUST NO. 1 OF 2(8808- )SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12530 |
AE92..GT |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 44606-12520 |
AE92,EE90..SA |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12640 |
AE92..GT |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE92,EE90..SA |
1 | ||
| 44621-28120 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE92,EE90..SA |
1 | ||
| 44628-28120 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AE92,EE90..SA |
1 | ||
| 44635-12630 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
AE92..GT;AE92,EE90..RHD..(GL,STD,XL)..GEN |
1 | ||
| 44642-32010 |
AE92..GT |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
