AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046-19175 |
AE92,EE90..RHD |
1 | ||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE92,EE90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046-19175 |
AE92,EE90..RHD |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12110 |
AE92,EE90..RHD |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
AE92,EE90..RHD |
1 | ||
| 90311-15001 |
AE92,EE90 |
1 | ||
| 90311-15002 |
AE92,EE90 |
1 | ||
| 90311-15001 |
AE92..RHD..GTI;AE92,EE90..GL,GT,STD,XL |
1 | ||
| 90311-15002 |
AE92,EE90 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE92,EE90 W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19125 |
AE92,EE90..RHD |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19135 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
2 | ||
| 45503-19135 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE92,EE90 W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19125 |
AE92,EE90..RHD |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19135 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
2 | ||
| 45503-19135 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,EE90..RHD OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,EE90..RHD OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12230 |
AE92,EE90..SA |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12080 |
AE92,EE90 |
1 | ||
| 45514-12081 |
AE92,EE90 |
1 | ||
| 45514-12070 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45514-12070 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45514-12070 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12140 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45515-12160 |
AE92,EE90 |
1 | ||
| 45515-12161 |
AE92,EE90 |
1 | ||
| 45515-12140 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45515-12140 |
AE92..SA W(POWER STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45516-20010 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45516-20010 |
AE92,EE90 |
1 | ||
| 45516-20010 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45516-12050 |
AE92,EE90 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE92,EE90 W(POWER STEERING) |
1 | ||
| 45517-12120 |
AE92,EE90 |
1 | ||
| 45517-12110 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45517-12111 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12110 |
AE92,EE90..SA |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-17010 |
AE92,EE90 |
1 | ||
| 45522-17010 |
AE92,EE90..RHD |
1 | ||
| 45522-17020 |
AE92,EE90 |
1 | ||
| 45522-17010 |
AE92,EE90 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12040 |
AE92,EE90..RHD |
1 | ||
| 45523-16040 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45523-12040 |
AE92,EE90 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 90501-26038 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 90501-26038 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 90501-26038 |
AE92,EE90..RHD |
1 | ||
| 90501-26038 |
AE92,EE90 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE92,EE90 |
1 | ||
| 45524-16010 |
AE92,EE90..RHD |
1 | ||
| 45524-12030 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-32001 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 90179-36002 |
AE92,EE90 |
1 | ||
| 90179-36002 |
AE92,EE90..RHD |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE92,EE90 |
1 | ||
| 45535-12011 |
AE92,EE90..RHD |
1 | ||
| 45535-12050 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45535-12011 |
AE92,EE90 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,EE90..RHD NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90..RHD NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90460-55009 |
AE92,EE90..RHD W(POWER STEERING) |
2 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,EE90..RHD NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90..RHD NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90460-55009 |
AE92,EE90..RHD W(POWER STEERING) |
2 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90..RHD |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90..RHD |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12050 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45536-12030 |
AE92,EE90..RHD |
1 | ||
| 45536-12030 |
AE92,EE90 |
1 | ||
| 45536-12030 |
AE92,EE90 |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12050 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN |
1 | ||
| 90363-15015 |
AE92,EE90 |
1 | ||
| 90363-15003 |
AE92,EE90 |
1 | ||
| 90363-15003 |
AE92,EE90 |
1 | ||
| 90363-15015 |
AE92,EE90..RHD |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AE92,EE90 |
1 | ||
| 90363-13001 |
AE92,EE90..GCC,SA;AE92,EE90..LHD..GEN |
1 | ||
| 90363-13004 |
AE92,EE90..RHD |
1 | ||
| 90363-13001 |
AE92,EE90 |
1 | ||
| 90363-13004 |
AE92,EE90 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE92,EE90..RHD |
1 | ||
| 45545-10010 |
AE92,EE90 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE92,EE90 |
1 | ||
| 90179-38001 |
AE92,EE90..RHD |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 93269-63020 | ||||
| 95381-03020 | ||||

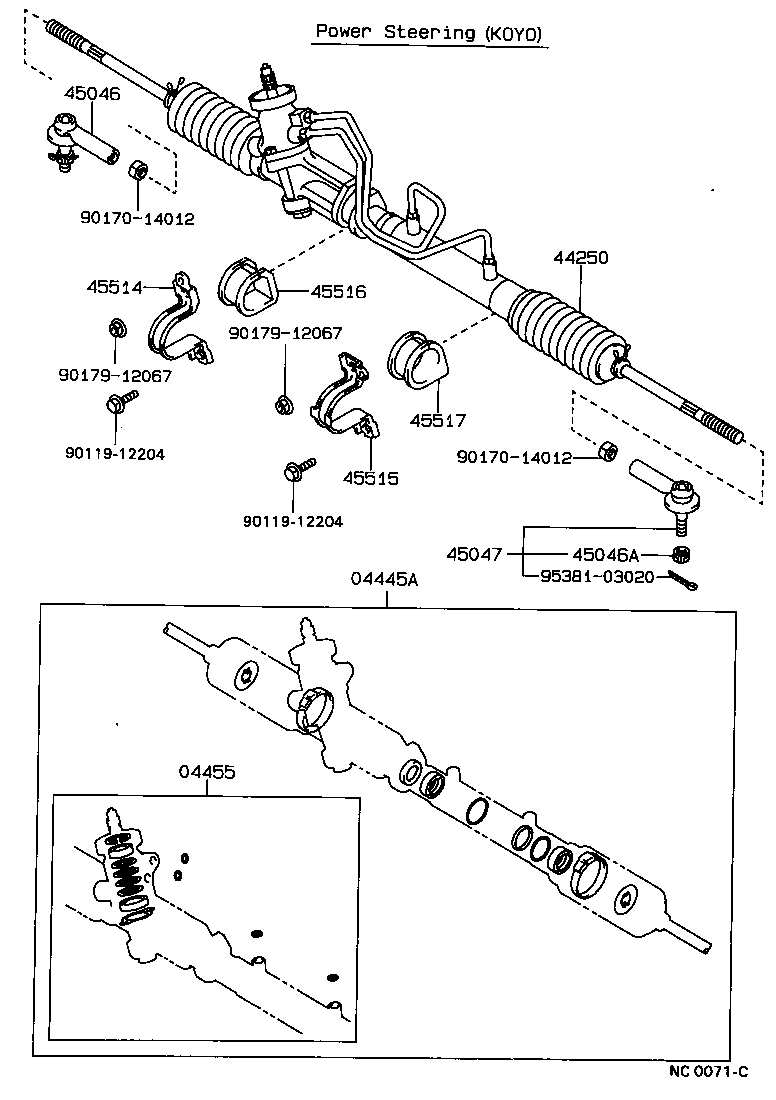

ILLUST NO. 1 OF 2(8705- )AE92..RHD ; (8705- )EE90..RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12050 |
AE92,EE90..RHD |
1 | ||
| 04445-12051 |
AE92..RHD;EE90..RHD..GEN |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12030 |
AE92,EE90..RHD |
1 | ||
| 04455-12031 |
AE92..RHD;EE90..RHD..GEN |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12201 |
AE92..GT,GTI |
1 | ||
| 44250-12200 |
AE92..RHD..(GT,GTI) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046-19175 |
AE92,EE90..RHD |
1 | ||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE92,EE90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046-19175 |
AE92,EE90 |
1 | ||
| 45046-19175 |
AE92,EE90..RHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12080 |
AE92,EE90 |
1 | ||
| 45514-12081 |
AE92,EE90 |
1 | ||
| 45514-12070 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45514-12070 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45514-12070 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12140 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45515-12160 |
AE92,EE90 |
1 | ||
| 45515-12161 |
AE92,EE90 |
1 | ||
| 45515-12140 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45515-12140 |
AE92..SA W(POWER STEERING) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45516-20010 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45516-20010 |
AE92,EE90 |
1 | ||
| 45516-20010 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
1 | ||
| 45516-12050 |
AE92,EE90 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE92,EE90 W(POWER STEERING) |
1 | ||
| 45517-12120 |
AE92,EE90 |
1 | ||
| 45517-12110 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| 45517-12111 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||

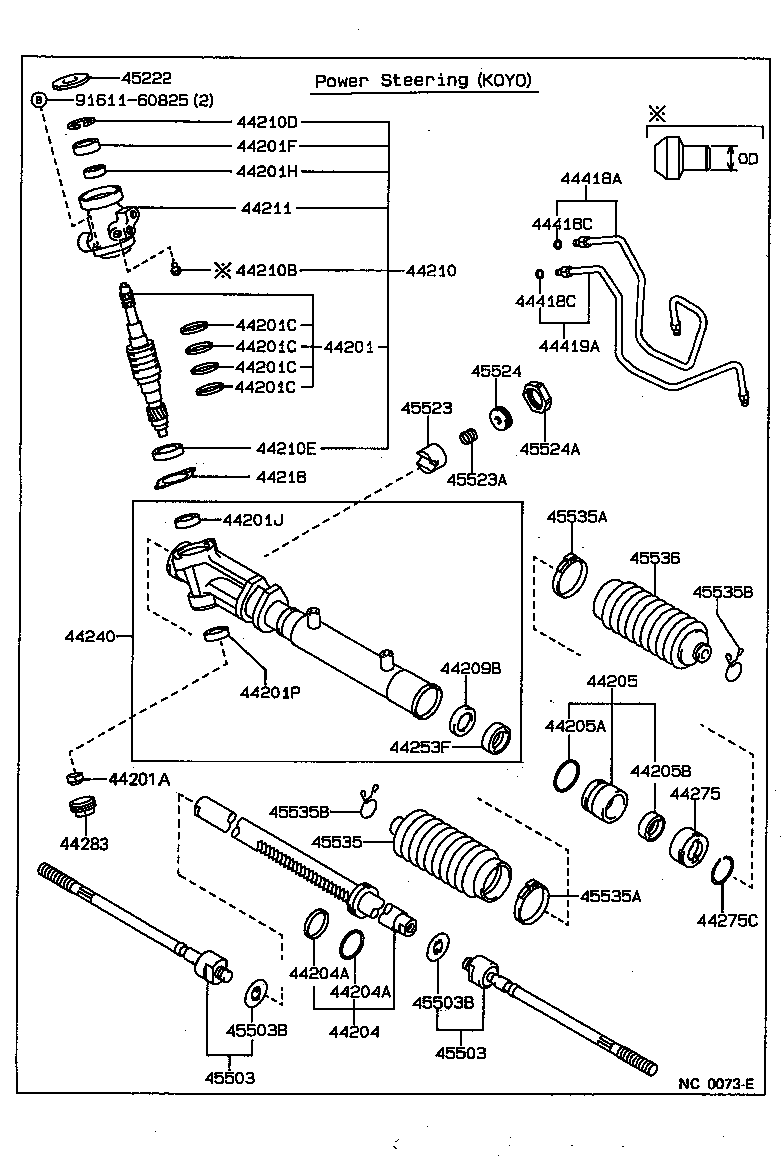

ILLUST NO. 2 OF 2(8705- )AE92..RHD ; (8705- )EE90..RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12130 |
AE92,EE90..RHD |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-10048 |
AE92,EE90..RHD |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE92,EE90..RHD |
4 | ||
| 90560-33005 |
AE92..RHD;EE90..RHD..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE92,EE90..RHD |
4 | ||
| 90560-33005 |
AE92..RHD;EE90..RHD..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE92,EE90..RHD |
4 | ||
| 90560-33005 |
AE92..RHD;EE90..RHD..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AE92,EE90..RHD |
4 | ||
| 90560-33005 |
AE92..RHD;EE90..RHD..GEN |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19010 |
AE92..SA |
1 | ||
| 90311-19010 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90364-19005 |
AE92,EE90..RHD |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90364-22006 |
AE92,EE90..RHD |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12006 |
AE92,EE90..RHD |
1 | ||
| 90363-12009 |
AE92..RHD;EE90..RHD..GEN |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12100 |
AE92,EE90..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE92,EE90..RHD KOYO,INNER |
1 | ||
| 90562-37003 |
AE92,EE90..RHD KOYO,OUTER |
1 | ||
| 90562-37003 |
AE92..SA KOYO,OUTER |
1 | ||
| 90301-34006 |
AE92..SA KOYO,INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34006 |
AE92,EE90..RHD KOYO,INNER |
1 | ||
| 90562-37003 |
AE92,EE90..RHD KOYO,OUTER |
1 | ||
| 90562-37003 |
AE92..SA KOYO,OUTER |
1 | ||
| 90301-34006 |
AE92..SA KOYO,INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-12050 |
AE92,EE90..RHD |
1 | ||
| 44205-12051 |
AE92..RHD;EE90..RHD..GEN |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 96711-31035 |
AE92,EE90..RHD |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-24008 |
AE92,EE90..RHD |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90561-25009 |
AE92,EE90..RHD |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12180 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05006 |
AE92..RHD..(GT,GTI) OD=7.71-7.73 |
1 | ||
| 90410-05006 |
AE92..GT |
1 | ||
| 90410-05007 |
AE92..RHD..(GT,GTI) OD=7.69-7.71 |
1 | ||
| 44210D - RING, HOLE SNAP(FOR POWER STEERING CONTROL VALVE) | ||||
| 96151-03200 |
AE92,EE90..RHD |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
AE92,EE90..RHD |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12130 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
AE92,EE90..RHD |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12090 |
AE92,EE90..RHD |
1 | ||
| 44240-12091 |
AE92..RHD;EE90..RHD..GEN |
1 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-24007 |
AE92,EE90..RHD |
1 | ||
| 90311-24010 |
AE92 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12050 |
AE92,EE90..RHD |
1 | ||
| 44275-12050 |
AE92..SA |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18002 |
AE92,EE90..RHD |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16010 |
AE92,EE90..RHD |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12120 |
AE92,EE90..RHD |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
AE92,EE90..RHD |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
AE92,EE90..RHD |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12110 |
AE92,EE90..RHD |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12080 |
AE92,EE90..RHD |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE92,EE90 W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19125 |
AE92,EE90..RHD |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19135 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
2 | ||
| 45503-19135 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE92,EE90 W(POWER STEERING) |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19125 |
AE92,EE90..RHD |
2 | ||
| 45503-19125 |
AE92,EE90 |
2 | ||
| 45503-19135 |
AE92;EE90..GCC,GEN W(POWER STEERING) |
2 | ||
| 45503-19135 |
AE92..RHD;EE90..RHD..GEN W(POWER STEERING) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,EE90..RHD OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE92,EE90..RHD OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 90214-14009 |
AE92,EE90 OD=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12040 |
AE92,EE90..RHD |
1 | ||
| 45523-16040 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45523-12040 |
AE92,EE90 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 90501-26038 |
AE92,EE90..RHD..(GL,GT,STD,XL) |
1 | ||
| 90501-26038 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 90501-26038 |
AE92,EE90..RHD |
1 | ||
| 90501-26038 |
AE92,EE90 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE92,EE90 |
1 | ||
| 45524-16010 |
AE92,EE90..RHD |
1 | ||
| 45524-12030 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-32001 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 90179-36002 |
AE92,EE90 |
1 | ||
| 90179-36002 |
AE92,EE90..RHD |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE92,EE90 |
1 | ||
| 45535-12011 |
AE92,EE90..RHD |
1 | ||
| 45535-12050 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45535-12011 |
AE92,EE90 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,EE90..RHD NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90..RHD NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90460-55009 |
AE92,EE90..RHD W(POWER STEERING) |
2 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE92,EE90..RHD NO.1 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90..RHD NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90949-01082 |
AE92,EE90 NO.2 BOOT |
1 | ||
| 90460-55009 |
AE92,EE90..RHD W(POWER STEERING) |
2 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 90461-10273 |
AE92,EE90 NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90..RHD |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90 |
2 | ||
| 90467-18003 |
AE92,EE90..RHD |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12050 |
AE92,EE90..RHD W(POWER STEERING) |
1 | ||
| 45536-12030 |
AE92,EE90..RHD |
1 | ||
| 45536-12030 |
AE92,EE90 |
1 | ||
| 45536-12030 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
