AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb
Production
Aug 1988
-
Aug 1993
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705-8908)RHD..GT,GTI ; (8908- )GTI

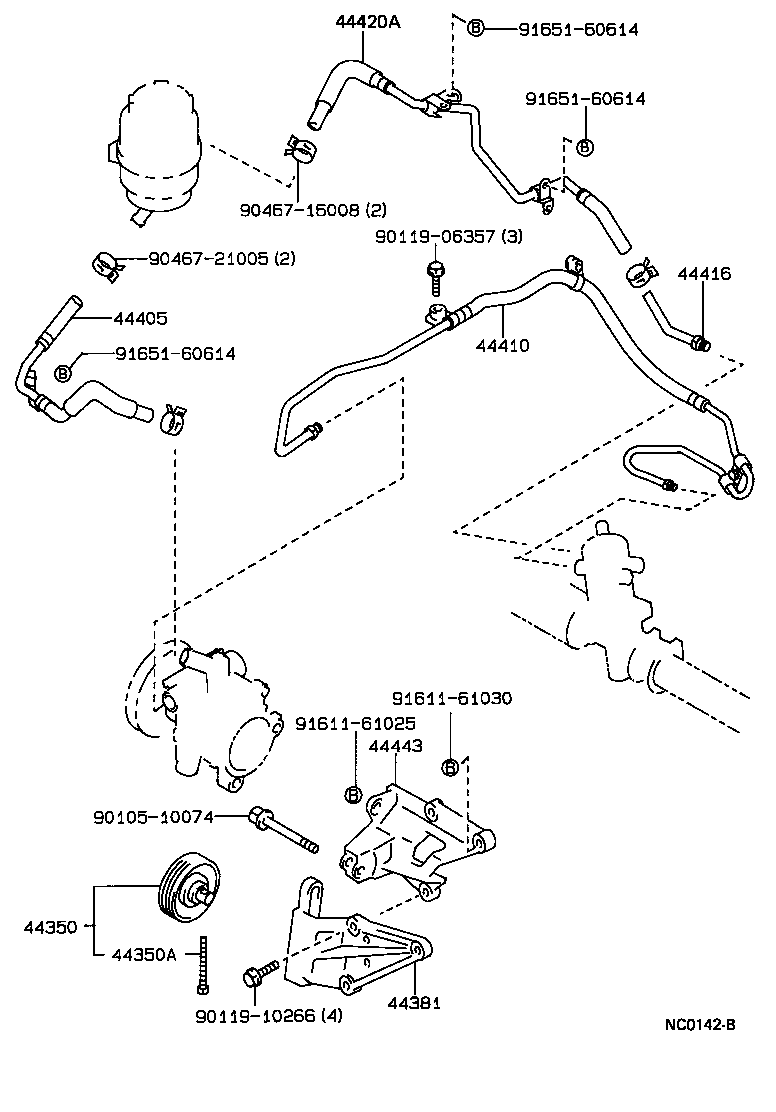

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-12060 |
AE92..GT,GTI |
1 | ||
| 44350A - BOLT(FOR POWER STEERING IDLE PULLEY) | ||||
| 90105-08099 |
AE92..GT,GTI |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-12030 |
AE92..GT,GTI |
1 | ||
| 44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44405-12010 |
AE92..GT,GTI |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-12262 |
AE92..GT,GTI |
1 | ||
| 44410-12260 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44410-12261 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-12170 |
EE90..RHD..GEN;AE92..RHD..(GT,GTI) |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-12010 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44420-12070 |
AE92..RHD..(GT,GTI) |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12060 |
AE92..GT,GTI |
1 | ||
| Common parts | ||||
| 90105-10074 | ||||
| 90119-06357 | ||||
| 90119-10266 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91651-60614 | ||||
