AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb

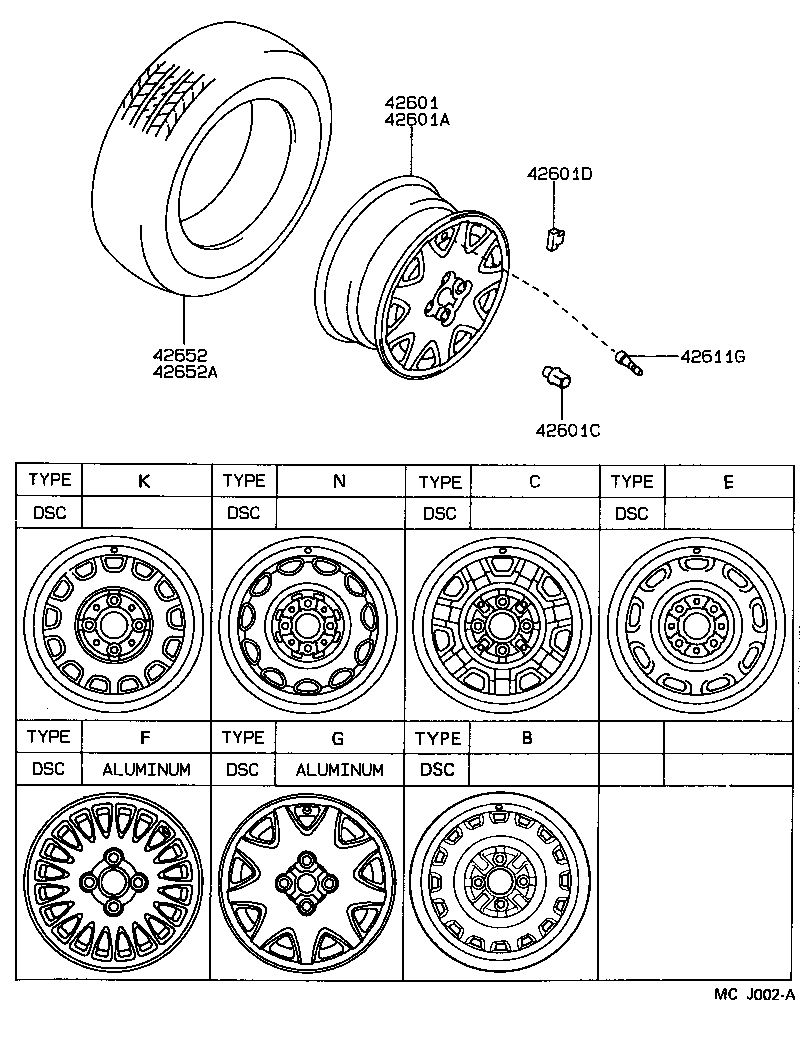

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-12840 |
AE92..GT,GTI 14X5.5JJ,TYPE N |
4 | ||
| 42611-12890 |
AE92..GT,GTI 14X5.5JJ,TYPE G,ALUMINUM |
4 | ||
| 42611-1284003 |
AE92..GT 14X5.5JJ,SILVER,000 ,8B5,TYPE N:REFER ILLUST. |
4 | ||
| 42611-12890 |
AE92..GT 14X5.5JJ,TYPE G,ALUMINUM |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-12840 |
AE92..GT,GTI 14X5.5JJ,TYPE N |
1 | ||
| 42611-12890 |
AE92..GT,GTI 14X5.5JJ,TYPE G,ALUMINUM |
1 | ||
| 42611-12890 |
AE92..GT 14X5.5JJ,TYPE G,ALUMINUM |
1 | ||
| 42611-1284003 |
AE92..GT 14X5.5JJ,SILVER,000 ,8B5,TYPE N:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
AE92..GT,GTI W(ALUMINUM WHEEL) |
16 | ||
| 90942-01021 |
AE92..GT;AE92..GEN CAP NUT |
16 | ||
| 90942-01058 |
AE92..GT W(ALUMINUM WHEEL) |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03098 |
AE92,EE90 15G |
1 | ||
| 90942-03025 |
AE92,EE90 50G,T=9.5 |
1 | ||
| 90942-03020 |
AE92,EE90 30G,T=10 |
1 | ||
| 90942-03017 |
AE92,EE90 20G,T=8 |
1 | ||
| 90942-03031 |
AE92,EE90 80G,T=9.5 |
1 | ||
| 90942-03027 |
AE92,EE90 60G,T=9.5 |
1 | ||
| 90942-03102 |
AE92,EE90 55G |
1 | ||
| 90942-03108 |
AE92,EE90 65G |
1 | ||
| 90942-03022 |
AE92,EE90 40G,T=9.5 |
1 | ||
| 90942-03109 |
AE92,EE90 75G |
1 | ||
| 90942-03120 |
AE92..GT,GTI 15G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03101 |
AE92,EE90 45G |
1 | ||
| 90942-03100 |
AE92,EE90 35G |
1 | ||
| 90942-03119 |
AE92..GT,GTI 10G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03122 |
AE92..GT,GTI 25G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03041 |
AE92,EE90 10G,T=7.5 |
1 | ||
| 90942-03123 |
AE92..GT,GTI 30G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03029 |
AE92,EE90 70G,T=9.5 |
1 | ||
| 90942-03124 |
AE92..GT,GTI 35G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03125 |
AE92..GT,GTI 40G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03129 |
AE92..GT,GTI 60G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03099 |
AE92,EE90 25G |
1 | ||
| 90942-03127 |
AE92..GT,GTI 50G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03126 |
AE92..GT,GTI 45G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03132 |
AE92..GT,GTI 75G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03121 |
AE92..GT,GTI 20G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03133 |
AE92..GT,GTI 80G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03130 |
AE92..GT,GTI 65G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03163 |
AE92..GT,GTI 5G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03128 |
AE92..GT,GTI 55G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03161 |
AE92,EE90 5G |
1 | ||
| 90942-03131 |
AE92..GT,GTI 70G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03022 |
AE92,EE90 40G,T=9.5 |
1 | ||
| 90942-03020 |
AE92,EE90 30G,T=10 |
1 | ||
| 90942-03017 |
AE92,EE90 20G,T=8 |
1 | ||
| 90942-03041 |
AE92,EE90 10G,T=7.5 |
1 | ||
| 90942-03031 |
AE92,EE90 80G,T=9.5 |
1 | ||
| 90942-03025 |
AE92,EE90 50G,T=9.5 |
1 | ||
| 90942-03029 |
AE92,EE90 70G,T=9.5 |
1 | ||
| 90942-03161 |
AE92,EE90 5G |
1 | ||
| 90942-03102 |
AE92,EE90 55G |
1 | ||
| 90942-03098 |
AE92,EE90 15G |
1 | ||
| 90942-03101 |
AE92,EE90 45G |
1 | ||
| 90942-03099 |
AE92,EE90 25G |
1 | ||
| 90942-03027 |
AE92,EE90 60G,T=9.5 |
1 | ||
| 90942-03109 |
AE92,EE90 75G |
1 | ||
| 90942-03100 |
AE92,EE90 35G |
1 | ||
| 90942-03108 |
AE92,EE90 65G |
1 | ||
| 90942-03123 |
AE92..GT 30G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03127 |
AE92..GT 50G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03133 |
AE92..GT 80G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03122 |
AE92..GT 25G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03121 |
AE92..GT 20G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03119 |
AE92..GT 10G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03128 |
AE92..GT 55G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03125 |
AE92..GT 40G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03017 |
AE92,EE90 20G,T=8 |
1 | ||
| 90942-03124 |
AE92..GT 35G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03132 |
AE92..GT 75G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03163 |
AE92..GT 5G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03131 |
AE92..GT 70G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03120 |
AE92..GT 15G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03025 |
AE92,EE90 50G,T=9.5 |
1 | ||
| 90942-03126 |
AE92..GT 45G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03022 |
AE92,EE90 40G,T=9.5 |
1 | ||
| 90942-03027 |
AE92,EE90 60G,T=9.5 |
1 | ||
| 90942-03020 |
AE92,EE90 30G,T=10 |
1 | ||
| 90942-03130 |
AE92..GT 65G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03041 |
AE92,EE90 10G,T=7.5 |
1 | ||
| 90942-03129 |
AE92..GT 60G,W(14INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03101 |
AE92,EE90 45G |
1 | ||
| 90942-03100 |
AE92,EE90 35G |
1 | ||
| 90942-03108 |
AE92,EE90 65G |
1 | ||
| 90942-03109 |
AE92,EE90 75G |
1 | ||
| 90942-03031 |
AE92,EE90 80G,T=9.5 |
1 | ||
| 90942-03029 |
AE92,EE90 70G,T=9.5 |
1 | ||
| 90942-03099 |
AE92,EE90 25G |
1 | ||
| 90942-03161 |
AE92,EE90 5G |
1 | ||
| 90942-03102 |
AE92,EE90 55G |
1 | ||
| 90942-03098 |
AE92,EE90 15G |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE92,EE90 |
5 | ||
| 90942-05009 |
AE92,EE90 |
5 | ||
| 90942-05009 |
AE92,EE90 |
5 | ||
| 42652 - TIRE | ||||
| 42652-12840 |
AE92..GT,GTI 185/60R14 82H |
4 | ||
| 42652-17120 |
AE92..GT,GTI 185/60R14 82H |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-12840 |
AE92..GT,GTI 185/60R14 82H |
1 | ||
| 42652-17120 |
AE92..GT,GTI 185/60R14 82H |
1 | ||
ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

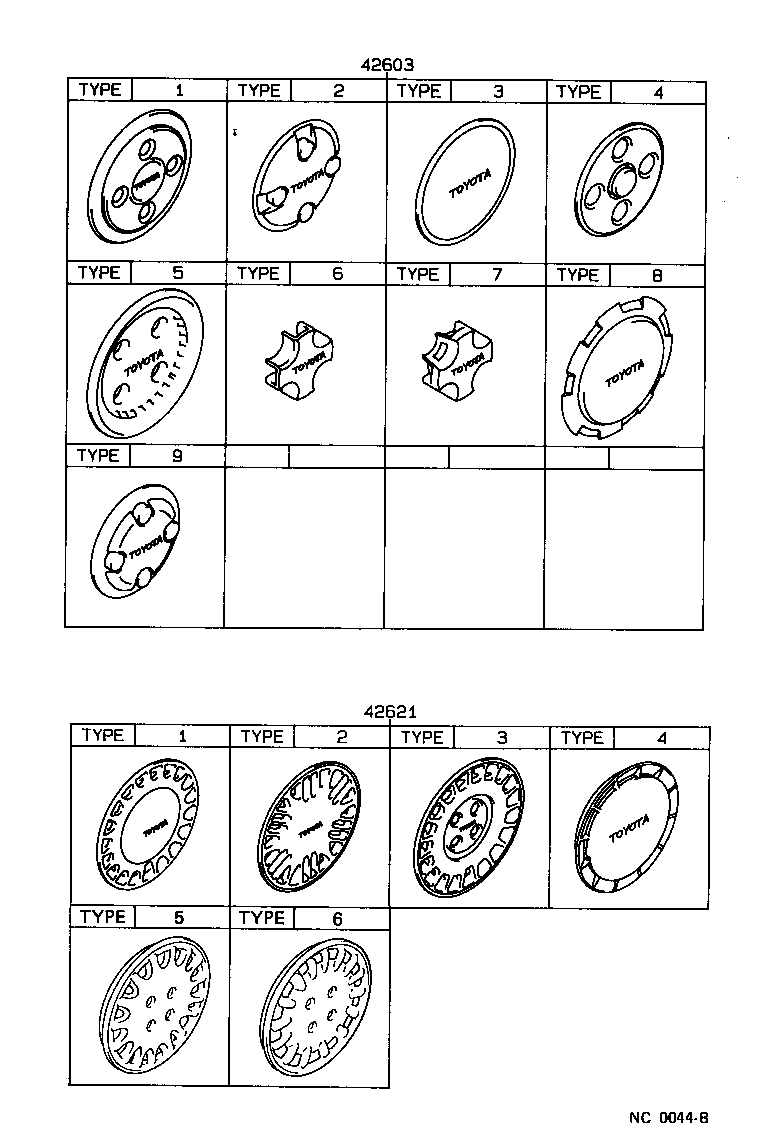

| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12400 |
AE92..GT,GTI |
4 | ||
| 42603-12440 |
AE92..GT W(ALUMINUM WHEEL) |
4 | ||
