AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb

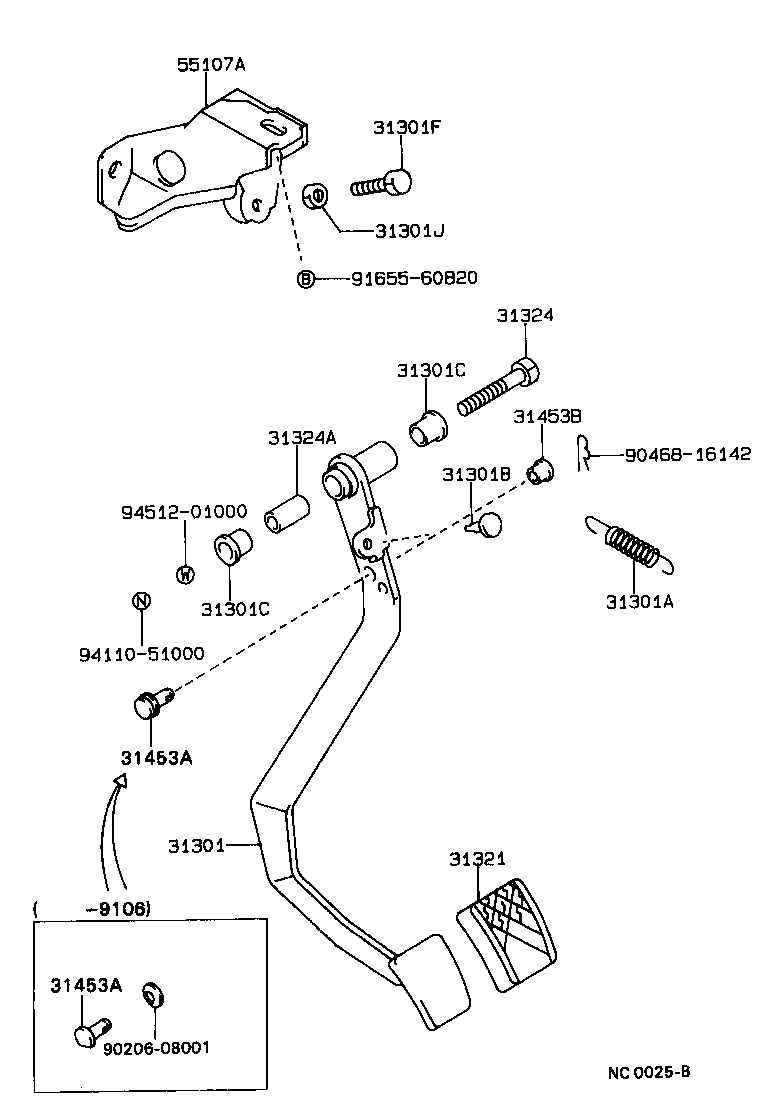

ILLUST NO. 1 OF 2(8705- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12330 |
AE92,EE90..RHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14002 |
AE92,EE90..RHD..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE92,EE90..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AE92,EE90..MTM |
2 | ||
| 90386-13192 |
AE92,EE90..MTM..SA |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AE92,EE90..MTM |
2 | ||
| 90386-13192 |
AE92,EE90..MTM..SA |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AE92,EE90..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
AE92,EE90..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
AE92,EE90..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
AE92,EE90..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AE92,EE90..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE92,EE90..MTM..(GEN,SA) L=23.5 |
1 | ||
| 90240-08006 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 90240-08006 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 47148-12010 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 90240-08006 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE92,EE90..MTM..(GEN,SA) L=23.5 |
1 | ||
| 90240-08006 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 90240-08006 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 47148-12010 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 90240-08006 |
AE92,EE90..MTM L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE92,EE90..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12110 |
AE92,EE90..RHD..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||

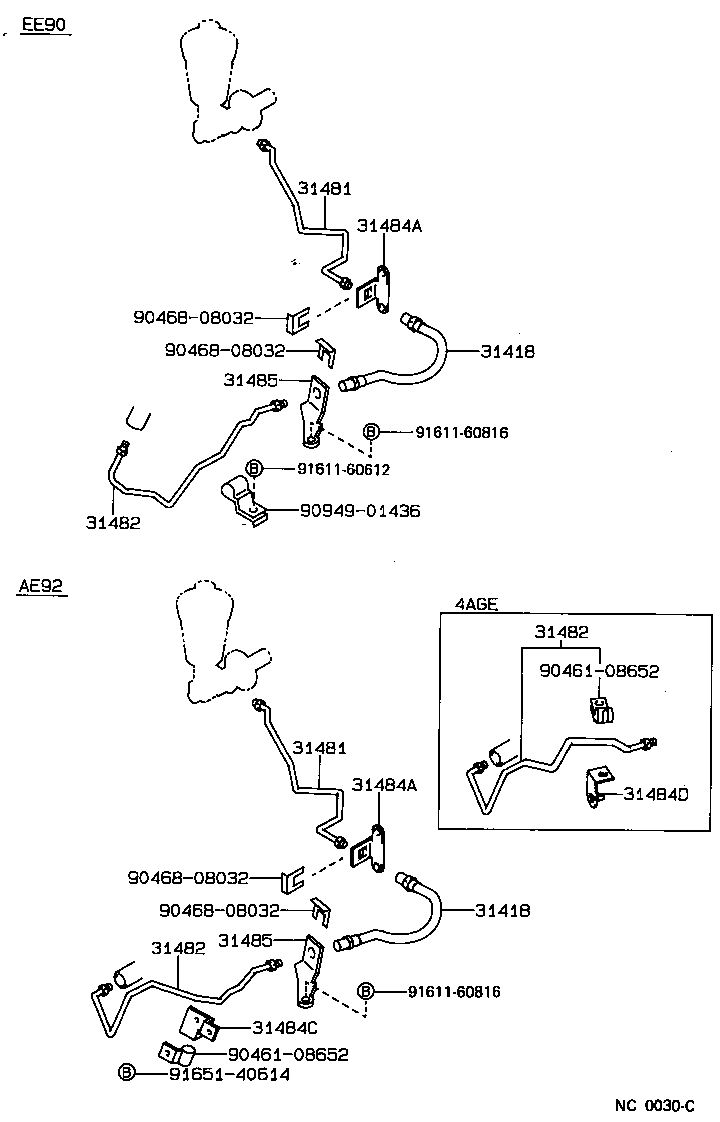

ILLUST NO. 2 OF 2(8705- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01041 |
AE92,EE90..RHD..MTM |
1 | ||
| 90931-01061 |
AE92,EE90..RHD..MTM |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90931-01041 |
AE92,EE90..RHD..MTM |
1 | ||
| 90931-01061 |
AE92,EE90..RHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12180 |
AE92,EE90..RHD..MTM |
1 | ||
| 31481-12200 |
AE92,EE90..RHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12180 |
AE92,EE90..RHD..MTM |
1 | ||
| 31481-12200 |
AE92,EE90..RHD..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-12080 |
AE92..GT,GTI |
1 | ||
| 31482-12081 |
AE92..GT,GTI |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-12080 |
AE92..GT,GTI |
1 | ||
| 31482-12081 |
AE92..GT,GTI |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-12080 |
AE92..GT,GTI |
1 | ||
| 31482-12081 |
AE92..GT,GTI |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12050 |
AE92,EE90..MTM |
1 | ||
| 31484-12160 |
AE92,EE90..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12050 |
AE92,EE90..MTM |
1 | ||
| 31484-12160 |
AE92,EE90..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12110 |
AE92..5F |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-12150 |
AE92..GT,GTI |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12130 |
AE92..GT,GTI |
1 | ||
| 31484-12210 |
AE92..GT,GTI |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-12130 |
AE92..GT,GTI |
1 | ||
| 31484-12210 |
AE92..GT,GTI |
1 | ||
| Common parts | ||||
| 90461-08652 | ||||
| 90468-08032 | ||||
| 90949-01436 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
