AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb

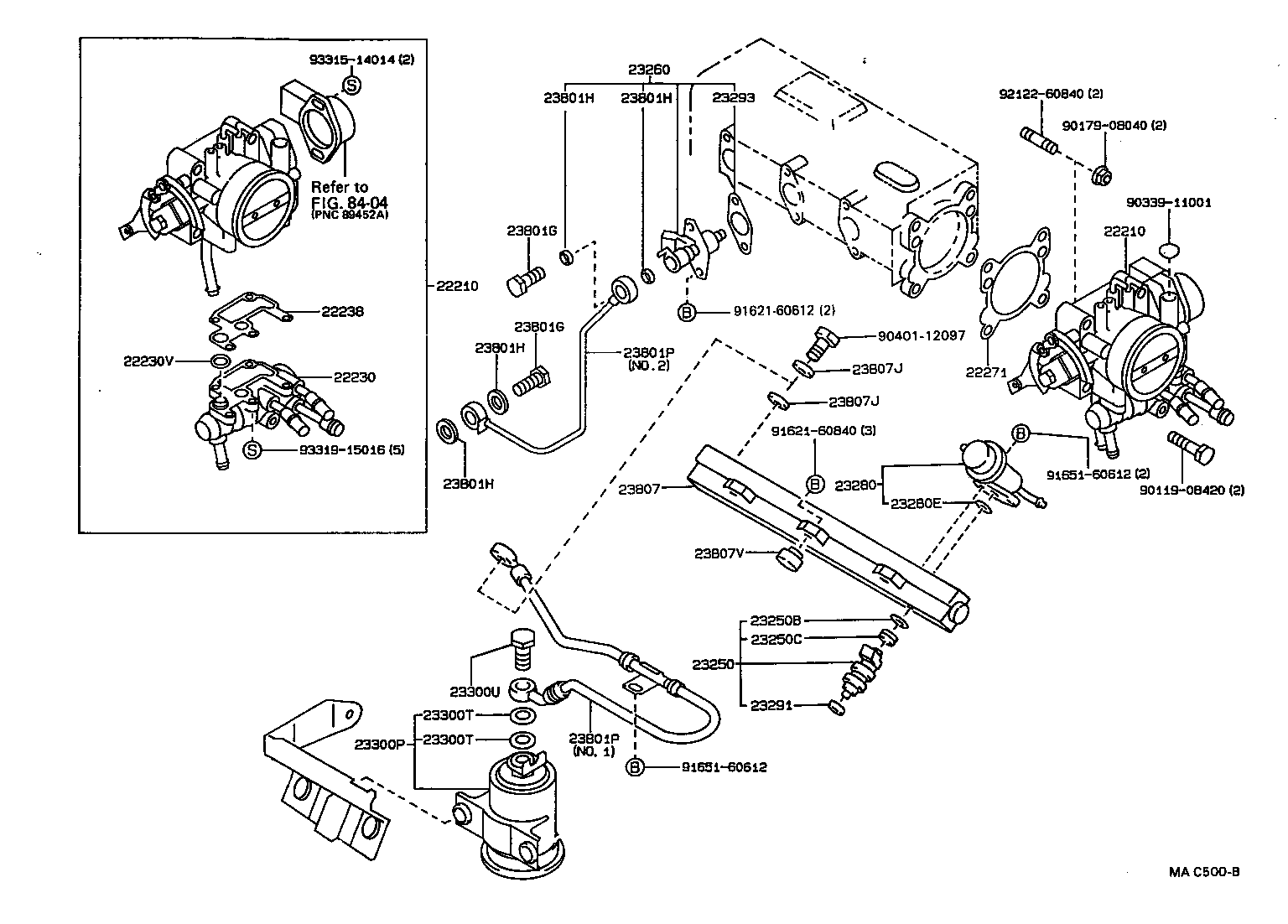

ILLUST NO. 1 OF 2(8705- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16190 |
4AGE..AE92 |
1 | ||
| 22210-16450 |
4AGE..AE92 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16190 |
4AGE..AE92 |
1 | ||
| 22210-16450 |
4AGE..AE92 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-16220 |
4AGE..AE92 |
1 | ||
| 22230-16110 |
4AGE..AE92 |
1 | ||
| 22230-16230 |
4AGE..AE92 |
1 | ||
| 22230V - RING, O(FOR AUXILIARY AIR VALVE) | ||||
| 96711-19009 |
4AGE..AE92 |
1 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22238-16020 |
4AGE..AE92 |
1 | ||
| 22238-16010 |
4AGE..AE92 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-16020 |
4AGE..AE92 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-16070 |
4AGE..AE92 |
4 | ||
| 23209-16110 |
4AGE..AE92 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4AGE..AE92 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4AGE..AE92 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-19095 |
4AGE..AE92 |
1 | ||
| 23260-19115 |
4AGE..AE92 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-16070 |
4AGE..AE92 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4AGE..AE92 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4AGE..AE92 |
4 | ||
| 23291-16020 |
4AGE..AE92 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-16010 |
4AGE..AE92 |
1 | ||
| 23293-16020 |
4AGE..AE92 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19155 |
4AGE..AE92 |
1 | ||
| 23300-19155 |
4AGE..AE92 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4AGE..AE92 |
2 | ||
| 90430-12005 |
4AGE..AE92 |
2 | ||
| 90430-12005 |
4AGE..AE92 |
2 | ||
| 90430-12005 |
4AGE..AE92..SA |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4AGE..AE92 |
2 | ||
| 90430-12005 |
4AGE..AE92 |
2 | ||
| 90430-12005 |
4AGE..AE92 |
2 | ||
| 90430-12005 |
4AGE..AE92..SA |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AGE..AE92 |
1 | ||
| 90401-12097 |
4AGE..AE92 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
4AGE..AE92 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
4AGE..AE92 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 90430-08012 |
4AGE..AE92 |
4 | ||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 90430-08012 |
4AGE..AE92 |
4 | ||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 90430-08012 |
4AGE..AE92 |
4 | ||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 90430-08012 |
4AGE..AE92 |
4 | ||
| 90430-08005 |
4AGE..AE92 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23902-16170 |
4AGE..AE92..SA NO.1 |
1 | ||
| 23902-16080 |
4AGE..AE92 NO.1 |
1 | ||
| 23901-16070 |
4AGE..AE92 NO.2 |
1 | ||
| 23902-16180 |
4AGE..AE92 NO.1 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23902-16170 |
4AGE..AE92..SA NO.1 |
1 | ||
| 23902-16080 |
4AGE..AE92 NO.1 |
1 | ||
| 23901-16070 |
4AGE..AE92 NO.2 |
1 | ||
| 23902-16180 |
4AGE..AE92 NO.1 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-16090 |
4AGE..AE92 |
1 | ||
| 23807-16060 |
4AGE..AE92 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90201-12109 |
4AGE..AE92 |
2 | ||
| 90430-12026 |
4AGE..AE92 |
2 | ||
| 90201-12109 |
4AGE..AE92..SA |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90201-12109 |
4AGE..AE92 |
2 | ||
| 90430-12026 |
4AGE..AE92 |
2 | ||
| 90201-12109 |
4AGE..AE92..SA |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08009 |
4AGE..AE92 |
3 | ||
| Common parts | ||||
| 90119-08420 | ||||
| 90179-08040 | ||||
| 90339-11001 | ||||
| 90401-12097 | ||||
| 91621-60612 | ||||
| 91621-60840 | ||||
| 91651-60612 | ||||
| 92122-60840 | ||||
| 93315-14014 | ||||
| 93319-15016 | ||||
| Linked diagrams | ||||
| 8404 | ||||

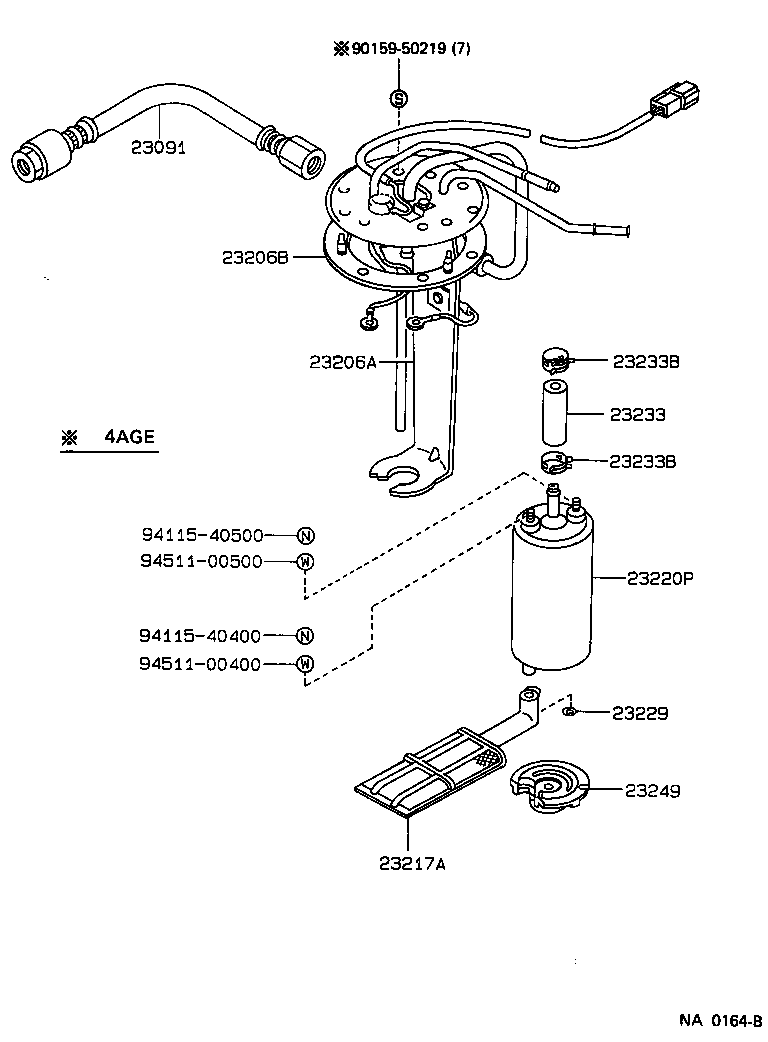

ILLUST NO. 2 OF 2(8705- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-16020 |
4AGE..AE92 |
1 | ||
| 23091-16020 |
4AGE..AE92 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-16280 |
4AGE..AE92 |
1 | ||
| 23206-16250 |
4AGE..AE92..SA |
1 | ||
| 23206-16250 |
4AGE..AE92..SA |
1 | ||
| 23206-16430 |
4AGE..AE92 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-12020 |
4AGE..AE92 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16010 |
4AGE..AE92..SA |
1 | ||
| 23217-16010 |
4AGE..AE92 NIPPONDENSO |
1 | ||
| 23217-16024 |
4AGE..AE92 AISAN |
1 | ||
| 23217-16010 |
4AGE..AE92..SA |
1 | ||
| 23217-16390 |
4AGE..AE92..SA |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16390 |
4AGE..AE92..SA |
1 | ||
| 23220-43070 |
4AGE..AE92 |
1 | ||
| 23220-43070 |
4AGE..AE92..SA |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AGE..AE92 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
4AGE..AE92..SA |
1 | ||
| 23239-16010 |
4AGE..AE92 |
1 | ||
| 23239-16010 |
4AGE..AE92..SA |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AGE..AE92..SA |
2 | ||
| 90467-13001 |
4AGE..AE92 |
2 | ||
| 90467-13001 |
4AGE..AE92..SA |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AGE..AE92..SA |
2 | ||
| 90467-13001 |
4AGE..AE92 |
2 | ||
| 90467-13001 |
4AGE..AE92..SA |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
4AGE..AE92 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
