Toyota Corolla cp/hb AE92 STARTER

AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8905- )4AGE

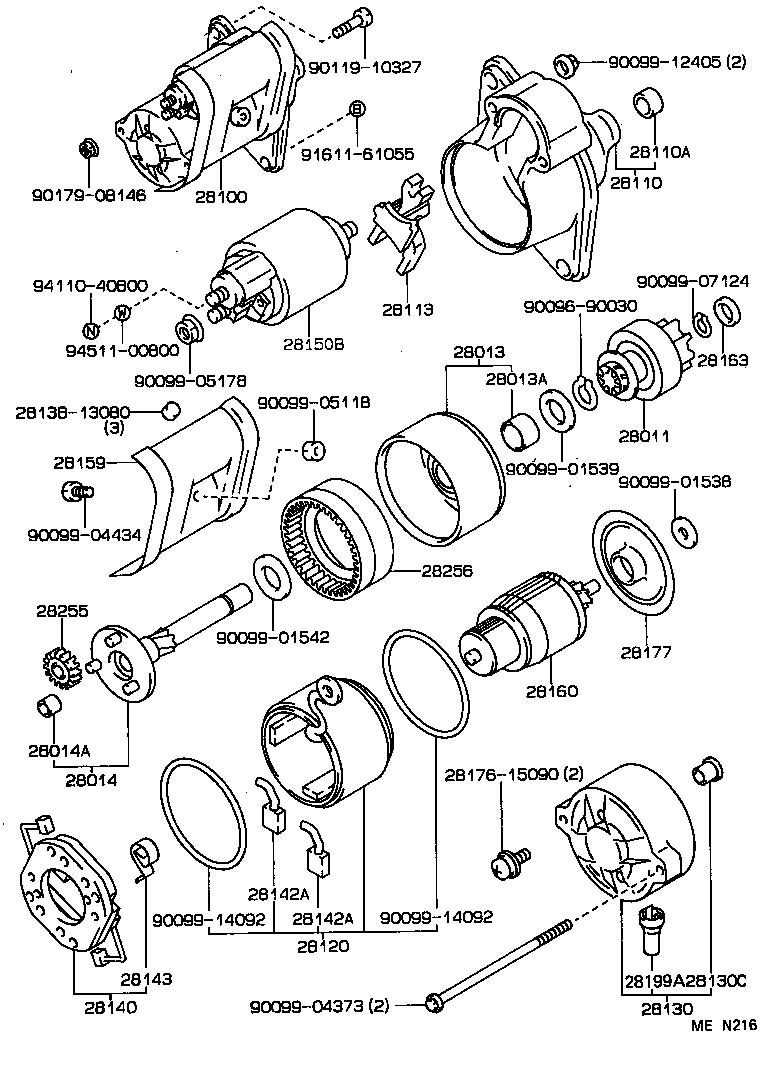

Click highlighted areas on diagram

12V 0.8KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	4A#..AE92..SA	05/1989 - 08/1993	1
28011-26042	4A#..AE92	05/1987 - 11/1987	1
28100 - STARTER ASSY
28100-15180	4AGE..AE92 12V 1.0KW	05/1987 - 05/1989	1
28100-15180	4AGE..AE92..SA 12V 1.0KW	05/1989 - 08/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-15130	4AGE..AE92	05/1987 - 05/1989	1
28110-15130	4AGE..AE92..SA	05/1989 - 08/1993	1
28120 - YOKE ASSY, STARTER
28120-26071	4A#..AE92	05/1987 - 11/1987	1
28120-26071	4A#..AE92..SA	05/1989 - 08/1993	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-13010	4AGE..AE92	05/1987 - 05/1989	1
28130-13010	4AGE..AE92..SA	05/1989 - 08/1993	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	4A#..AE92	05/1987 - 11/1987	1
28140-26070	4A#..AE92..SA	05/1989 - 08/1993	1
28143 - SPRING, STARTER BRUSH
90099-17112	4A#..AE92	05/1987 - 11/1987	4
90099-17112	4A#..AE92..SA	05/1989 - 08/1993	4
28150B - SWITCH ASSY, MAGNETIC
28150-13011	4AGE..AE92	05/1987 - 05/1989	1
28150-13011	4AGE..AE92..SA	05/1989 - 08/1993	1
28160 - ARMATURE ASSY, STARTER
28160-26070	4A#..AE92	05/1987 - 11/1987	1
28160-26070	4A#..AE92..SA	05/1989 - 08/1989	1
28160-26071	4A#..AE92..SA	08/1989 - 08/1993	1
28199A - PROTECTOR, DUST STARTER
28199-63050	4AGE..AE92	05/1987 - 05/1989	1
28199-63050	4AGE..AE92..SA	05/1989 - 08/1993	1
Common parts
28138-13080
28176-15090
90096-90030
90099-01538
90099-01539
90099-01542
90099-04373
90099-04434
90099-05118
90099-05178
90099-07124
90099-12405
90099-14092
90119-10327
90179-08146
91611-61055
94110-40800
94511-00800

(8705-8905)4AGE ; (8905- )4AGE..SA

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	4A#..AE92..SA	05/1989 - 08/1993	1
28011-26042	4A#..AE92	05/1987 - 11/1987	1
28100 - STARTER ASSY
28100-15180	4AGE..AE92 12V 1.0KW	05/1987 - 05/1989	1
28100-15180	4AGE..AE92..SA 12V 1.0KW	05/1989 - 08/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-15130	4AGE..AE92	05/1987 - 05/1989	1
28110-15130	4AGE..AE92..SA	05/1989 - 08/1993	1
28120 - YOKE ASSY, STARTER
28120-26071	4A#..AE92	05/1987 - 11/1987	1
28120-26071	4A#..AE92..SA	05/1989 - 08/1993	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-13010	4AGE..AE92	05/1987 - 05/1989	1
28130-13010	4AGE..AE92..SA	05/1989 - 08/1993	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	4A#..AE92	05/1987 - 11/1987	1
28140-26070	4A#..AE92..SA	05/1989 - 08/1993	1
28143 - SPRING, STARTER BRUSH
90099-17112	4A#..AE92	05/1987 - 11/1987	4
90099-17112	4A#..AE92..SA	05/1989 - 08/1993	4
28150B - SWITCH ASSY, MAGNETIC
28150-13011	4AGE..AE92	05/1987 - 05/1989	1
28150-13011	4AGE..AE92..SA	05/1989 - 08/1993	1
28160 - ARMATURE ASSY, STARTER
28160-26070	4A#..AE92	05/1987 - 11/1987	1
28160-26070	4A#..AE92..SA	05/1989 - 08/1989	1
28160-26071	4A#..AE92..SA	08/1989 - 08/1993	1
28160A - BEARING, STARTER ARMATURE
28253-45020	4A#..AE92 NO.1	05/1987 - 11/1987	1
90099-10113	4A#..AE92 NO.2	05/1987 - 11/1987	1
90099-10113	4A#..AE92..SA NO.2	05/1989 - 08/1993	1
28253-45020	4A#..AE92..SA NO.1	05/1989 - 08/1993	1
28160A - BEARING, STARTER ARMATURE
28253-45020	4A#..AE92 NO.1	05/1987 - 11/1987	1
90099-10113	4A#..AE92 NO.2	05/1987 - 11/1987	1
90099-10113	4A#..AE92..SA NO.2	05/1989 - 08/1993	1
28253-45020	4A#..AE92..SA NO.1	05/1989 - 08/1993	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	4A#..AE92	05/1987 - 11/1987	1
28165-26040	4A#..AE92..SA	05/1989 - 08/1993	1
28199A - PROTECTOR, DUST STARTER
28199-63050	4AGE..AE92	05/1987 - 05/1989	1
28199-63050	4AGE..AE92..SA	05/1989 - 08/1993	1
28228A - ROLLER, STARTER CLUTCH
28228-26040	4A#..AE92..SA	05/1989 - 08/1993	5
28228-26040	4A#..AE92	05/1987 - 11/1987	5
28229A - RETAINER, STARTER IDLE GEAR
28229-26040	4A#..AE92..SA	05/1989 - 08/1993	1
28229-26040	4A#..AE92	05/1987 - 11/1987	1
28252 - GEAR, STARTER IDLE
28254-45020	4A#..AE92	05/1987 - 11/1987	1
28254-45020	4A#..AE92..SA	05/1989 - 08/1993	1
Common parts
90091-20604
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90119-10327
90179-08146
91611-61055
94110-40800
94511-00800
