AE92R-AHMVFN (1988)
Toyota Corolla Cp/Hb
Production
Aug 1988
-
Aug 1993
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )4AGE

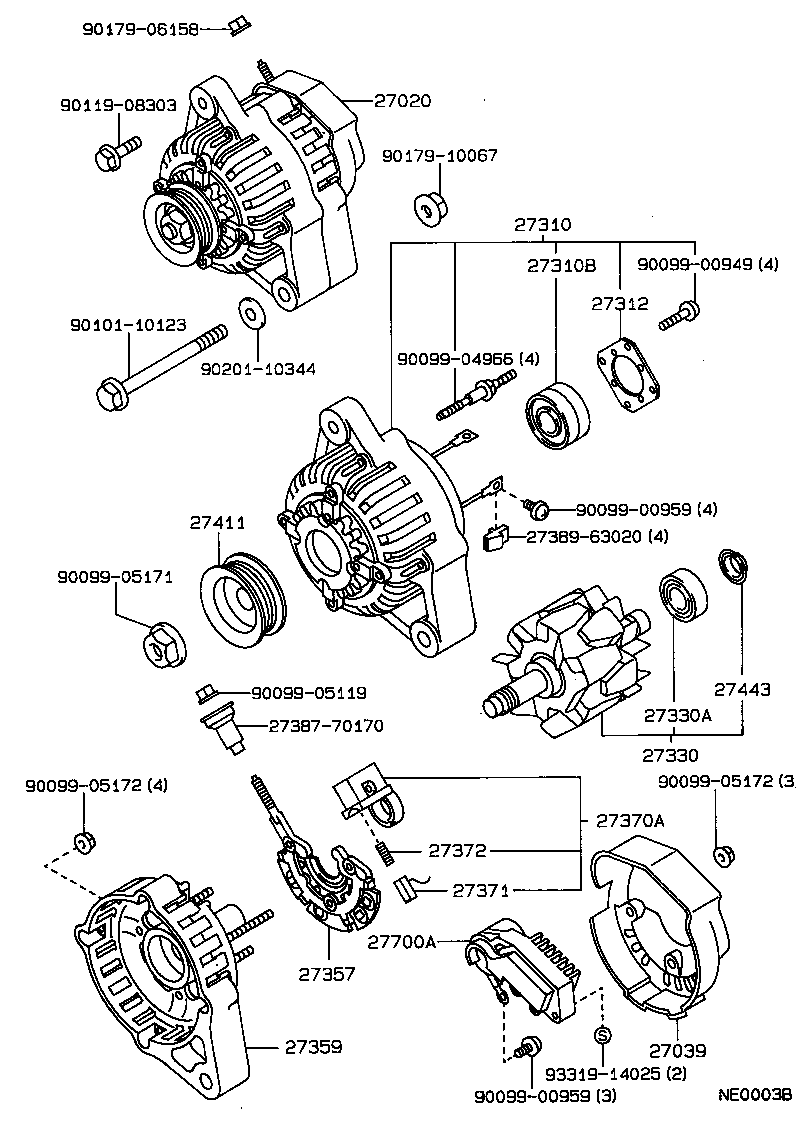

Click highlighted areas on diagram
12V 60A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16151 |
4AGE..AE92 12V 60A |
1 | ||
| 27060-16180 |
4AGE..AE92 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
4A#..AE92 |
1 | ||
| 27039-15170 |
4A#..AE92..GT,GTI,SR5 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16181 |
4AGE..AE92 |
1 | ||
| 27310-16103 |
4AGE..AE92 |
1 | ||
| 27310-16102 |
4AGE..AE92 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4A#..AE92 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4A#..AE92 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72100 |
4AGE..AE92 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4A#..AE92;2E..EE90..GCC |
1 | ||
| 90099-10140 |
4A#..AE92 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AGE..AE92;4AF..AE92..GCC,GEN |
1 | ||
| 27357-63020 |
4AGE..AE92 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
4AGE..AE92 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
4AGE,2E..AE92,EE90 |
1 | ||
| 27370-16011 |
4AGE,2E..AE92,EE90 |
1 | ||
| 27370-16011 |
4AGE,2E..AE92,EE90 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
4A#,2E..AE92,EE90 |
2 | ||
| 27371-63020 |
4A#,2E..AE92,EE90 |
2 | ||
| 27371-70300 |
4AF..AE92..GCC,GEN;4AGE,2E..AE92,EE90 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
4A#,2E..AE92,EE90..SA |
2 | ||
| 27372-72100 |
4A#,2E..AE92,EE90 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
4AGE..AE92 |
1 | ||
| 27411-16180 |
4AGE..AE92;4AF..AE92..GCC,GEN |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4A#,2E..AE92,EE90 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
4AGE..AE92 |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10123 | ||||
| 90119-08303 | ||||
| 90179-06158 | ||||
| 90179-10067 | ||||
| 90201-10344 | ||||
| 93319-14025 | ||||
