AE92R-AHMVFN (1988)

Toyota Corolla Cp/Hb

Production Aug 1988 - Aug 1993
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4A#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

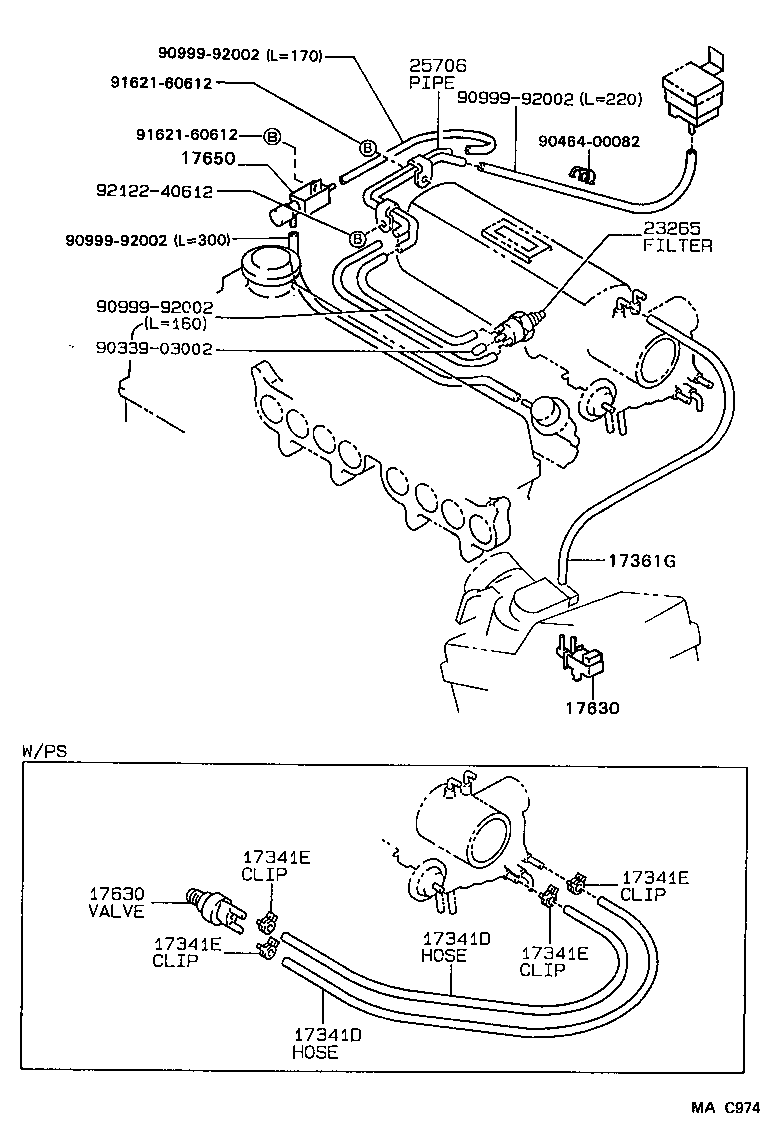

(8908- )4AGE..SA

Click highlighted areas on diagram

diagram 17341D 17341D 17341E 17341E 17341E 17341E 17361G 17630 17630 17650 23265 25706 9033903002 9046400082 9099992002 9099992002 9099992002 9099992002 9162160612 9162160612 9212240612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16110

4AGE..AE92..RHD

 2
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16110

4AGE..AE92..RHD

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17361G - TUBE, AIR(FOR IDLE-UP)
17361-16100

4AGE..AE92

 1
17630 - VALVE ASSY, AIR CONTROL
17630-16040

4AGE..AE92

 1
17630-16040

4AGE..AE92..SA

W(POWER STEERING)

 1
17630-16080

4AGE..AE92..SA

 1
17630 - VALVE ASSY, AIR CONTROL
17630-16040

4AGE..AE92

 1
17630-16040

4AGE..AE92..SA

W(POWER STEERING)

 1
17630-16080

4AGE..AE92..SA

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-16090

4AGE..AE92..SA

NO.1

 1
90910-12060

4AGE..AE92

 1
90910-12060

4AGE..AE92

NO.2

 1
23265 - FILTER, GAS, NO.1
90917-11027

4AGE..AE92

 1
90917-11027

4AGE..AE92

 1
90917-11027

4AGE..AE92

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16280

4AGE..AE92

 1
25706-16280

4AGE..AE92..SA

 1
Common parts
90339-03002
90464-00082
90999-92002
91621-60612
92122-40612

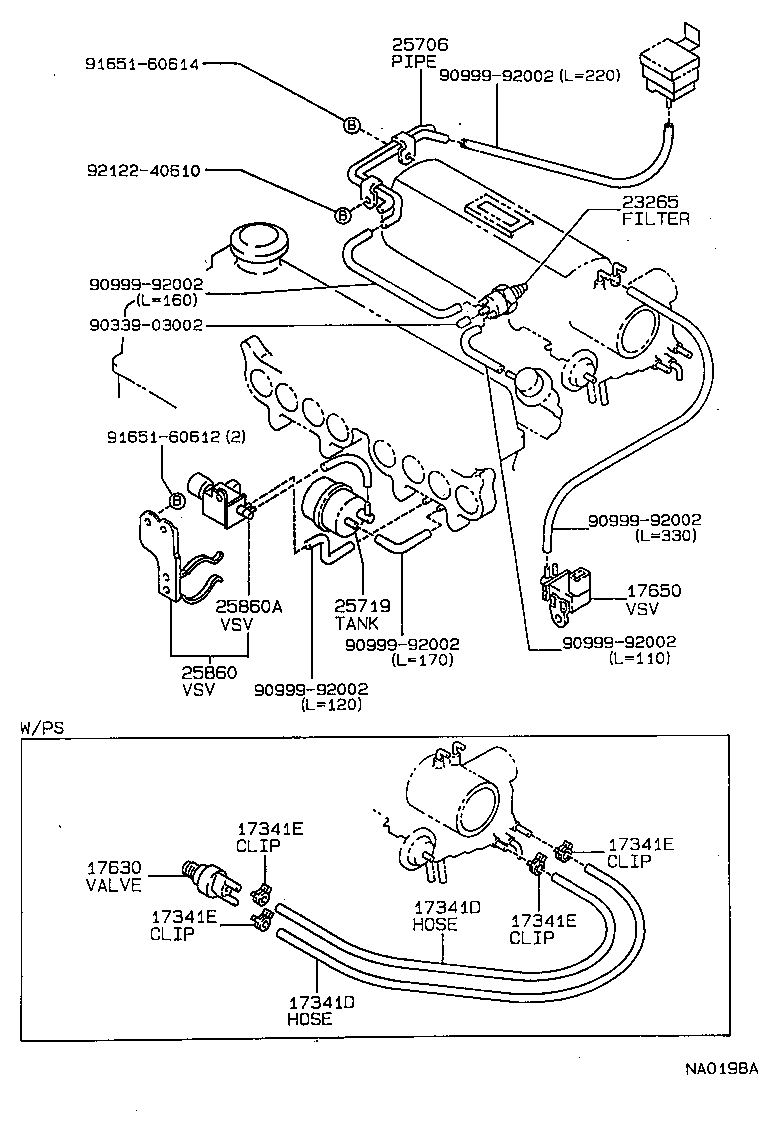

(8705-8908)4AGE

Click highlighted areas on diagram

diagram 17341D 17341D 17341E 17341E 17341E 17341E 17630 17650 23265 25706 25719 25860 25860A 9033903002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165160612 9165160614 9212240610
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16110

4AGE..AE92..RHD

 2
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16110

4AGE..AE92..RHD

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

4AGE..AE92

 4
17630 - VALVE ASSY, AIR CONTROL
17630-16040

4AGE..AE92

 1
17630-16040

4AGE..AE92..SA

W(POWER STEERING)

 1
17630-16080

4AGE..AE92..SA

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-16090

4AGE..AE92..SA

NO.1

 1
90910-12060

4AGE..AE92

 1
90910-12060

4AGE..AE92

NO.2

 1
23265 - FILTER, GAS, NO.1
90917-11027

4AGE..AE92

 1
90917-11027

4AGE..AE92

 1
90917-11027

4AGE..AE92

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16280

4AGE..AE92

 1
25706-16280

4AGE..AE92..SA

 1
25719 - TANK, VACUUM SURGE
25719-16020

4AGE..AE92

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16070

4AGE..AE92

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12052

4AGE..AE92

 1
Common parts
90339-03002
90999-92002
91651-60612
91651-60614
92122-40610
