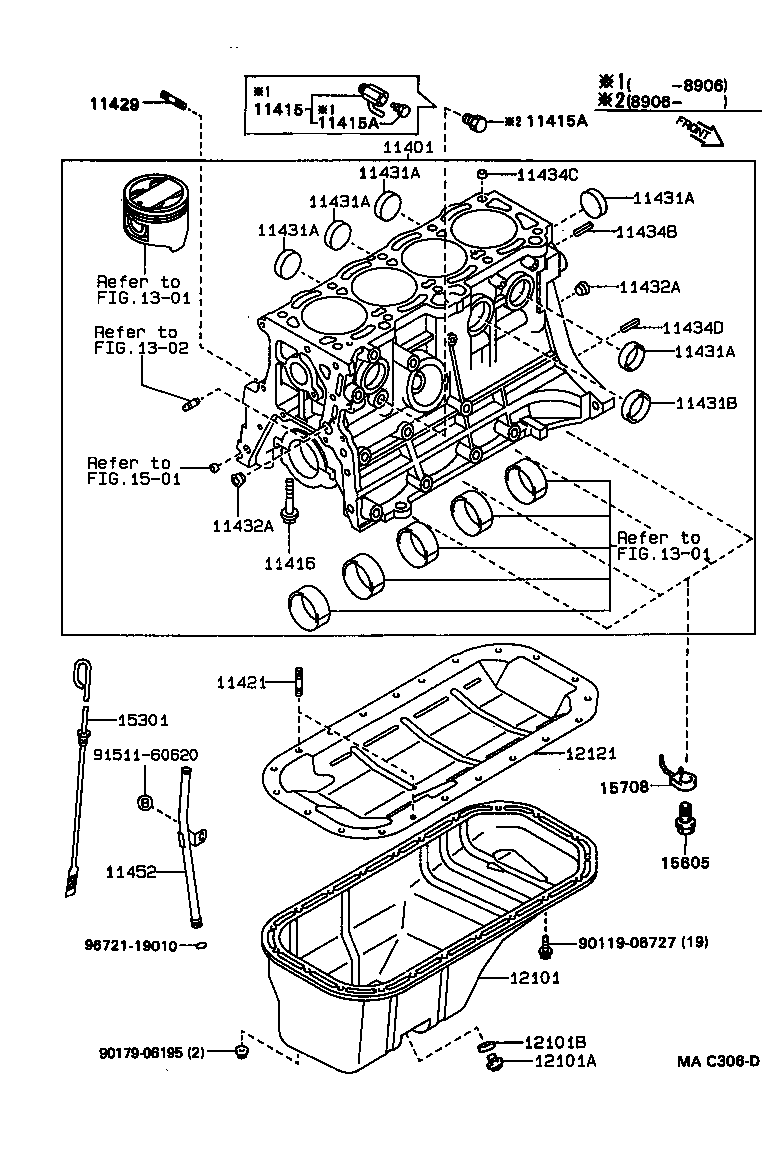

Toyota Corolla cp/hb AE92 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19475	4AGE..AE92	08/1989 - 01/1991	1
11401-19425	4AGE..AE92	05/1987 - 08/1989	1
11401-19476	4AGE..AE92	01/1991 - 08/1993	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09088	4A#..AE92	05/1987 - 03/1988	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52013	4A#..AE92	06/1989 - 08/1989	1
90345-52003	4A#..AE92	05/1990 - 08/1993	1
90910-09087	4A#..AE92	05/1987 - 03/1988	1
90345-52013	4A#..AE92	08/1989 - 02/1990	1
90345-52003	4AGE..AE92	02/1990 - 05/1990	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52013	4A#..AE92	06/1989 - 08/1989	1
90345-52003	4A#..AE92	05/1990 - 08/1993	1
90910-09087	4A#..AE92	05/1987 - 03/1988	1
90345-52013	4A#..AE92	08/1989 - 02/1990	1
90345-52003	4AGE..AE92	02/1990 - 05/1990	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10007	4A#..AE92	05/1987 - 08/1993	10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022	4A#..AE92	05/1987 - 08/1993	2
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-08170	4AGE..AE92	05/1987 - 08/1993	1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	4A#..AE92	05/1987 - 08/1993	6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	4A#..AE92	05/1987 - 08/1993	6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	4A#..AE92	05/1987 - 08/1993	6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	4A#..AE92	05/1987 - 08/1993	6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	4A#..AE92	05/1987 - 08/1993	6
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000	4A#..AE92	05/1987 - 08/1993	1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008	4A#..AE92	05/1987 - 08/1993	2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008	4A#..AE92	05/1987 - 08/1993	2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	4A#..AE92 L=22,OD=10	05/1987 - 08/1993	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-13017	4A#..AE92 L=12,OD=13	05/1987 - 08/1993	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	4A#..AE92 L=14,OD=6	05/1987 - 08/1993	2
11452 - GUIDE, OIL LEVEL GAGE
11452-16030	4AGE..AE92	06/1989 - 08/1993	1
11452-16010	4AGE..AE92	05/1987 - 06/1989	1
12101 - PAN SUB-ASSY, OIL
12101-15070	4A#..AE92	05/1987 - 05/1989	1
12101-15070	4A#..AE92..GEN,SA	11/1989 - 08/1993	1
12101-16080	4AGE..AE92	08/1989 - 11/1989	1
12101-16080	4AGE..AE92	05/1989 - 08/1989	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026	4A#..AE92	08/1989 - 08/1990	1
90341-12012	4A#..AE92	05/1987 - 12/1988	1
90341-12026	4A#..AE92	02/1991 - 08/1993	1
90341-12026	4A#..AE92	08/1990 - 02/1991	1
90341-12026	4A#..AE92	12/1988 - 08/1989	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019	4A#..AE92	05/1987 - 08/1989	1
90430-12027	4A#..AE92	08/1990 - 08/1993	1
90430-12019	4AGE..AE92	04/1990 - 05/1990	1
90430-12019	4A#..AE92	08/1989 - 04/1990	1
90430-12027	4A#..AE92	05/1990 - 07/1990	1
90430-12027	4A#..AE92	07/1990 - 08/1990	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12122-16011	4AGE..AE92	10/1989 - 08/1993	1
12122-16011	4AGE..AE92	05/1987 - 10/1989	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-16040	4AGE..AE92	05/1987 - 11/1987	1
15301-16060	4AGE..AE92	05/1989 - 08/1993	1
15605 - VALVE SUB-ASSY, OIL CHECK
15703-16010	4AGE..AE92	08/1989 - 08/1993	4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-16020	4AGE..AE92 NO.3	08/1989 - 08/1993	1
15708-16010	4AGE..AE92..SA NO.1,2,4	08/1989 - 08/1993	3
Common parts
90119-06727
90179-06195
91511-60620
96721-19010
Linked diagrams
1301
1302
1501

AE92R-AHMVFN (1988)

(8705- )4AGE
