AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
ILLUST NO. 1 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12370 |
AE92,EE90 |
1 | ||
| 88460-12370 |
AE92,EE90..GEN,SA |
1 | ||
| 88460-12370 |
AE92..RHD..GTI;AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-12040 |
AE92,EE90 |
1 | ||
| 88463-12041 |
AE92..XL..GEN |
1 | ||
| 88463-12041 |
AE92..XL |
1 | ||
| 88463-12041 |
AE92,EE90 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12080 |
AE92;EE90..RHD;EE90..GCC |
2 | ||
| 88467-12081 |
AE92..XL |
2 | ||
| 88467-12080 |
AE92,EE90 |
2 | ||
| 88467-12081 |
AE92..XL..GEN |
2 | ||
| 88467-12081 |
AE92,EE90 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-12020 |
AE92,EE90 L=167 |
1 | ||
| 88471-16040 |
AE92,EE90 L=187 |
1 | ||
| 88471-16040 |
AE92..RHD..GTI;AE92,EE90..(GL,STD,XL)..(GCC,GEN) L=187 |
1 | ||
| 88471-16040 |
AE92,EE90..GEN,SA L=187 |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
AE92,EE90 |
1 | ||
| 88475-12020 |
AE92,EE90..RHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12040 |
AE92..XL..GEN |
1 | ||
| 88473-12040 |
AE92,EE90 |
1 | ||
| 88473-12070 |
AE92..RHD..GTI;AE92,EE90..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12340 |
AE92,EE90 |
1 | ||
| 88726-12340 |
AE92..RHD..GTI;AE92,EE90..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 88726-12340 |
AE92,EE90..GEN,SA |
1 | ||
| 88726-12240 |
AE92,EE90 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-12280 |
AE92,EE90..RHD |
1 | ||
| Common parts | ||||
| 88578-12120 | ||||
| 88688-12590 | ||||
| 88688-12600 | ||||
| 88688-12680 | ||||
| 88688-12770 | ||||
| 88718-1A170 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90119-06033 | ||||
| 90119-06336 | ||||
| 90119-06440 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||

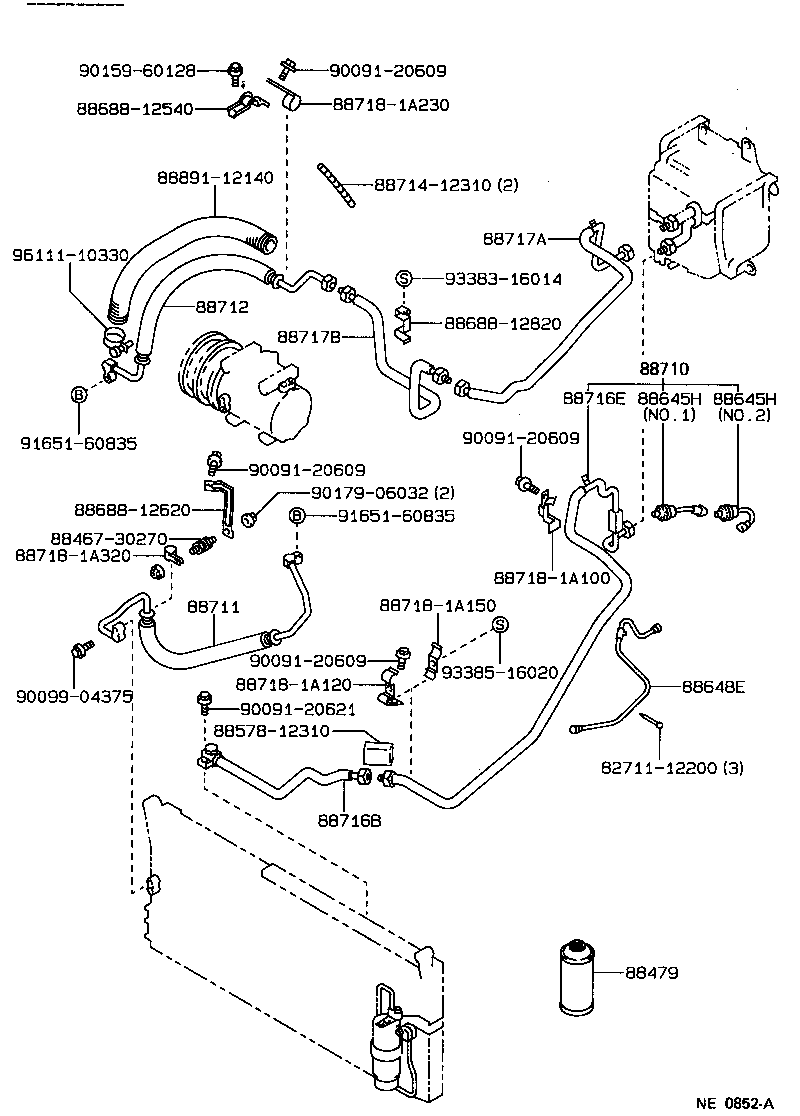

ILLUST NO. 3 OF 3(8705- )AE92..RHD..STD,XL
MAKER OPT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
AE92,EE90 |
1 | ||
| 88475-12020 |
AE92,EE90..RHD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AE92..XL;EE90..LHD..GL NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-10020 |
AE92,EE90..GCC,GEN NO.1 |
1 | ||
| 88645-12030 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL..GEN NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL..GEN NO.1 |
1 | ||
| 88645-10020 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88645-32020 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..RHD..XL..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AE92..XL;EE90..LHD..GL NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-10020 |
AE92,EE90..GCC,GEN NO.1 |
1 | ||
| 88645-12030 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL..GEN NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL..GEN NO.1 |
1 | ||
| 88645-10020 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88645-32020 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..RHD..XL..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-12040 |
AE92..RHD..(STD,XL) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12040 |
AE92..RHD..(STD,XL) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88704-12180 |
AE92,EE90..RHD |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-12020 |
AE92,EE90..RHD..GEN |
1 | ||
| 88706-12040 |
AE92..RHD..XL DEALER OPT |
1 | ||
| 88706-12040 |
AE92..RHD..XL..GEN DEALER OPT |
1 | ||
| 88706-12040 |
AE92,EE90..RHD..GEN |
1 | ||
| 88706-12040 |
AE92..RHD..XL DEALER OPT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12430 |
AE92..RHD..XL |
1 | ||
| 88711-12430 |
AE92..RHD..XL..GEN |
1 | ||
| 88711-12550 |
AE92..RHD..XL DEALER OPT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12620 |
AE92..RHD..(STD,XL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-12280 |
AE92,EE90..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-12260 |
AE92,EE90..RHD |
1 | ||
| Common parts | ||||
| 88718-1A100 | ||||
| 88718-1A120 | ||||
| 88718-1A150 | ||||
| 91651-40614 | ||||
| 91651-60625 | ||||
| 91651-60835 | ||||
| 91651-60850 | ||||
| 91651-60860 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE92,EE90..GEN,SA |
1 | ||
| 88453-12050 |
AE92,EE90 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE92,EE90..GEN,SA |
1 | ||
| 88453-12050 |
AE92,EE90 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE92,EE90..GEN,SA |
1 | ||
| 88454-12100 |
AE92,EE90 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE92,EE90..GEN,SA |
1 | ||
| 88454-12100 |
AE92,EE90 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE92,EE90 NO.1 |
2 | ||
| 88467-14070 |
AE92,EE90..GCC,GEN NO.1 |
4 | ||
| 88467-20040 |
AE92,EE90..GCC,GEN NO.2 |
4 | ||
| 88467-20040 |
AE92,EE90 NO.2 |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE92,EE90 |
1 | ||
| 88550-12120 |
AE92,EE90..GEN,SA |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE92,EE90 |
1 | ||
| 88550-12120 |
AE92,EE90..GEN,SA |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
AE92..XL..GEN DEALER OPT |
1 | ||
| 88590-12170 |
AE92,EE90..GEN,SA |
1 | ||
| 88590-12170 |
AE92,EE90 |
1 | ||
| 88590-12150 |
AE92,EE90..GEN MAKER OPT |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
AE92..XL..GEN DEALER OPT |
1 | ||
| 88590-12170 |
AE92,EE90..GEN,SA |
1 | ||
| 88590-12170 |
AE92,EE90 |
1 | ||
| 88590-12150 |
AE92,EE90..GEN MAKER OPT |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12030 |
AE92;EE90..RHD;EE90..3FC..GCC |
1 | ||
| 88723-12020 |
AE92,EE90 |
1 | ||
| 88723-12030 |
AE92,EE90 |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88688-12580 | ||||
| 88688-12780 | ||||
| 88892-12190 | ||||
| 90099-04376 | ||||
| 90119-06336 | ||||
| 90119-06440 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
ILLUST NO. 3 OF 3(8705- )AE92..RHD..STD,XL
DEALER OPT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE92,EE90..GCC,GEN 400G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AE92..XL;EE90..LHD..GL NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-10020 |
AE92,EE90..GCC,GEN NO.1 |
1 | ||
| 88645-12030 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL..GEN NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL..GEN NO.1 |
1 | ||
| 88645-10020 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88645-32020 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..RHD..XL..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AE92..XL;EE90..LHD..GL NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-12050 |
AE92..RHD..XL NO.1 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-10020 |
AE92,EE90..GCC,GEN NO.1 |
1 | ||
| 88645-12030 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL..GEN NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..GCC,GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..XL NO.2 |
1 | ||
| 88645-16050 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92..RHD..XL..GEN NO.1 |
1 | ||
| 88645-10020 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88645-32020 |
AE92,EE90..RHD..GEN NO.2 |
1 | ||
| 88645-32020 |
AE92..RHD..XL..GEN NO.2 |
1 | ||
| 88645-12050 |
AE92,EE90..RHD..GEN NO.1 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-12410 |
AE92,EE90..RHD..GEN |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-12020 |
AE92,EE90..RHD..GEN |
1 | ||
| 88706-12040 |
AE92..RHD..XL DEALER OPT |
1 | ||
| 88706-12040 |
AE92..RHD..XL..GEN DEALER OPT |
1 | ||
| 88706-12040 |
AE92,EE90..RHD..GEN |
1 | ||
| 88706-12040 |
AE92..RHD..XL DEALER OPT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12430 |
AE92..RHD..XL |
1 | ||
| 88711-12430 |
AE92..RHD..XL..GEN |
1 | ||
| 88711-12550 |
AE92..RHD..XL DEALER OPT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12620 |
AE92..RHD..(STD,XL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-12280 |
AE92,EE90..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-12260 |
AE92,EE90..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12400 |
AE92,EE90..RHD..GEN |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12490 |
AE92,EE90..RHD..GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-30270 | ||||
| 88578-12310 | ||||
| 88688-12540 | ||||
| 88688-12620 | ||||
| 88688-12820 | ||||
| 88714-12310 | ||||
| 88718-1A100 | ||||
| 88718-1A120 | ||||
| 88718-1A150 | ||||
| 88718-1A230 | ||||
| 88718-1A320 | ||||
| 88891-12140 | ||||
| 90091-20609 | ||||
| 90091-20621 | ||||
| 90099-04375 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93383-16014 | ||||
| 93385-16020 | ||||
| 96111-10330 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
