AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
Production
May 1987
-
Jun 1991
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-12130 |
AE92,EE90 |
4 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-12130 |
AE92,EE90 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12270 |
AE92..XL |
1 | ||
| 55906-12270 |
AE92..RHD..XL..GEN |
1 | ||
| 55906-12310 |
AE92..RHD..XL..GEN |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12290 |
AE92..RHD..XL..GEN |
1 | ||
| 55907-12340 |
AE92..RHD..XL..GEN |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12240 |
AE92..RHD..XL..GEN |
1 | ||
| 55908-12210 |
AE92..RHD..XL..GEN |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12210 |
AE92..XL..GEN |
1 | ||
| 55909-12230 |
AE92..XL..GEN |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12500 |
AE92..RHD..XL..GEN |
1 | ||
| 55910-12501 |
AE92..RHD..XL..GEN |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE92..XL |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE92..XL |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE92..XL |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE92..XL |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| 55933-10010 |
AE92,EE90 |
4 | ||
| Common parts | ||||
| 55933-12020 | ||||
| 55939-16010 | ||||
| 82711-14780 | ||||
| 90167-50020 | ||||
| 90480-13020 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

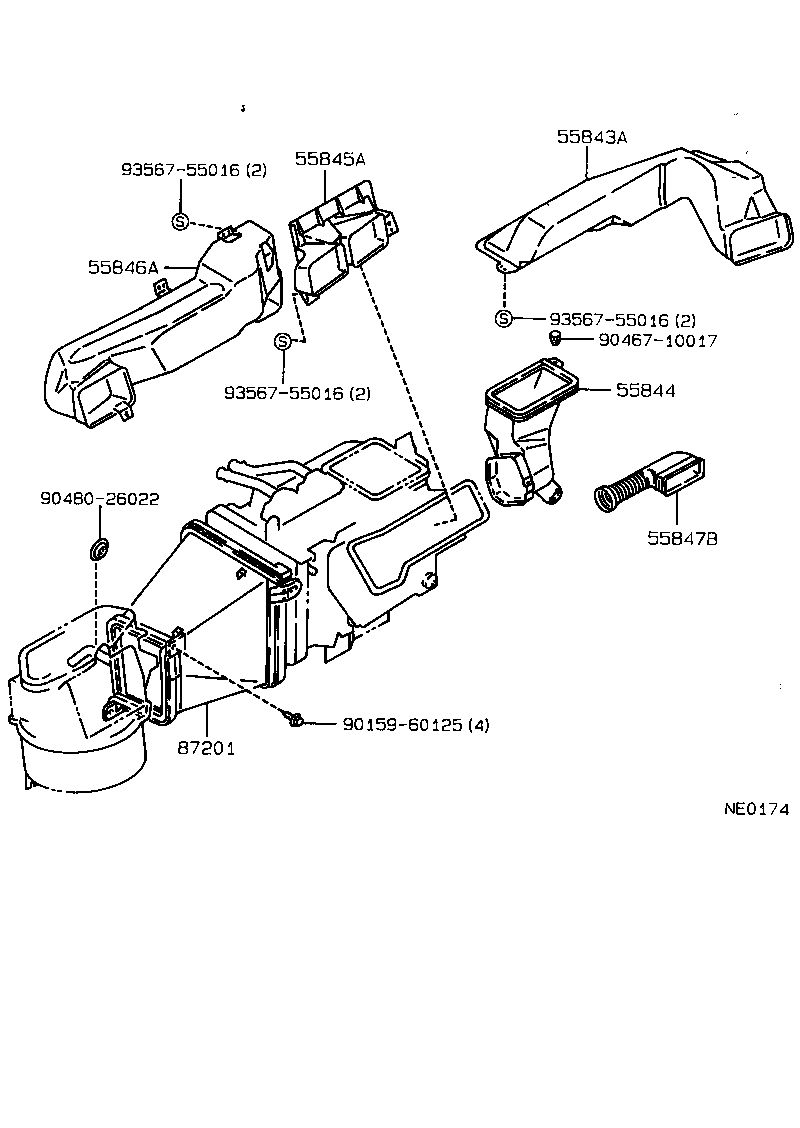

ILLUST NO. 2 OF 2(8705- )AE92..RHD..XL..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12190 |
AE92..RHD..XL..GEN |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12250 |
AE92..RHD..XL..GEN |
1 | ||
| 55844-12270 |
AE92..RHD..XL..GEN W(AIR CONDITIONER) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12130 |
AE92..RHD..XL..GEN |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12130 |
AE92..RHD..XL..GEN |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-12071 |
AE92,EE90..GCC,GEN |
1 | ||
| 55847-12070 |
AE92,EE90..GCC,GEN |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12120 |
AE92,EE90..RHD..GEN |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90467-10017 | ||||
| 90480-26022 | ||||
| 93567-55016 | ||||
