AE92R-ACMDU (1987)
Toyota Corolla Cp/Hb
ILLUST NO. 1 OF 5(8705- )AE92..SR5,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE92,EE90..3FC,4F,5F |
1 | ||
| 82616-12010 |
AE92,EE90 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE92,EE90 LWR |
1 | ||
| 82661-12140 |
AE92,EE90 UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE92,EE90 LWR |
1 | ||
| 82661-12140 |
AE92,EE90 UPR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE92..GT;AE92..GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE92..XL..GEN UPR |
1 | ||
| 82672-12070 |
AE92,EE90 LWR |
1 | ||
| 82672-12070 |
AE92,EE90..3FC,4F,5F LWR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE92..XL..GEN UPR |
1 | ||
| 82672-12070 |
AE92,EE90 LWR |
1 | ||
| 82672-12070 |
AE92,EE90..3FC,4F,5F LWR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE92,EE90..GL,SR5,STD,XL |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
AE92..STD,XL |
1 | ||
| 83530-30050 |
AE92..SR5,STD,XL |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE92,EE90..MTM..(GL,SR5,STD,XL) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE92,EE90 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE92,EE90 HEAD |
1 | ||
| 90987-02004 |
AE92,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE92,EE90 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE92,EE90 NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92,EE90 MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE92,EE90 |
1 | ||
| 88630-32010 |
AE92,EE90..GEN,SA |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE92,EE90..GEN,SA |
2 | ||
| 90987-02004 |
AE92,EE90 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE92,EE90..GEN,SA |
2 | ||
| 90987-02004 |
AE92,EE90 |
2 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE92 |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90430-18007 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||

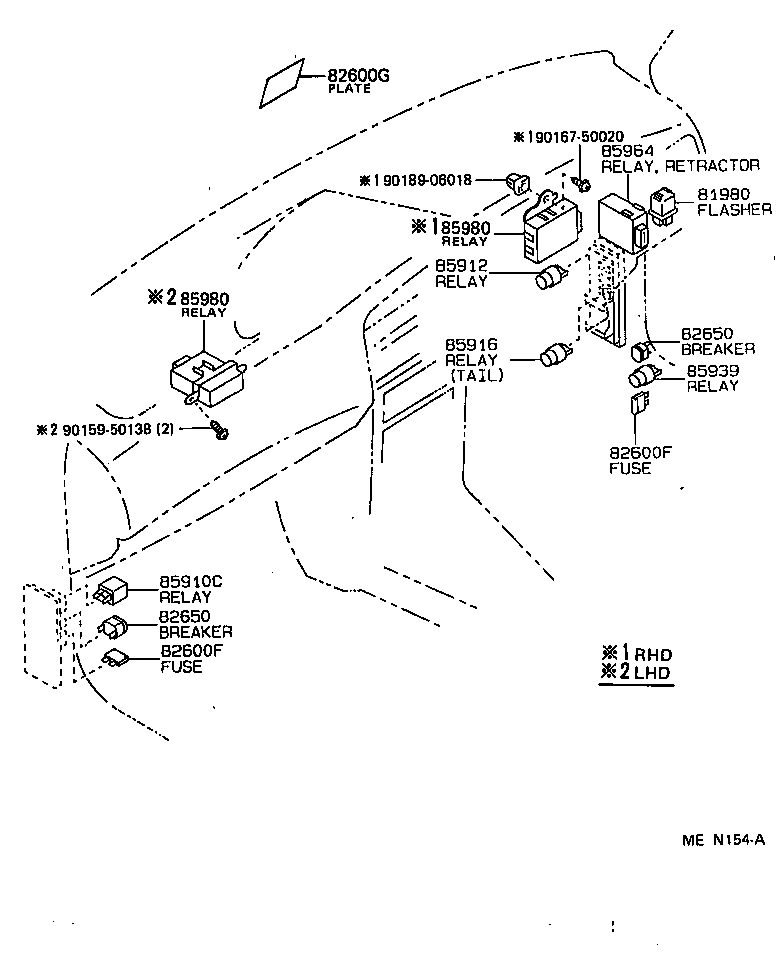

ILLUST NO. 3 OF 5(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE92,EE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-09003 |
AE92,EE90 15A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-07011 |
AE92,EE90 30A,GREEN |
1 | ||
| 90982-09005 |
AE92,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,EE90 10A |
1 | ||
| 90982-09004 |
AE92,EE90 20A,YELLOW |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92,EE90 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92,EE90 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE92,EE90 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE92,EE90 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE92,EE90 HEAD |
1 | ||
| 90987-02004 |
AE92,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-17010 |
AE92..XL..GEN |
1 | ||
| 85964-20020 |
AE92..XL..GEN |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12090 |
AE92..RHD..XL..GEN |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12090 |
AE92..RHD..XL..GEN |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90167-50020 | ||||
| 90189-06018 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80072 |
AE92..XL..GEN |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92,EE90..GL,GT,SR5,STD,XL |
1 | ||
| 83361-32020 |
AE92,EE90 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12070 |
AE92..XL..GEN |
2 | ||
| 84231-24010 |
AE92..XL..GEN |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-12010 |
AE92..XL..GEN RH |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-12010 |
AE92..XL..GEN RH |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE92,EE90 |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-32010 |
AE92..XL..GEN |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
EE90..GL;AE92..GEN |
1 | ||
| 84870-20050 |
AE92..GEN;AE92,EE90..GL,GT |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12090 |
AE92..XL..GEN |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12090 |
AE92..XL..GEN |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12020 |
AE92..XL..GEN |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
ILLUST NO. 5 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
AE92..XL..GEN |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||

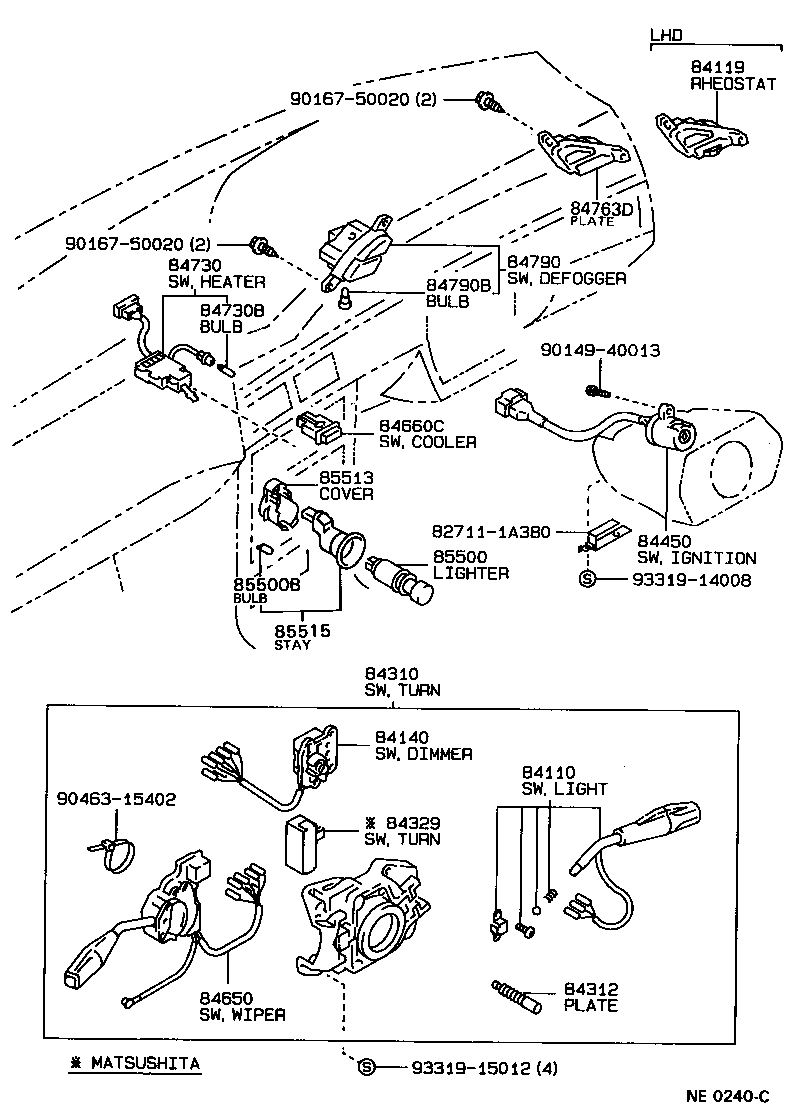

ILLUST NO. 2 OF 5(8705- )AE92..XL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19885 |
AE92..RHD..XL..GEN TOKAIRIKA |
1 | ||
| 84112-19895 |
AE92..RHD..XL..GEN MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12220 |
AE92,EE90..RHD TOKAIRIKA |
1 | ||
| 84140-12210 |
AE92,EE90..RHD MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A300 |
AE92..RHD..XL..GEN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92,EE90 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE92,EE90..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE92,EE90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12450 |
AE92..RHD..XL;EE90..RHD..GL MATSUSHITA |
1 | ||
| 84652-12460 |
AE92..RHD..XL;EE90..RHD..GL TOKAIRIKA |
1 | ||
| 84652-12450 |
AE92..RHD..XL..GEN MATSUSHITA |
1 | ||
| 84652-12460 |
AE92..RHD..XL..GEN TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE92,EE90..RHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE92..RHD..XL W(AIR CONDITIONER) |
1 | ||
| 84732-12230 |
AE92..RHD..XL..GEN W(AIR CONDITIONER) |
1 | ||
| 84732-12240 |
EE90..SA;AE92..RHD..(2D,5D) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92,EE90 14V 1.4W |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-12050 |
AE92..RHD..XL..GEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12200 |
AE92..RHD..XL..GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10090 |
AE92..XL..GEN 12V 1.8W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE92..XL..GEN |
1 | ||
| 85513-12010 |
AE92,EE90 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12021 |
AE92..RHD..XL..GEN |
1 | ||
| 85515-12020 |
AE92..RHD..XL |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
